Front Abs Wheel-Speed Sensor Removal/Installation

WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Remove the mud guard.
Remove in the order indicated in the table.
Install in the reverse order of removal.

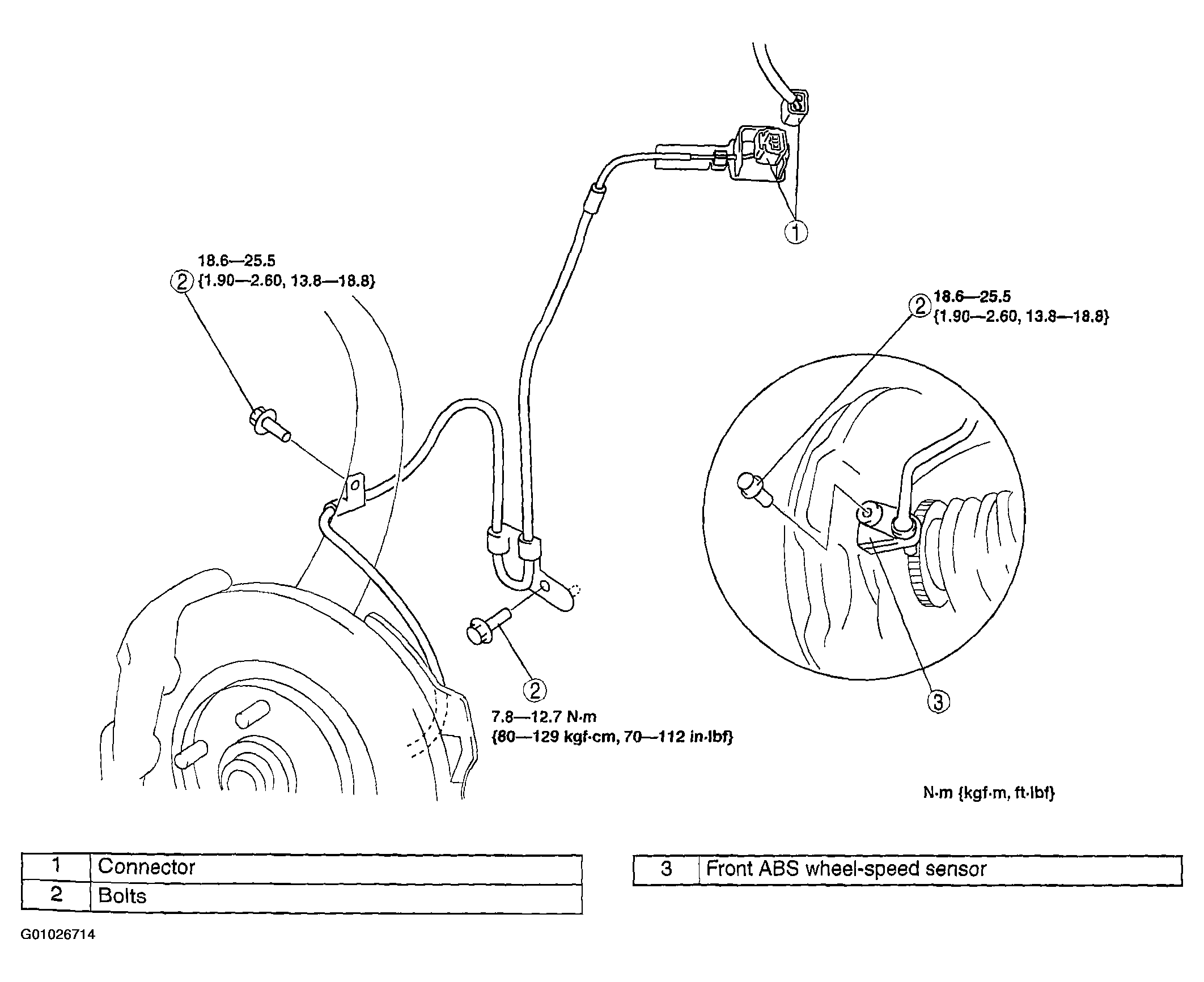

Fig 1: Removing/Installing Front ABS Wheel-Speed Sensor
Courtesy of MAZDA MOTORS CORP.
