Removal and Installation

WARNING: This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

Remove the wheel and tire. Refer to WHEEL AND TIRE .

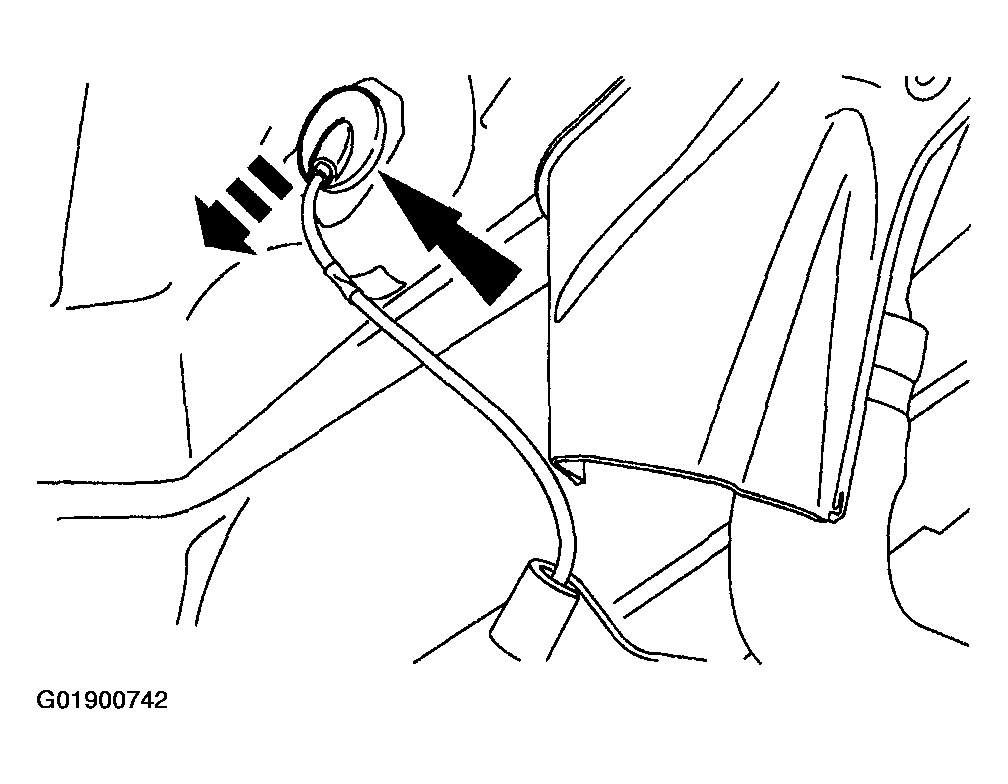

Fig 1: Detach Grommet From Body And Pull Connector Through Hole - Rear Sensor
Courtesy of MAZDA MOTORS CORP.
Detach the grommet from the body and pull the connector through the hole.

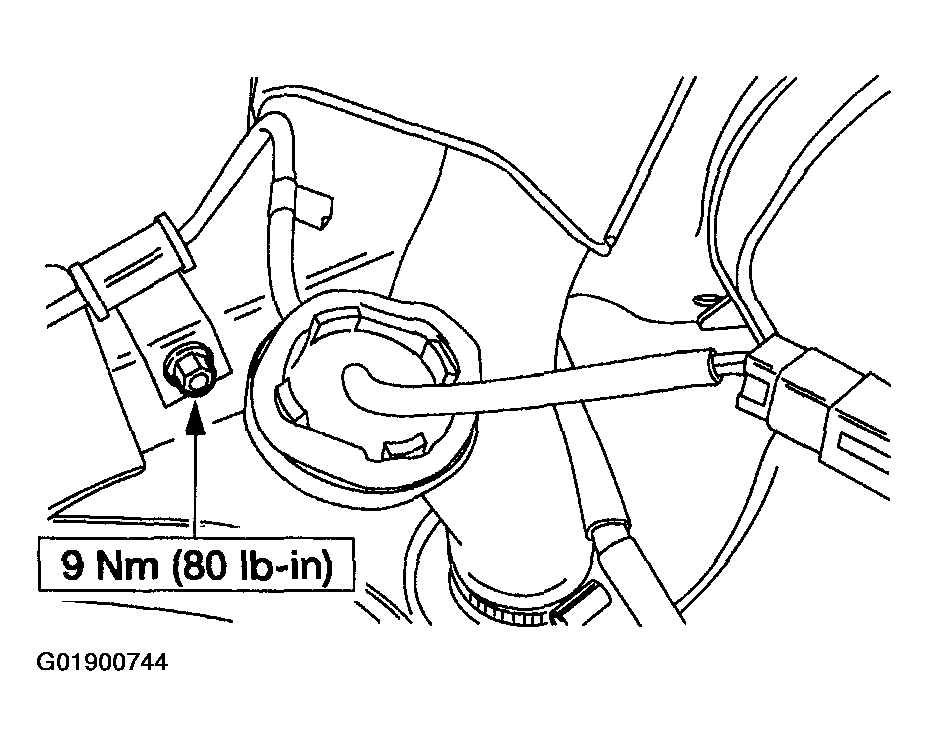

Fig 2: Disconnecting Sensor Wiring - Rear Sensor
Courtesy of MAZDA MOTORS CORP.
Disconnect the sensor wiring.

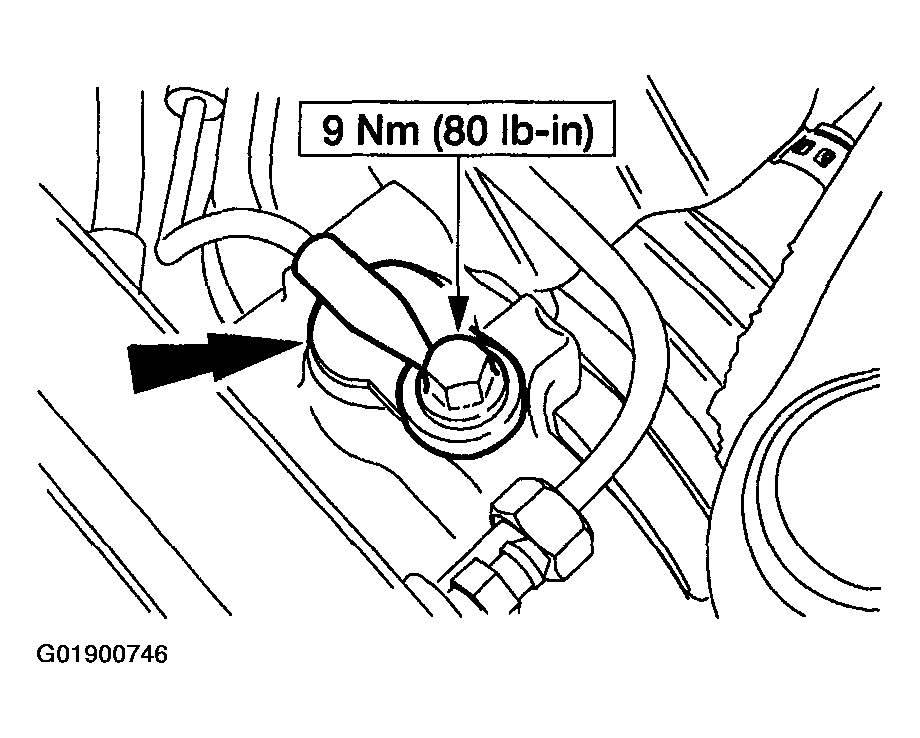

Fig 3: Detaching Bolt - Rear Sensor
Courtesy of MAZDA MOTORS CORP.
Detach the bolt.

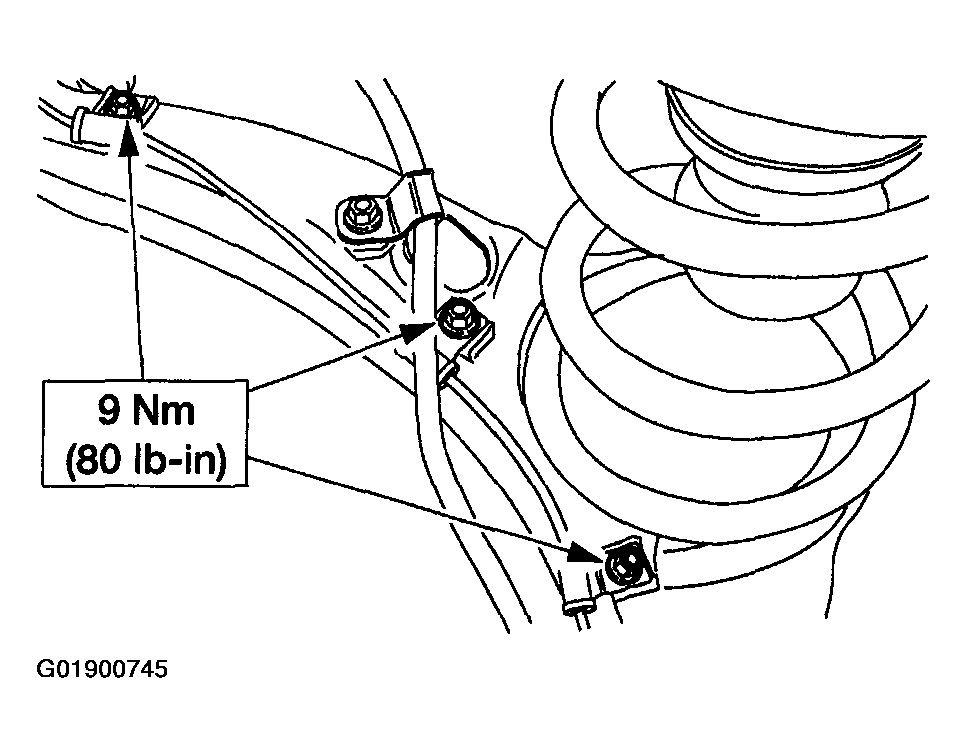

Fig 4: Removing Bolts - Rear Sensor
Courtesy of MAZDA MOTORS CORP.
Remove the bolts.

Fig 5: Removing Bolt And Sensor
Courtesy of MAZDA MOTORS CORP.
NOTE:
- Clean off any dirt that may have collected around the sensor before removal.
Remove the bolt and the sensor.
NOTE:
- Thoroughly clean the mounting surface.
To install, reverse the removal procedure.
