Front Door Lock And Opener Removal/Installation

WARNING: This page is about a different car, the 2005 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Close the front door glass completely.
  2. Disconnect the negative battery cable.
  3. Remove the front door trim. (See FRONT DOOR TRIM REMOVAL/INSTALLATION .)
  4. Remove in the order indicated in the table.

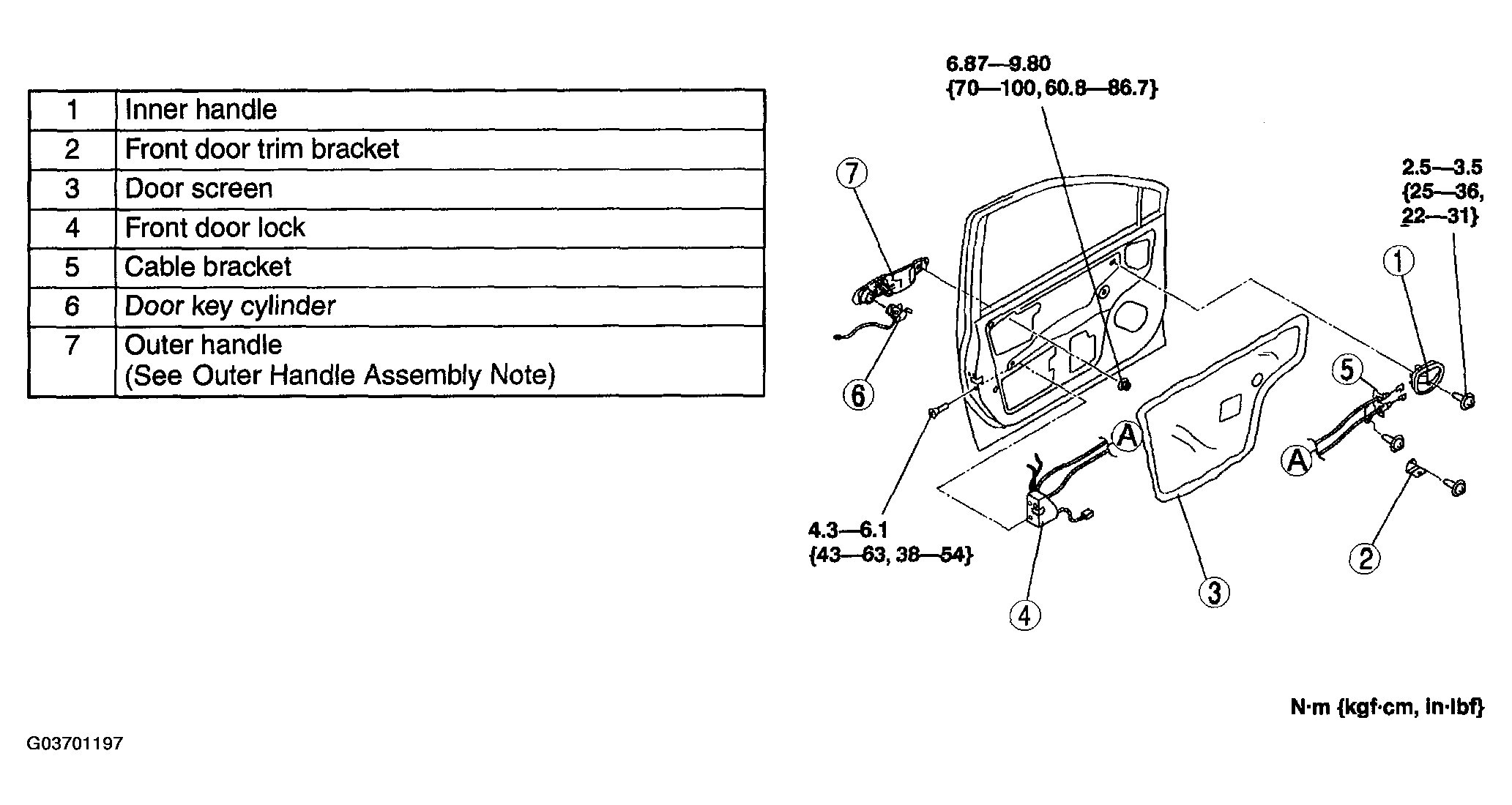

    Fig 1: Removing Front Door Lock And Opener - With Torque Specifications
    G03701197Courtesy of MAZDA MOTORS CORP.
  5. Install in the reverse order of removal.
