Coil Spring Installation Note
WARNING: This page is about a different car, the 2005 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
- Set the coil spring to the SSTs
using cloth.

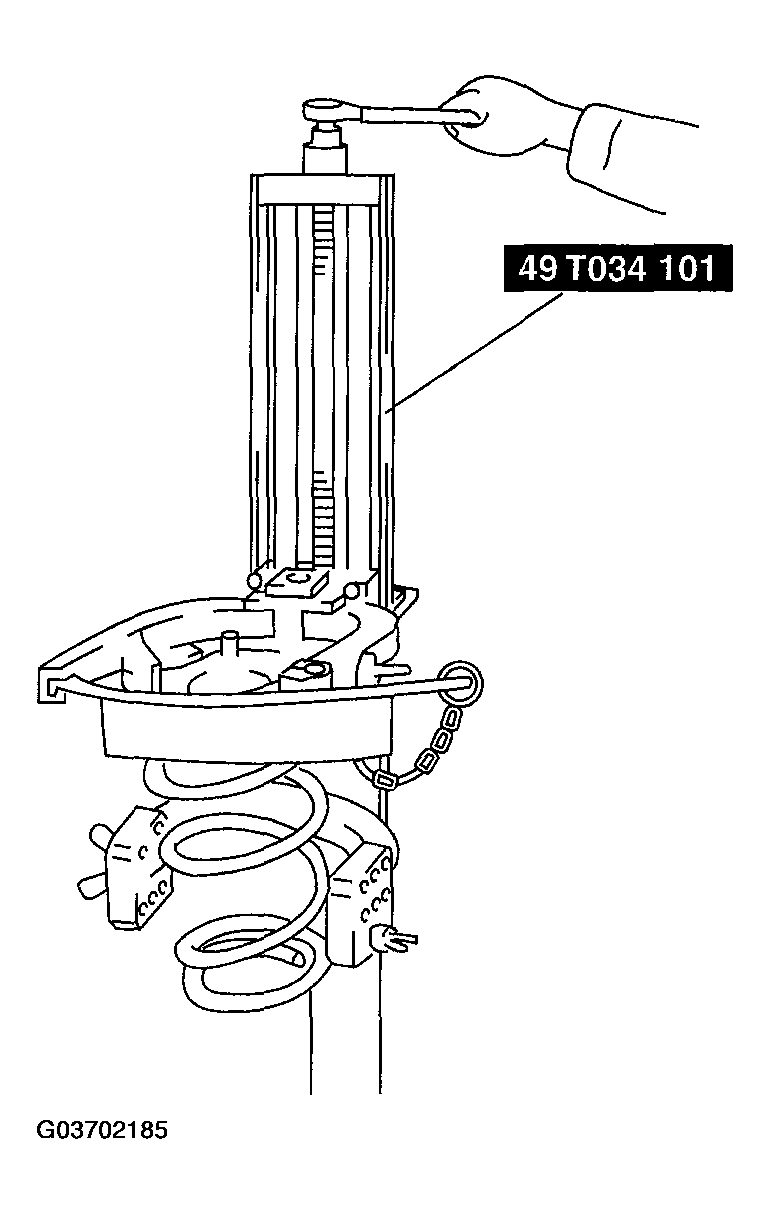

- Using the SSTs
, compress the coil spring.
- Install the shock absorber so that the lower end of the coil spring is seated on the step of the lower spring seat.
