Console Removal/Installation: Notes
WARNING: This page is about a different car, the 2005 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery cable.
- Detach clips A and remove the upper panel.

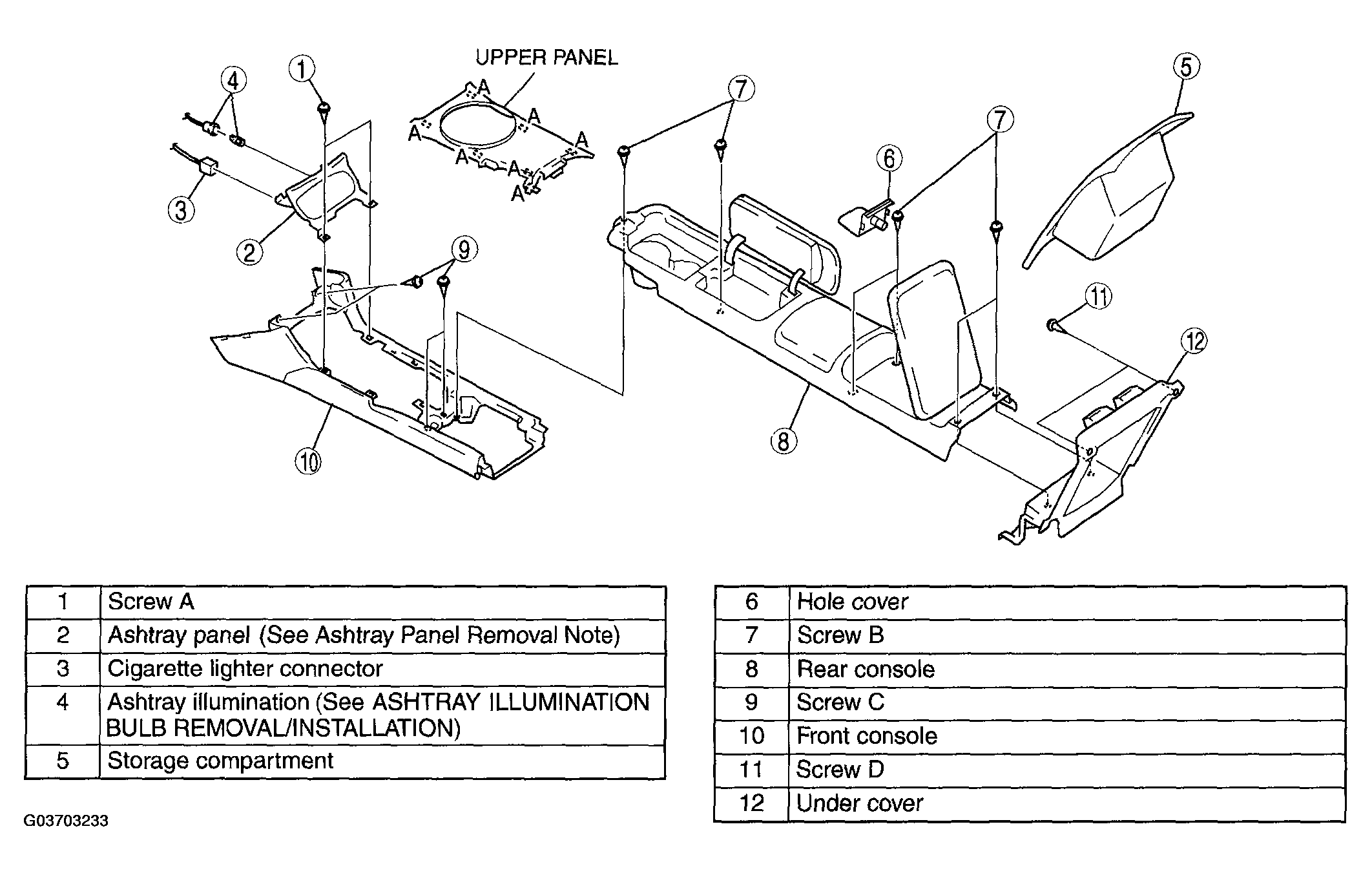

- Disassemble in the order indicated in the table.
Courtesy of MAZDA MOTORS CORP.
- Install in the reverse order of removal.
