Side Panel Removal/Installation
WARNING: This page is about a different car, the 2005 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the inner scuff plate. (See INNER SCUFF PLATE REMOVAL/INSTALLATION .)
- Remove the front side trim. (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)

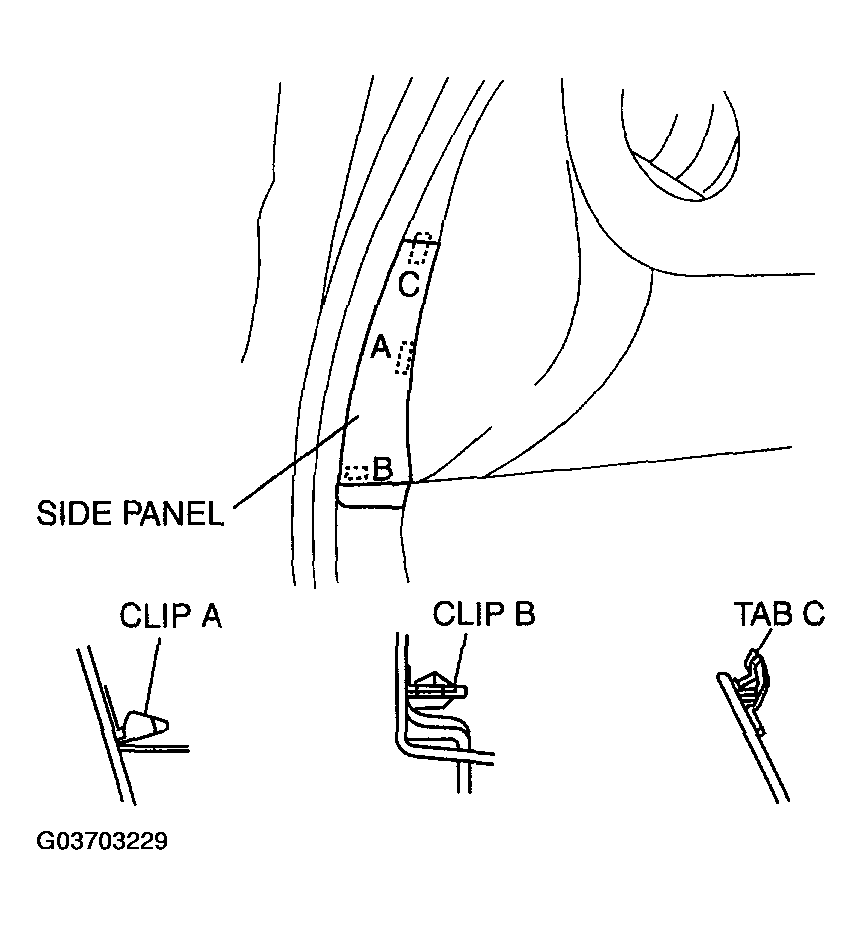

- Detach clips A and B, using a flathead screwdriver wrapped with protective tape.
- Pull the side panel outward and detach tab C from the dashboard, then remove the side panel.
- Install in the reverse order of removal.
