Trunk Mat Removal/Installation

WARNING: This page is about a different car, the 2005 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

Remove the trunk end trim. (See TRUNK END TRIM REMOVAL/INSTALLATION .)
Remove the trunk side trim. (See TRUNK SIDE TRIM REMOVAL/INSTALLATION .)
Remove the fasteners A and bolts, then remove the tool box.

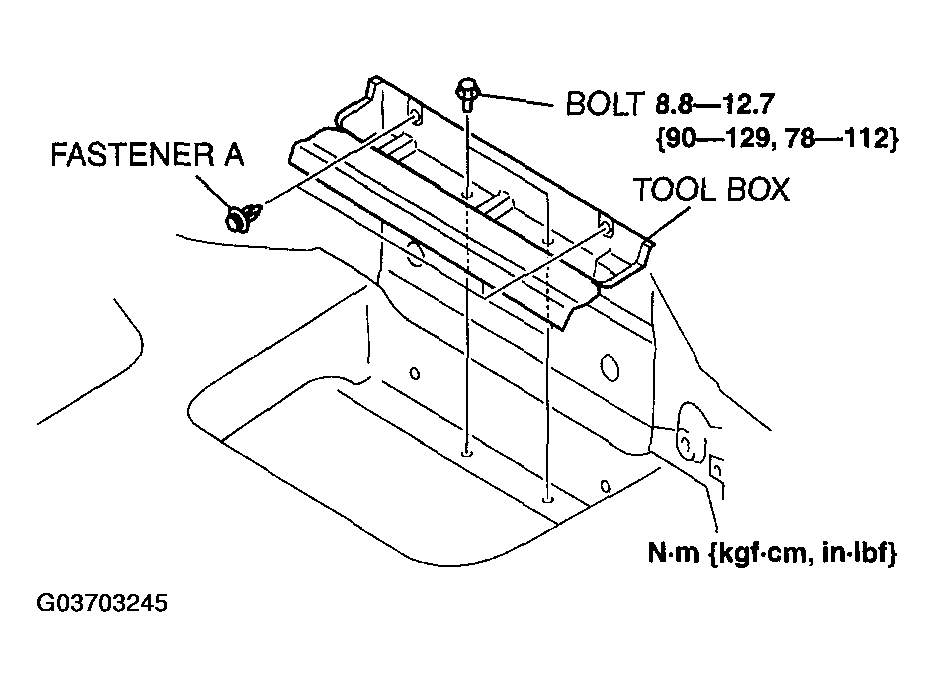

Fig 1: Removing Tool Box
Courtesy of MAZDA MOTORS CORP.
Remove the fasteners B, then remove the trunk mat.
Install in the reverse order of removal.

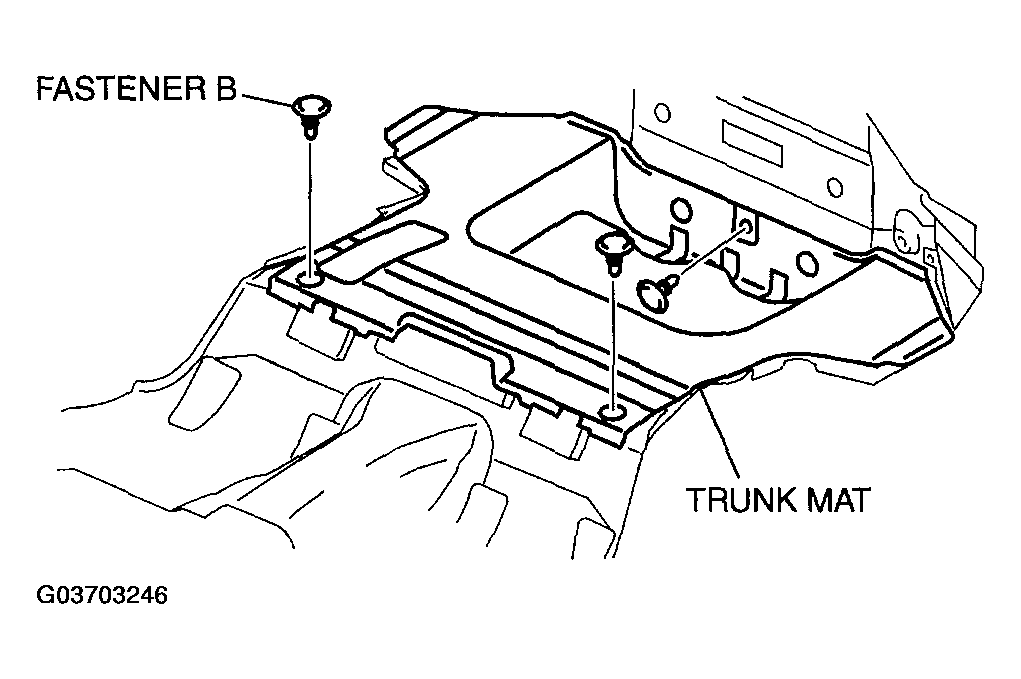

Fig 2: Removing Trunk Mat
Courtesy of MAZDA MOTORS CORP.
