Direction Of View For Connector: Other

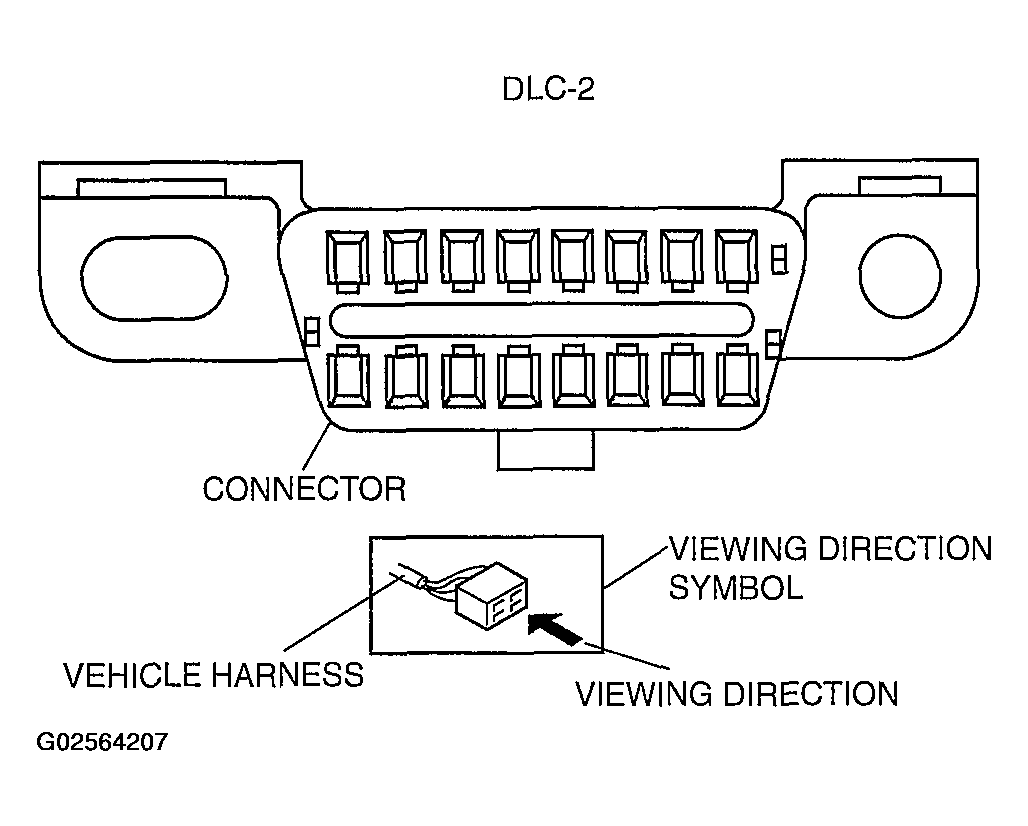

When it is necessary to show the terminal side of vehicle harness-side connectors, such as the following connectors, the viewing direction is from the terminal side.
- Main fuse block and the main fuse block relays.
- Data link connector.
- Check connector.
- Relay box.
