Direction Of View For Connector
›
Part-Side Connector
Part-Side Connector
NOTE:
Part names are shown only when there are multiple connector drawings.
The viewing direction of part-side connectors is from the terminal side.

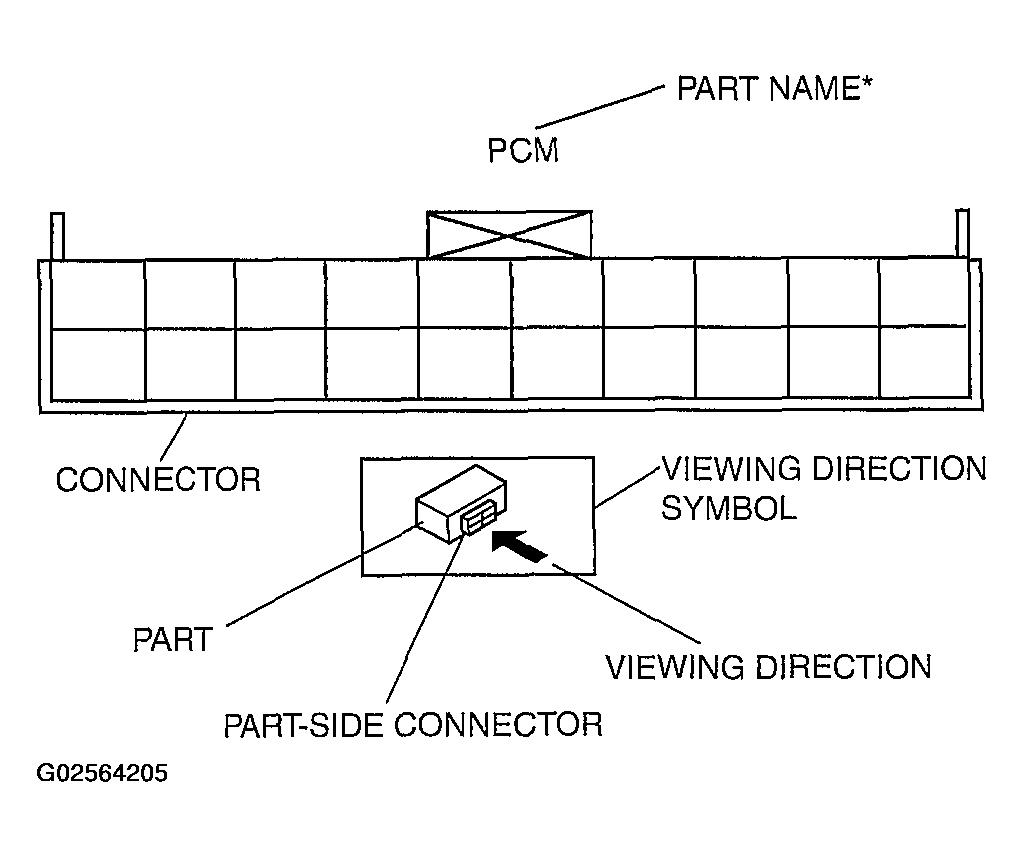

Fig 1: Viewing Direction Of Part-Side Connector
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
