Using The DTC Troubleshooting Flow
DTC troubleshooting flow shows diagnostic procedures, inspection methods, and proper action to take for each DTC.

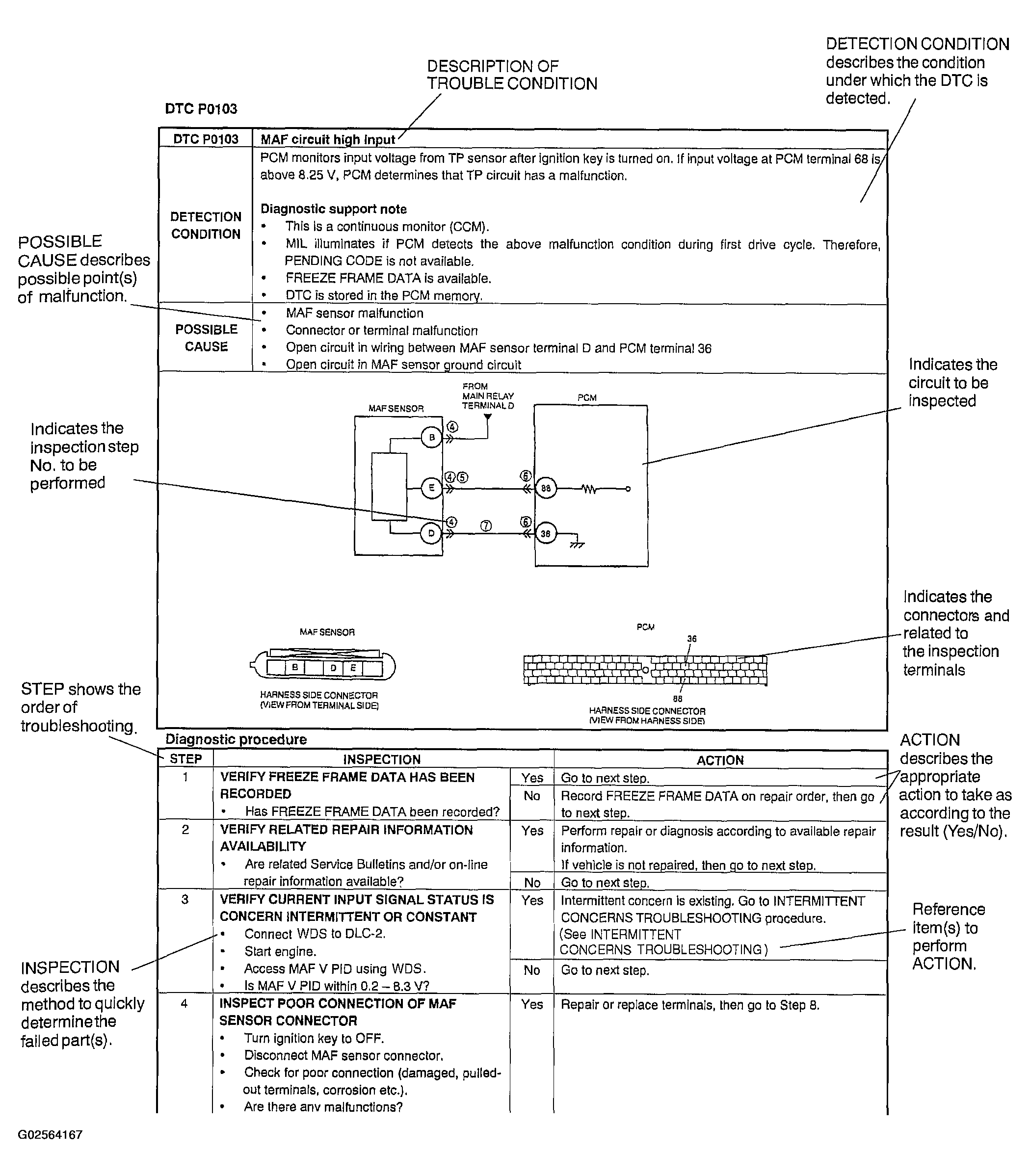

Fig 1: Using DTC Troubleshooting Flow
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
