Steering Gear And Linkage Assembly: Notes

CAUTION:

Place rag, or similar in a vise when securing the mounting bracket portion of the steering gear.

Assemble in the order indicated in the figure.

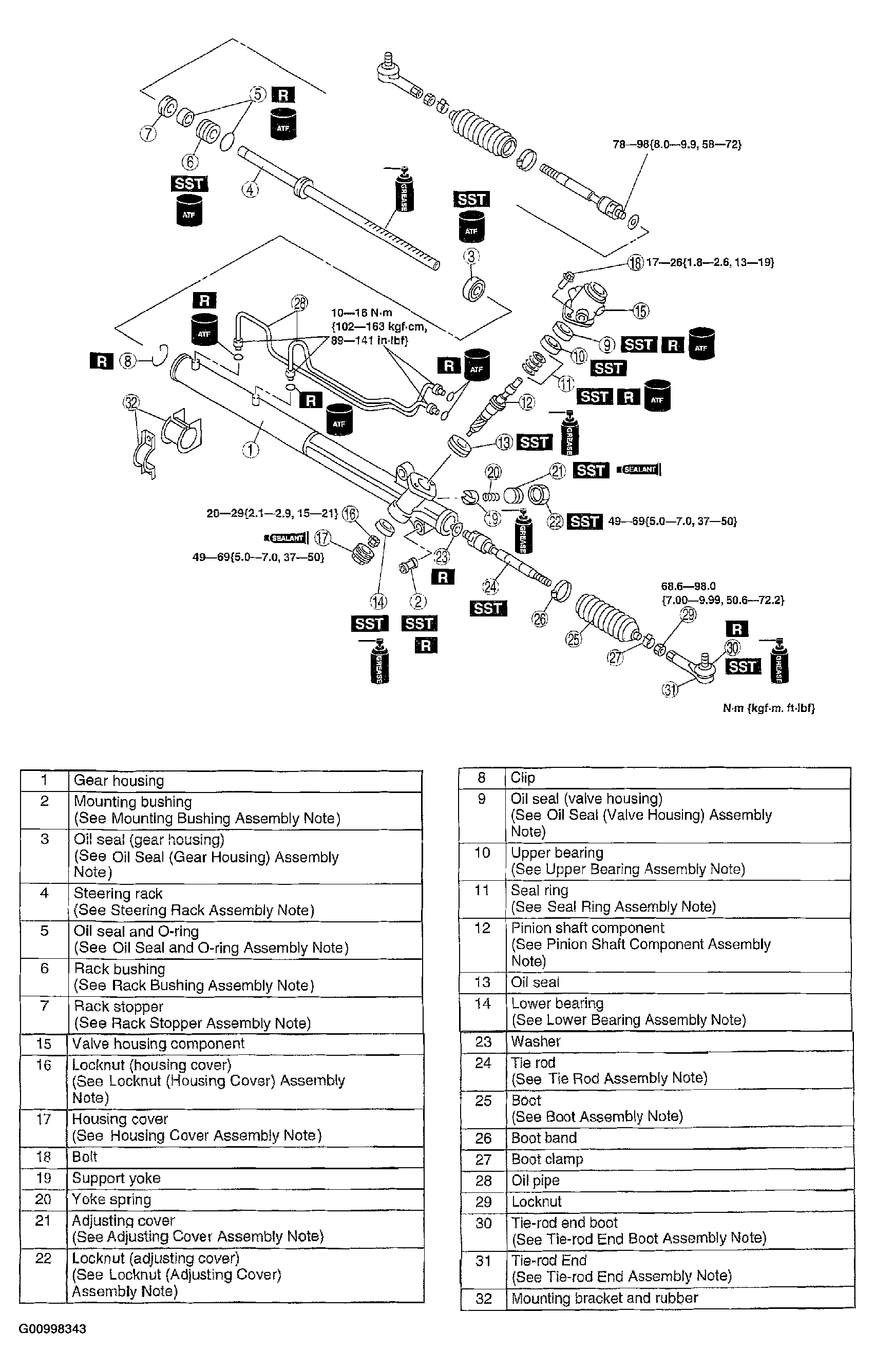

Fig 1: Assembling Steering Gear & Linkage
Courtesy of MAZDA MOTORS CORP.
