Automatic Transaxle Location Index

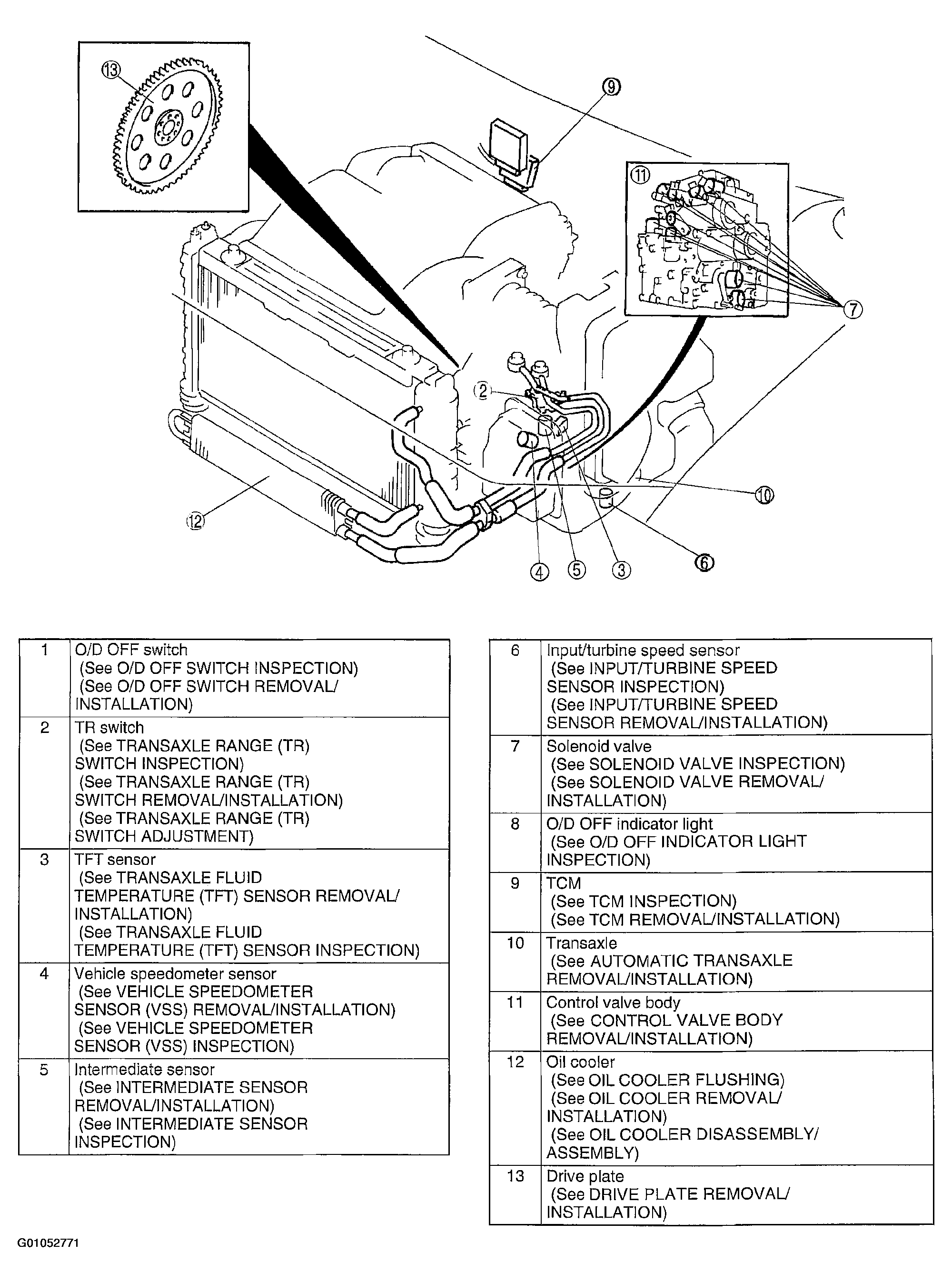

Fig 1: Automatic Transaxle Location Index (1 Of 2)

Courtesy of MAZDA MOTORS CORP.

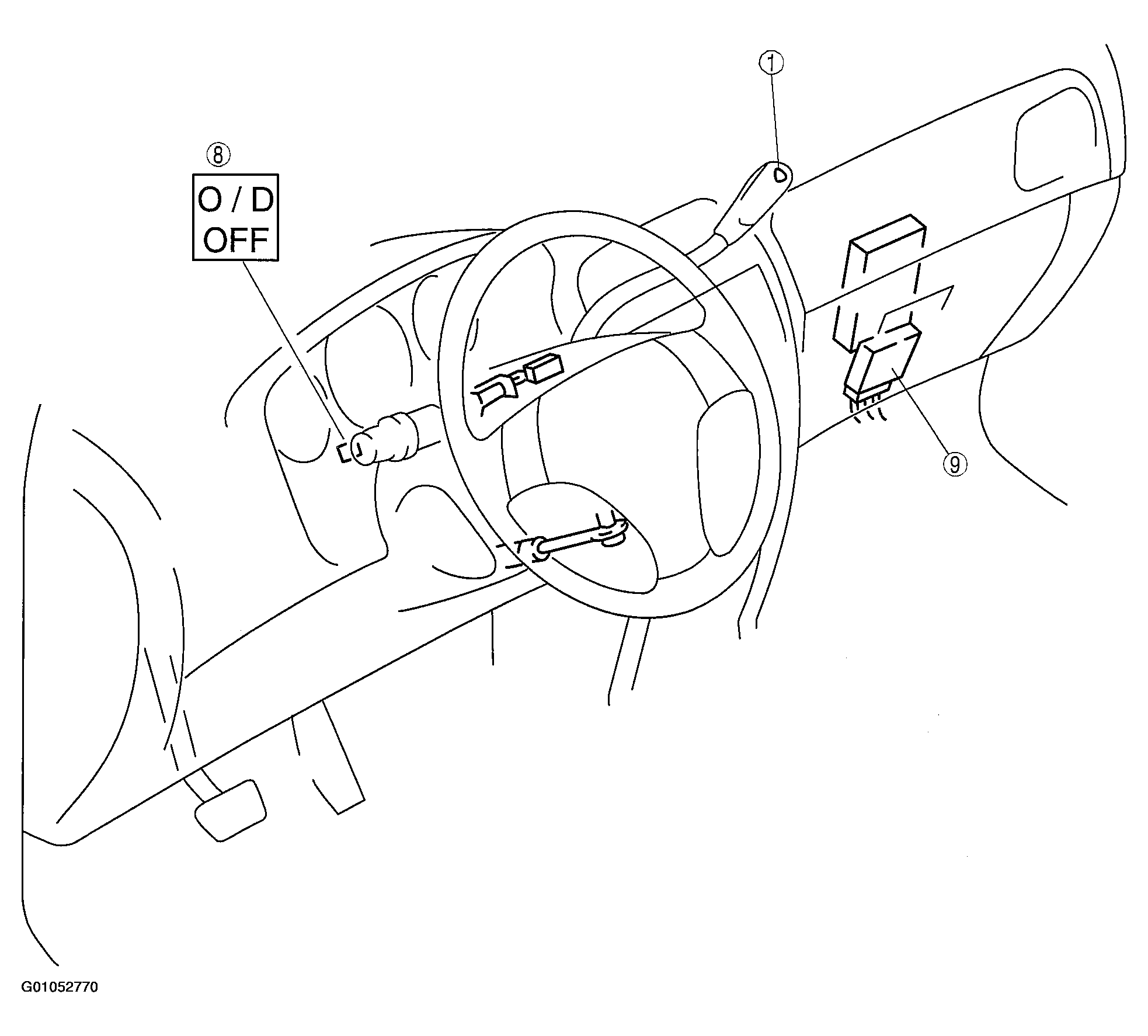

Fig 2: Automatic Transaxle Location Index (2 Of 2)

Courtesy of MAZDA MOTORS CORP.
