Vehicle Speed At Shift Point Table

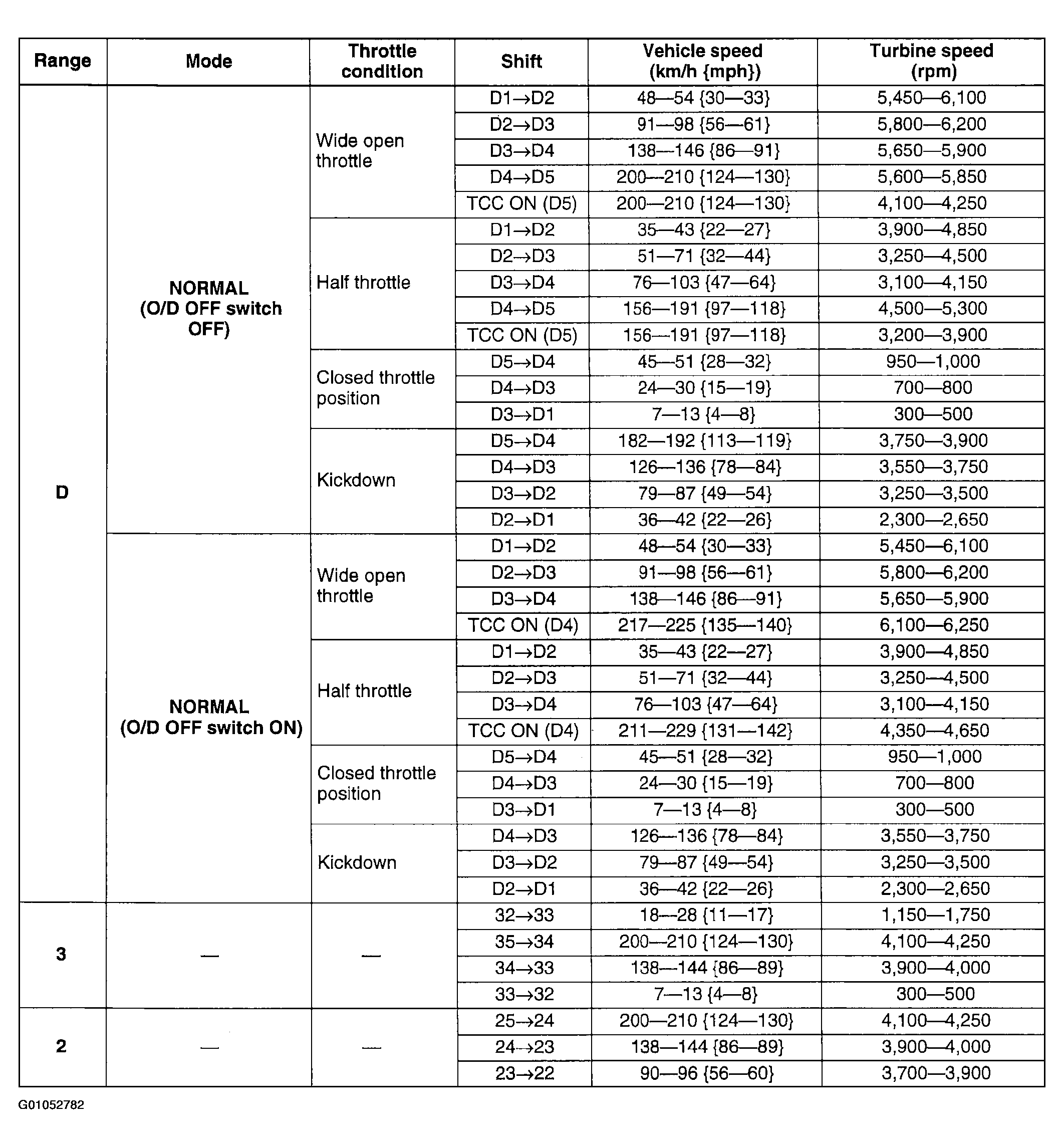

Fig 1: Vehicle Speed At Shift Point Table
G01052782Courtesy of MAZDA MOTORS CORP.
