TCM Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the floor mat of passenger seat.
  3. Remove in the order indicated in the figure.

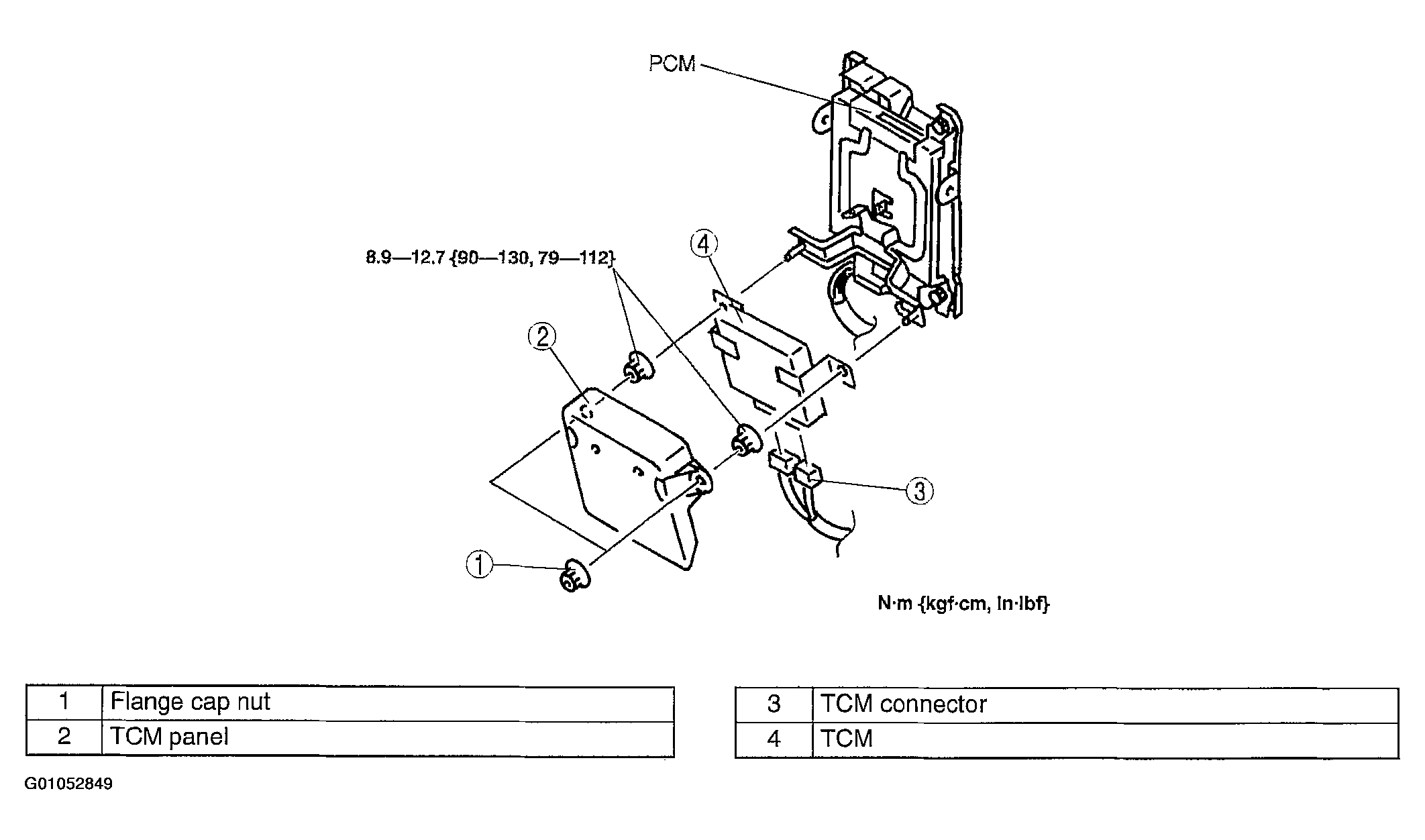

    Fig 1: Removing/Installing TCM
    G01052849Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
  5. Install the floor mat of passenger seat.
  6. Connect the negative battery cable.
