Power Door Lock System Location Index
Power Door Lock System Location Index

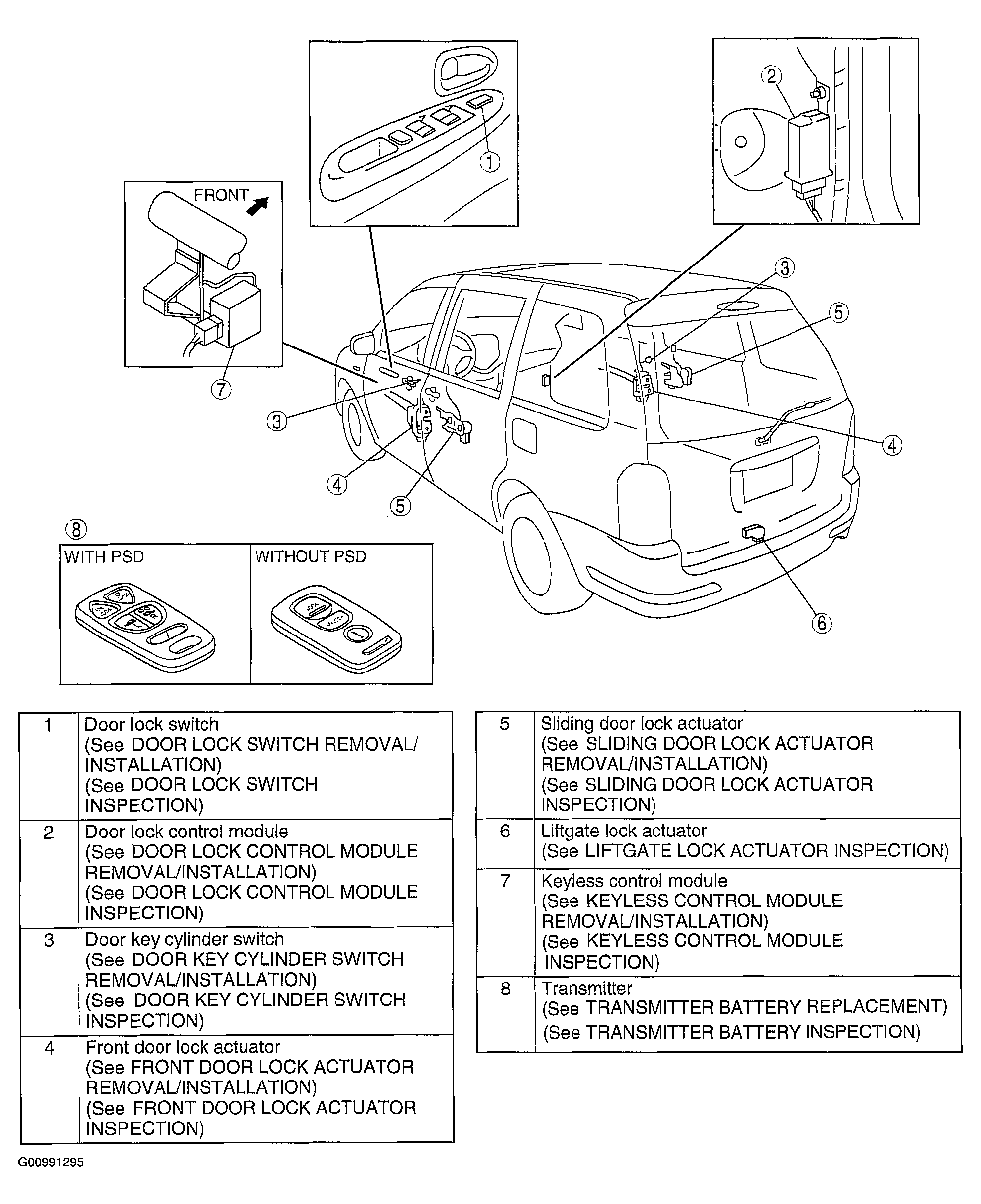

Fig 1: Power Door Lock System Location Index
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
