Symptom Troubleshooting [Brake System)
›
Abs And TCS System Diagram
Abs And TCS System Diagram

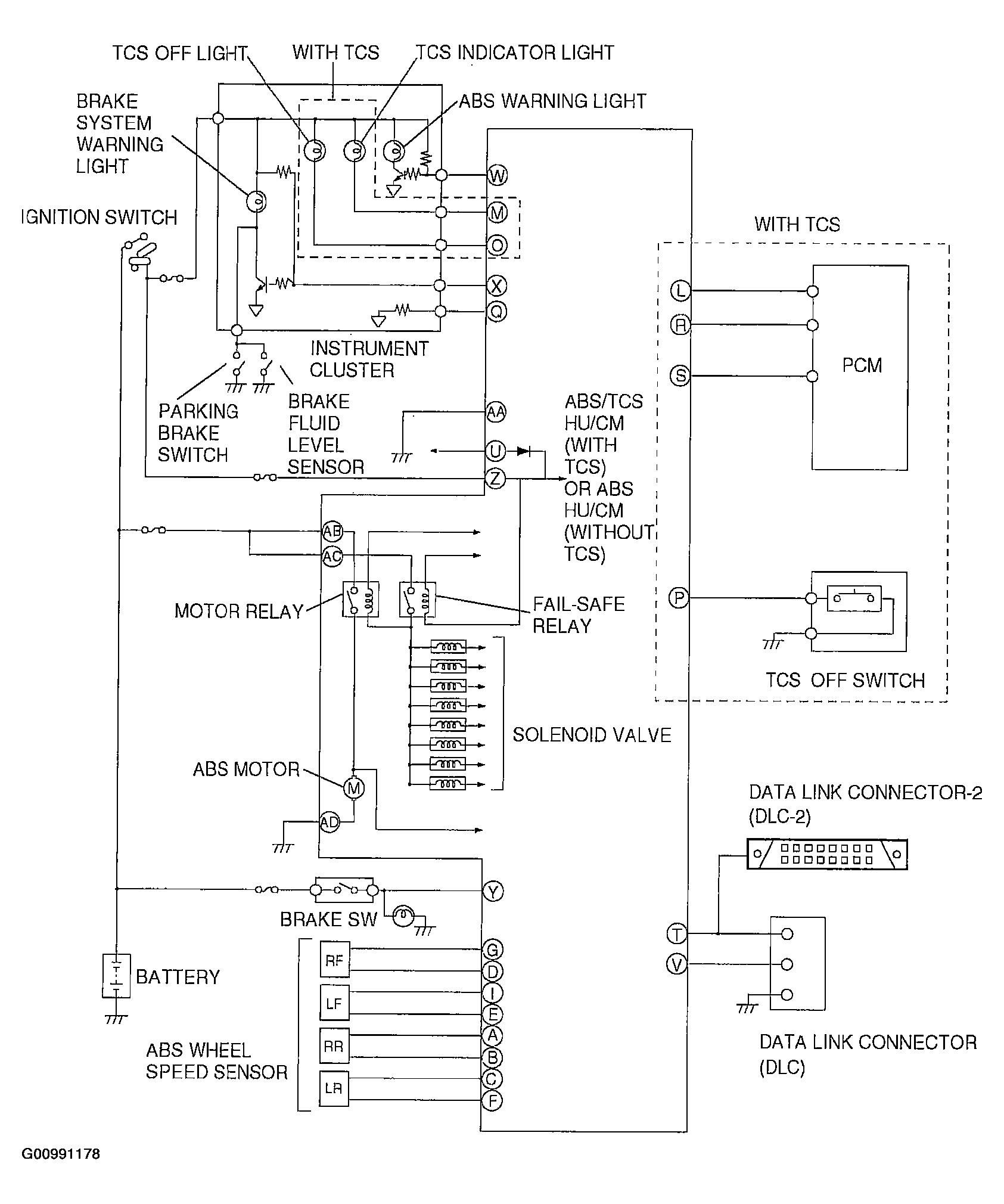

Fig 1: ABS & TCS System Diagram
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
