Diagnostic Procedure

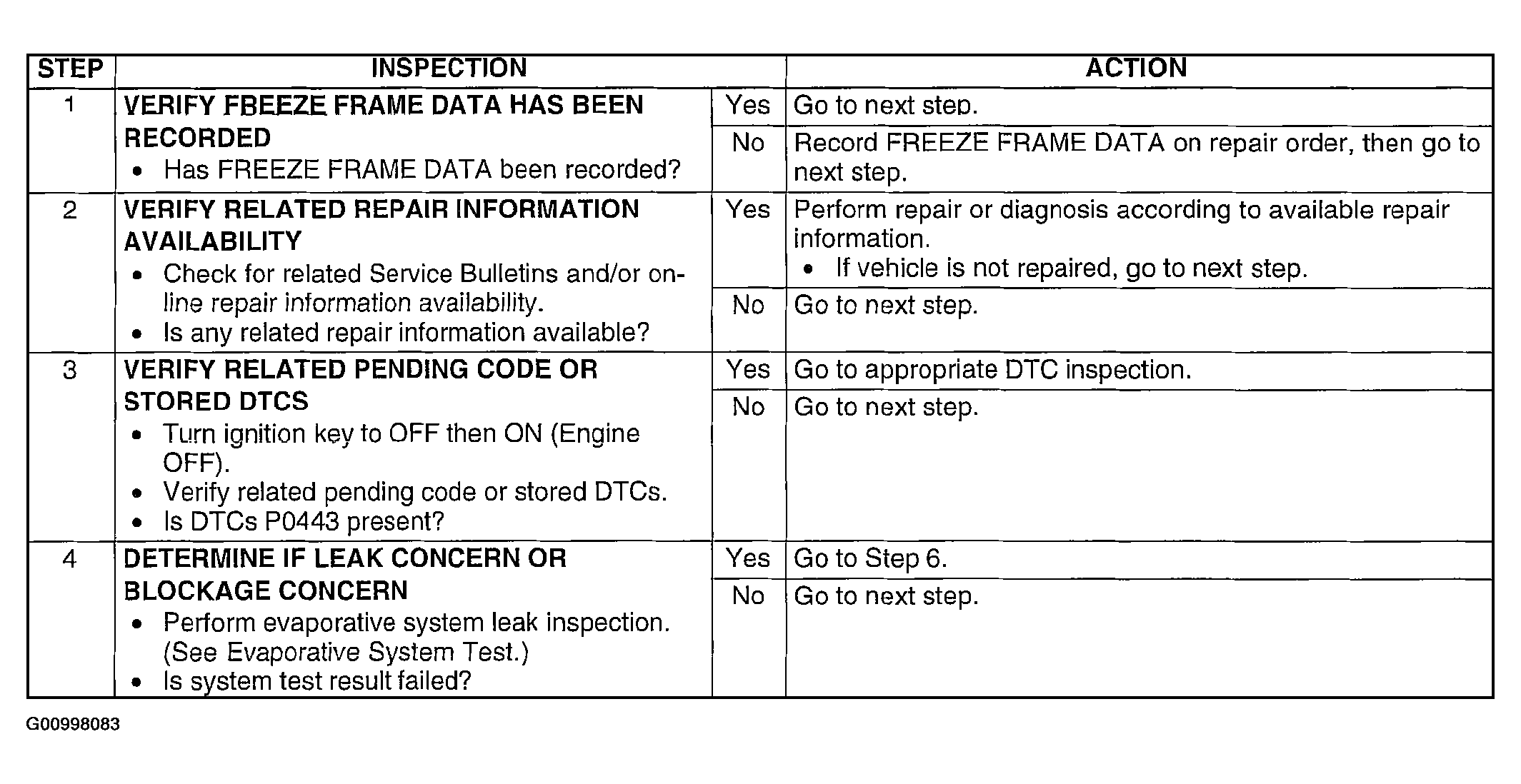

Fig 1: DTC P0441 Diagnostic Procedure Chart (Step 1-4)
G00998083Courtesy of MAZDA MOTORS CORP.

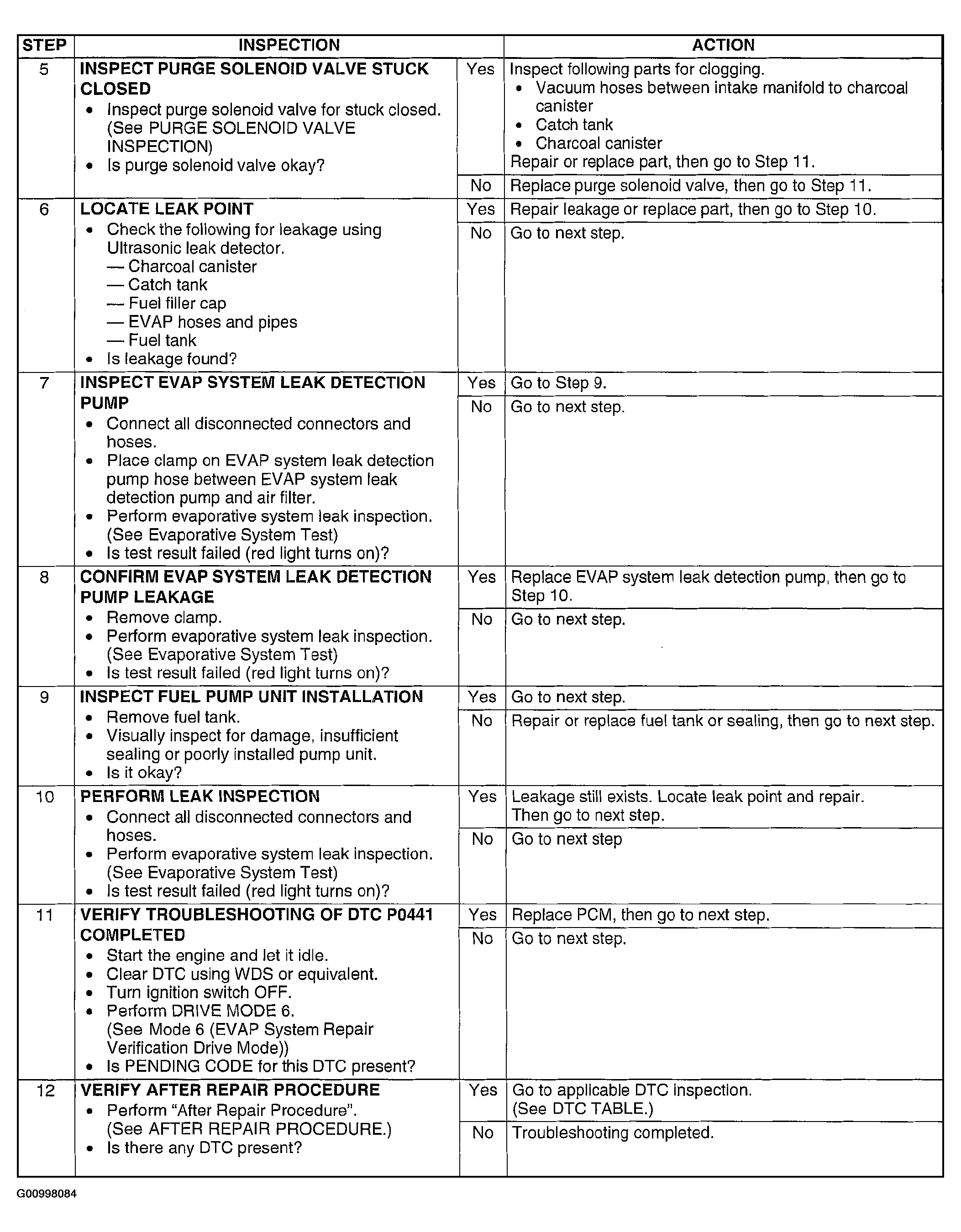

Fig 2: DTC P0441 Diagnostic Procedure Chart (Step 5-12)
G00998084Courtesy of MAZDA MOTORS CORP.
