On-Board Diagnostic [Engine Control System AJ]
›
DTC P0506: Idle Control System Rpm Lower Than Expected
›
Diagnostic Procedure
Diagnostic Procedure

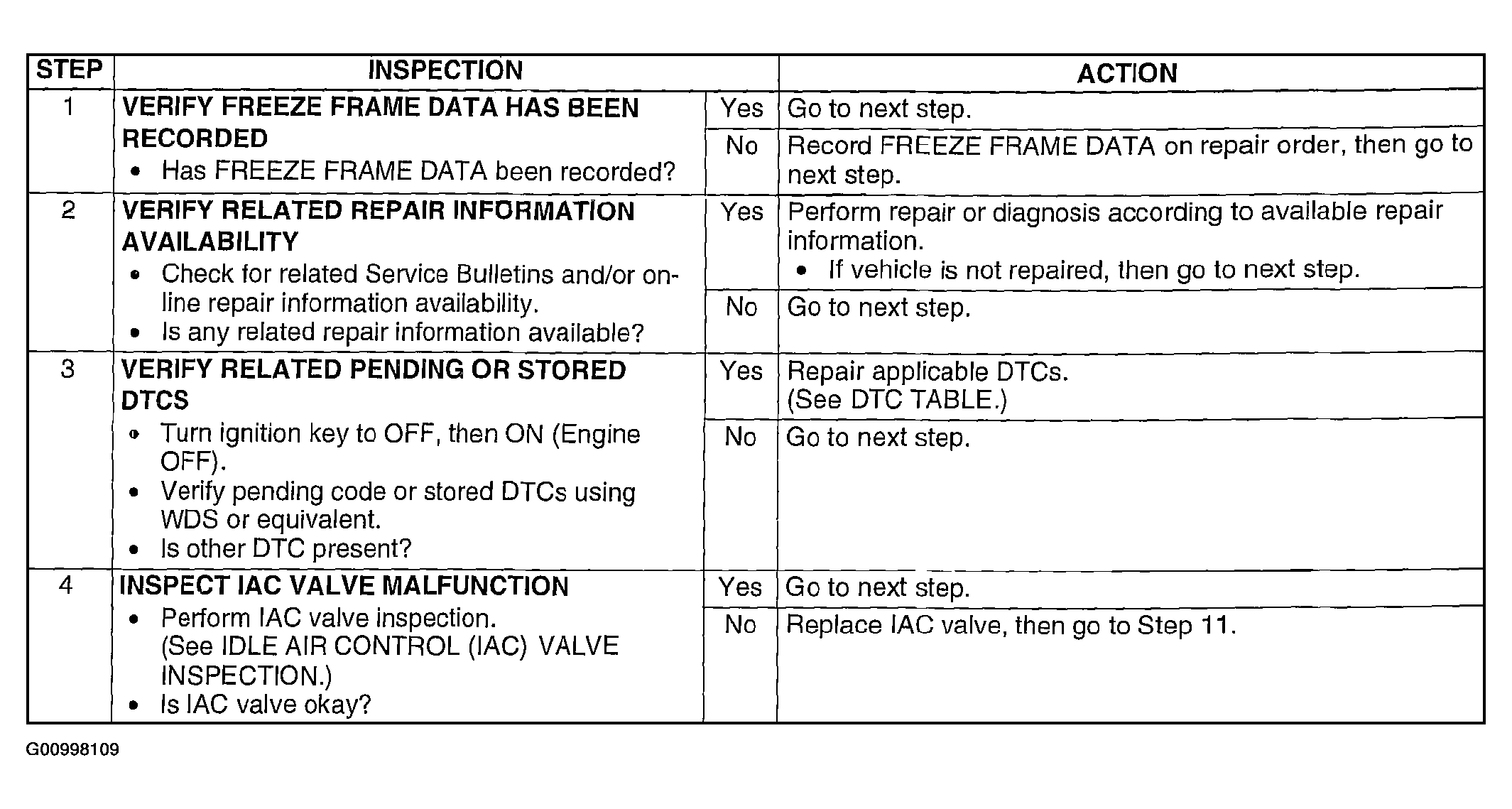

Fig 1: DTC P0506 Diagnostic Procedure Chart (Step 1-4)
Courtesy of MAZDA MOTORS CORP.

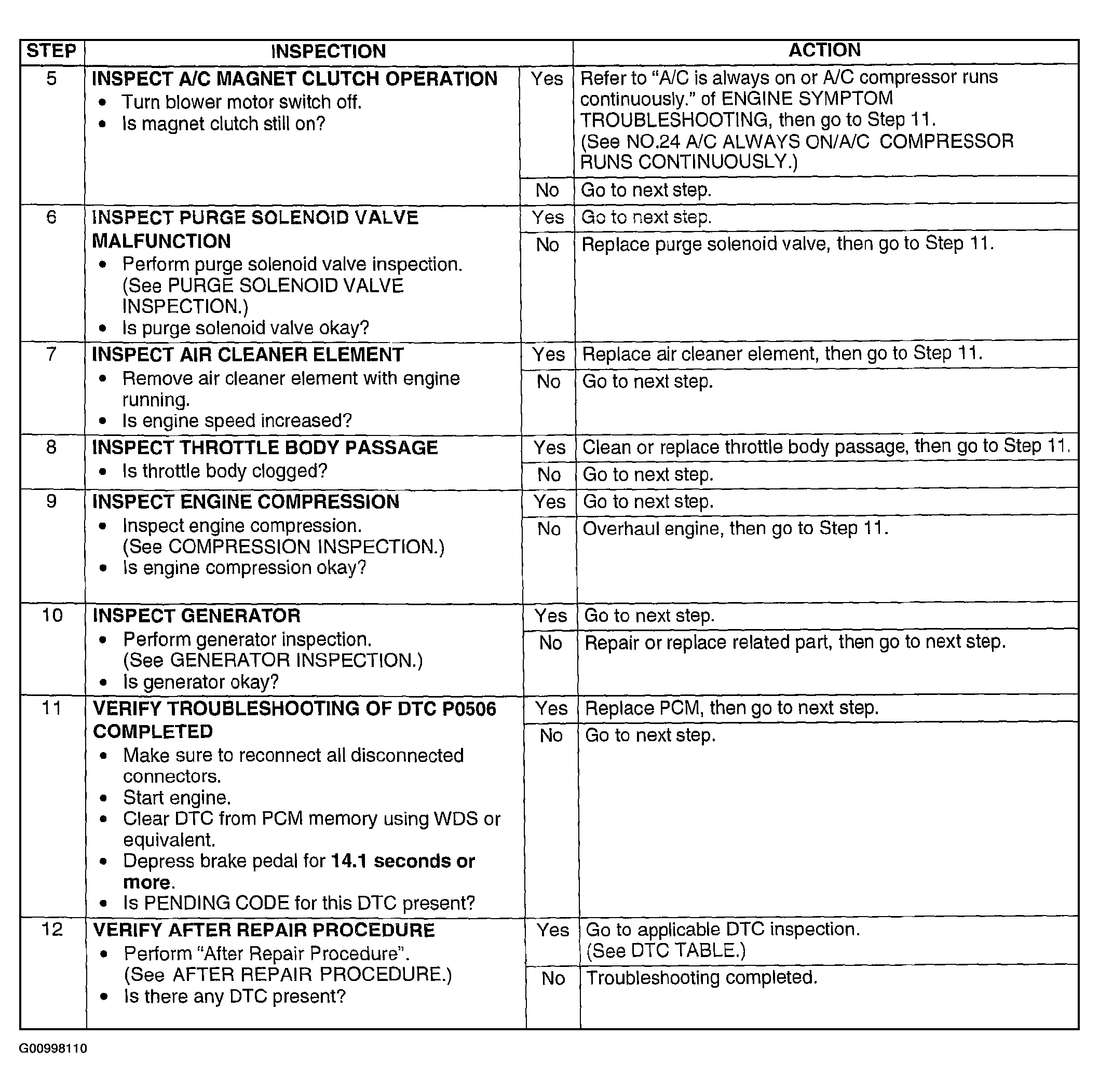

Fig 2: DTC P0506 Diagnostic Procedure Chart (Step 5-12)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
