Diagnostic Procedure

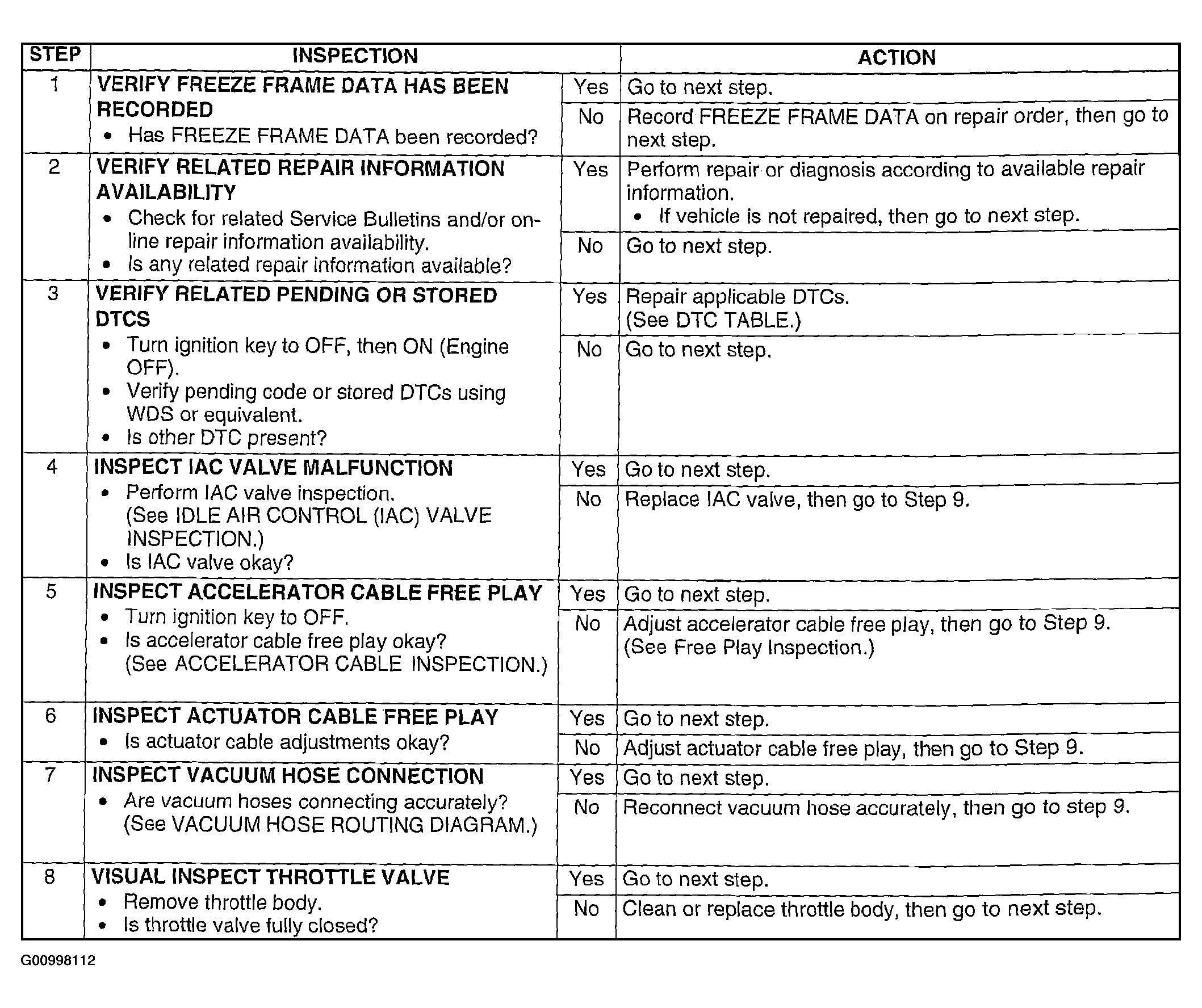

Fig 1: DTC P0507 Diagnostic Procedure Chart (Step 1-8)
G00998112Courtesy of MAZDA MOTORS CORP.

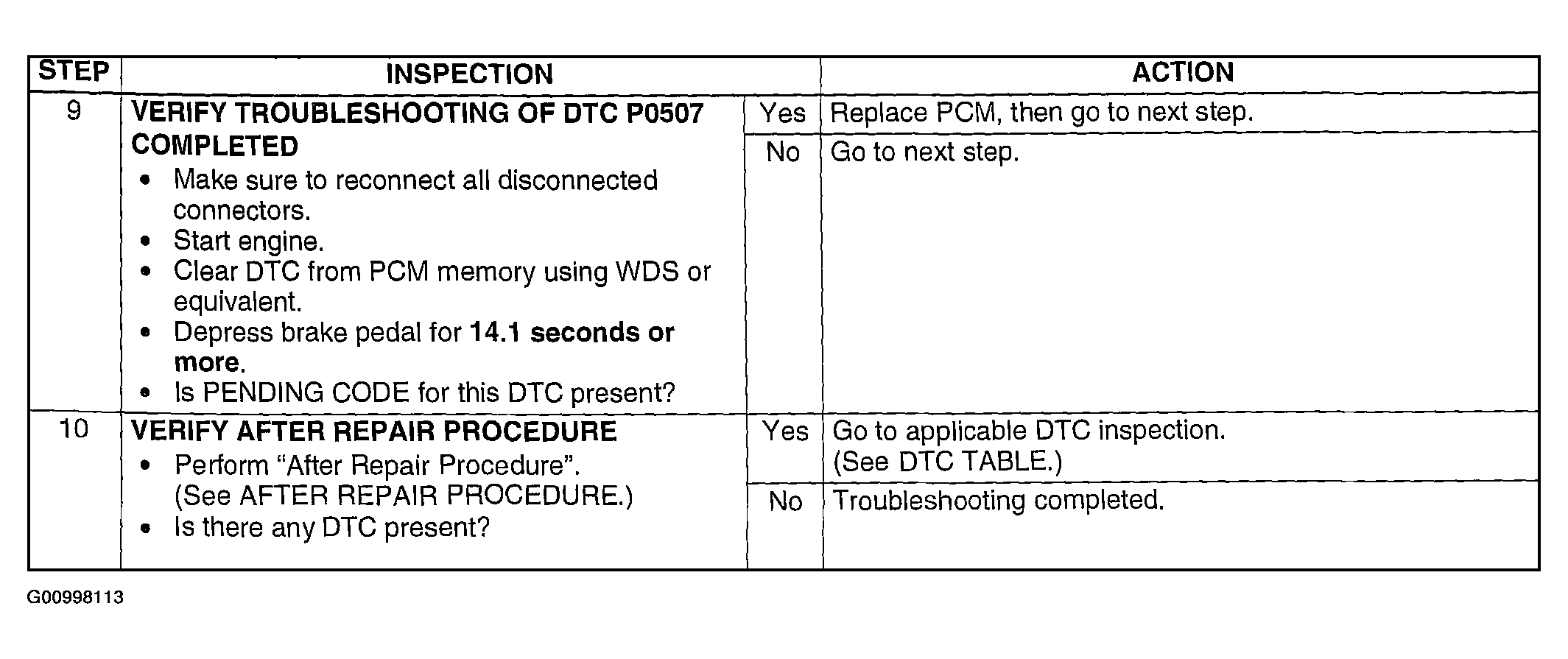

Fig 2: DTC P0507 Diagnostic Procedure Chart (Step 9-10)
G00998113Courtesy of MAZDA MOTORS CORP.
