Home › Mazda › 2004 › MPV LX › Repair and Diagnosis › Engine Performance › System › On-Board Diagnostic [Engine Control System AJ] › DTC P0660: Intake Manifold Communication Control (IMCC) Circuit Malfunction › Diagnostic Procedure

Diagnostic Procedure

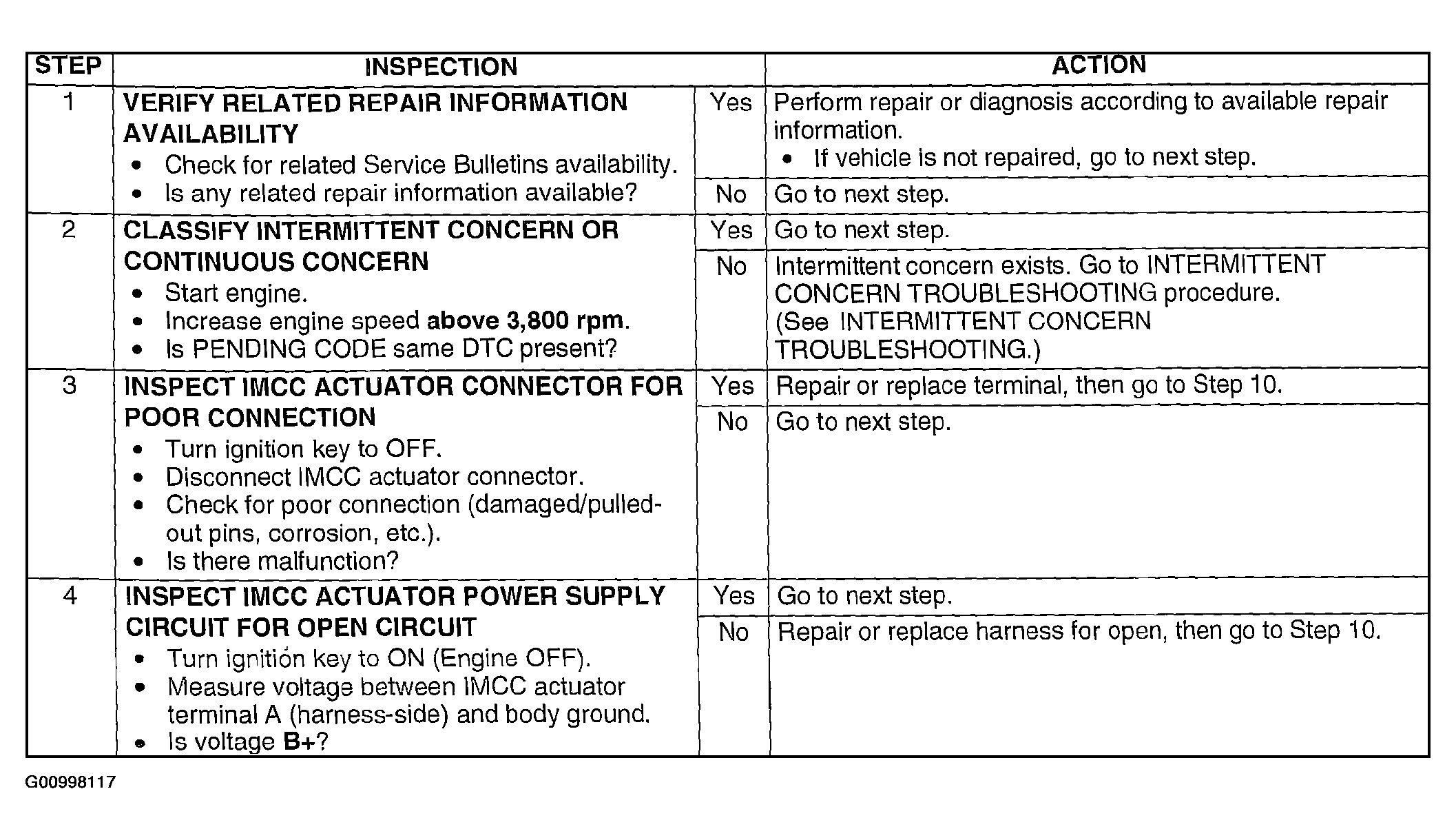

Fig 1: DTC P0660 Diagnostic Procedure Chart (Step 1-4)
G00998117Courtesy of MAZDA MOTORS CORP.

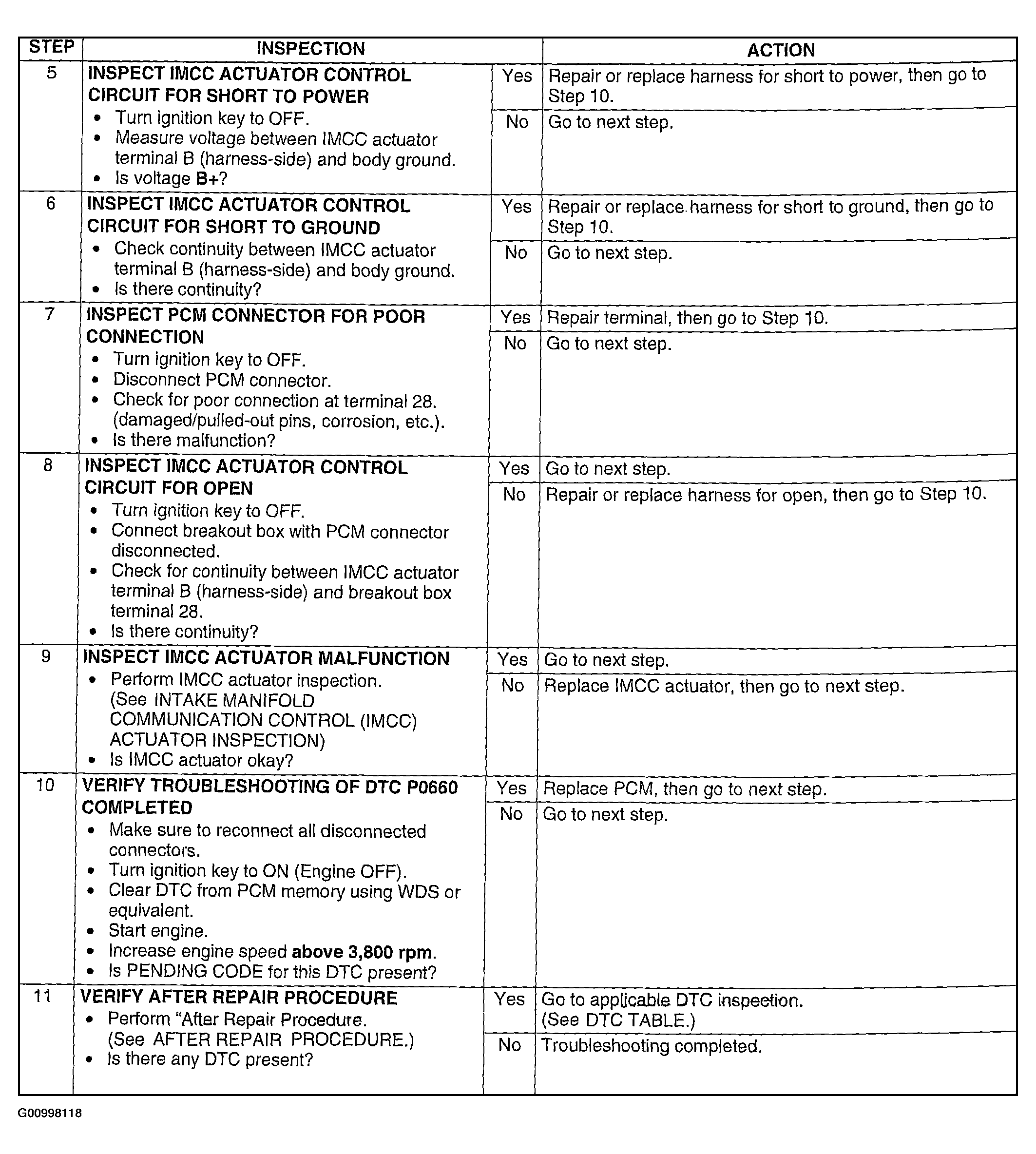

Fig 2: DTC P0660 Diagnostic Procedure Chart (Step 5-11)
G00998118Courtesy of MAZDA MOTORS CORP.
