Symptom Troubleshooting [Engine Control System AJ]
›
No. 19 Exhaust Smoke
›
Diagnostic Procedure
Diagnostic Procedure

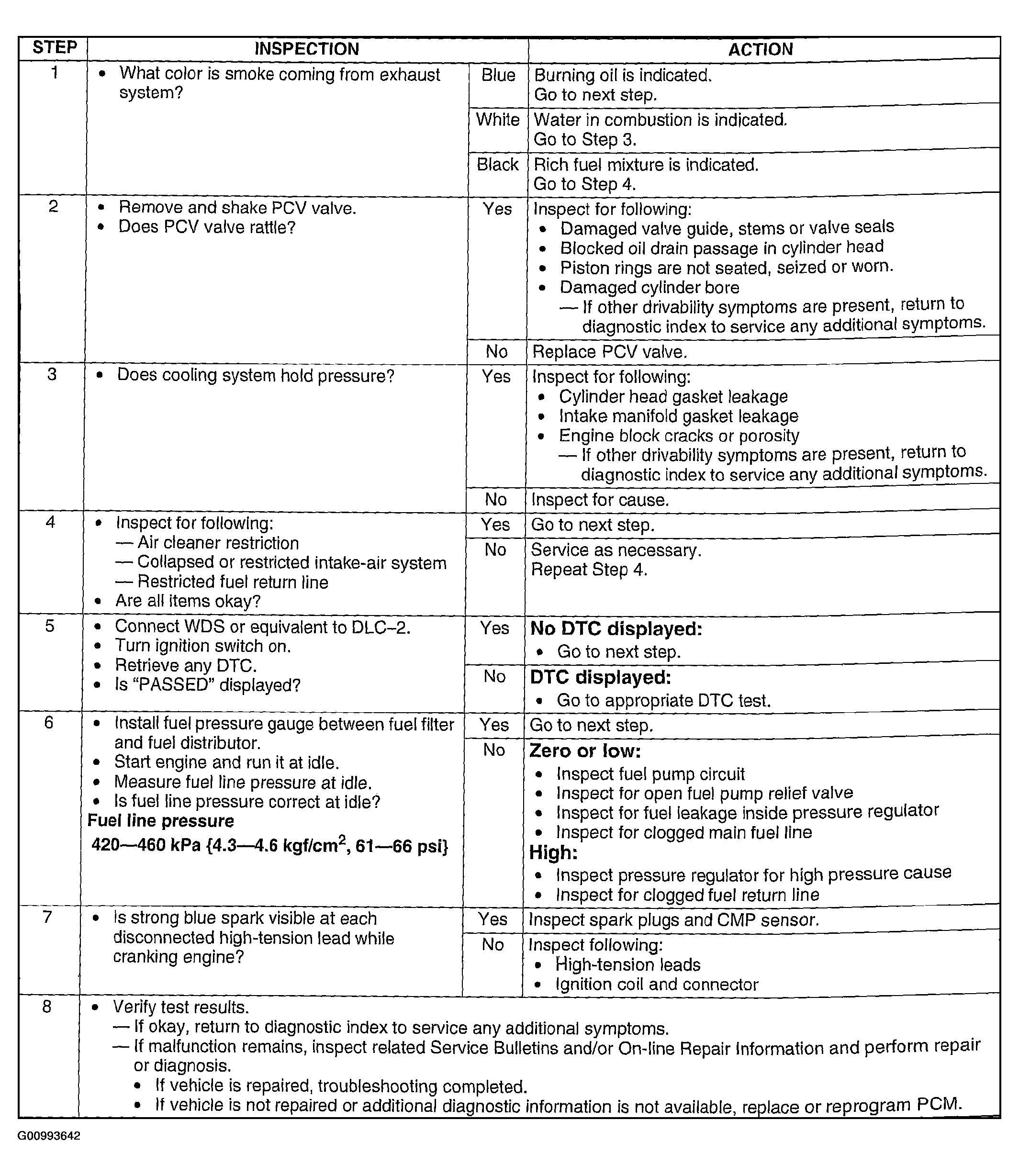

Fig 1: Symptom No.19 Diagnostic Procedure Chart
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
