Diagnostic Procedure

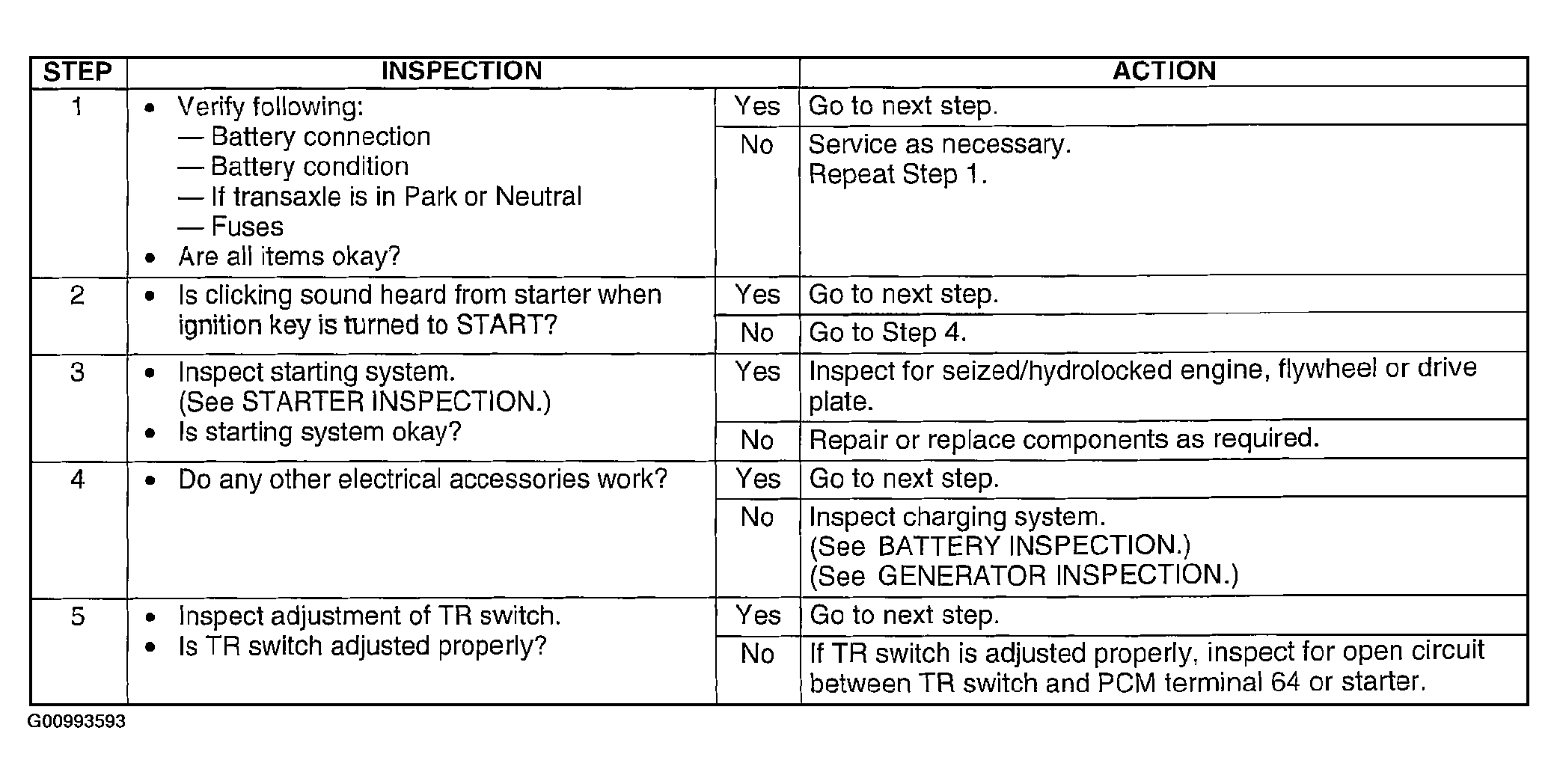

Fig 1: Symptom No. 3 Diagnostic Procedure Chart (Step 1-5)
G00993593Courtesy of MAZDA MOTORS CORP.

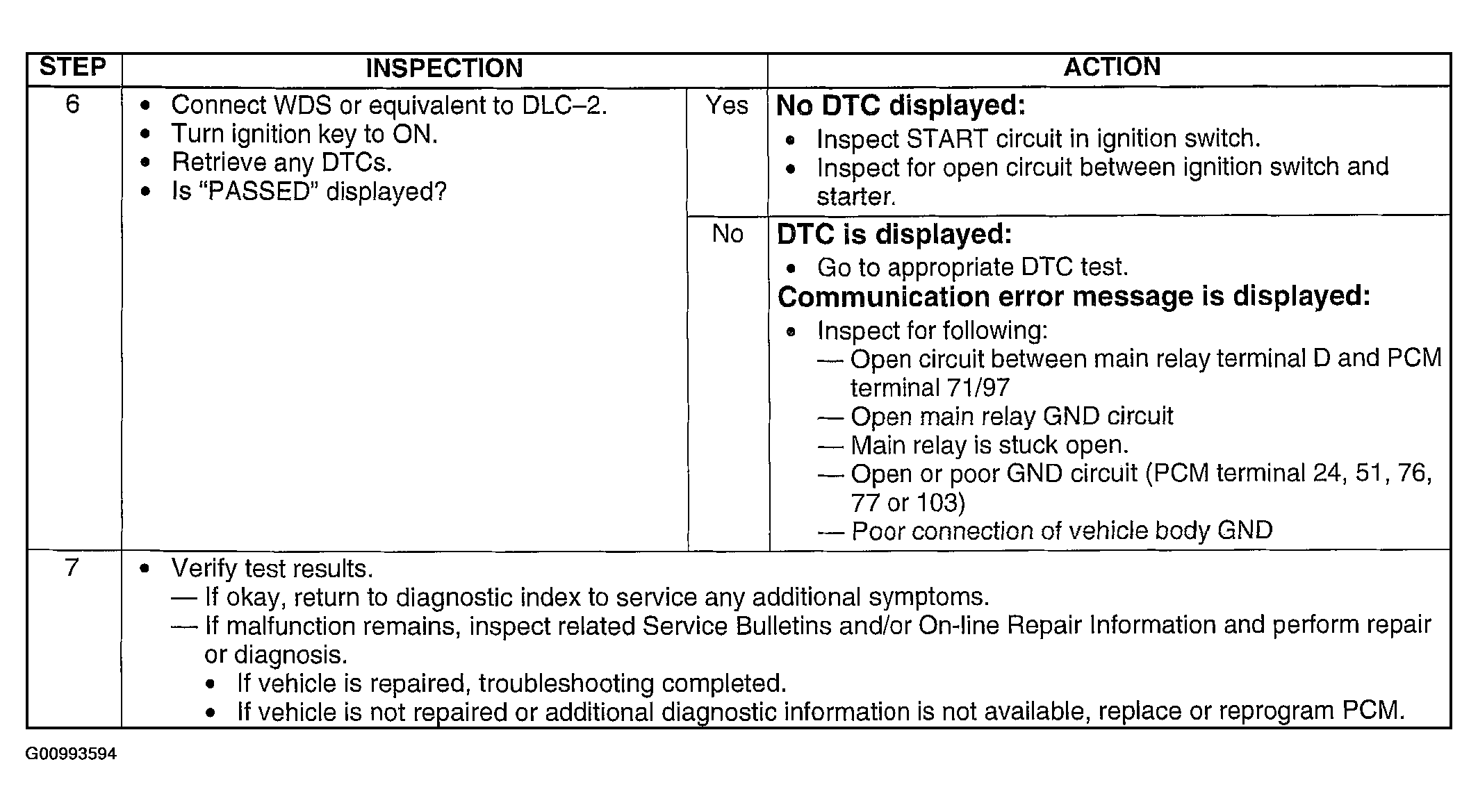

Fig 2: Symptom No. 3 Diagnostic Procedure Chart (Step 6-7)
G00993594Courtesy of MAZDA MOTORS CORP.
