Data Link Connector
CAUTION:
Inserting a jumper wire probe into the data link connector terminal may damage the terminal.

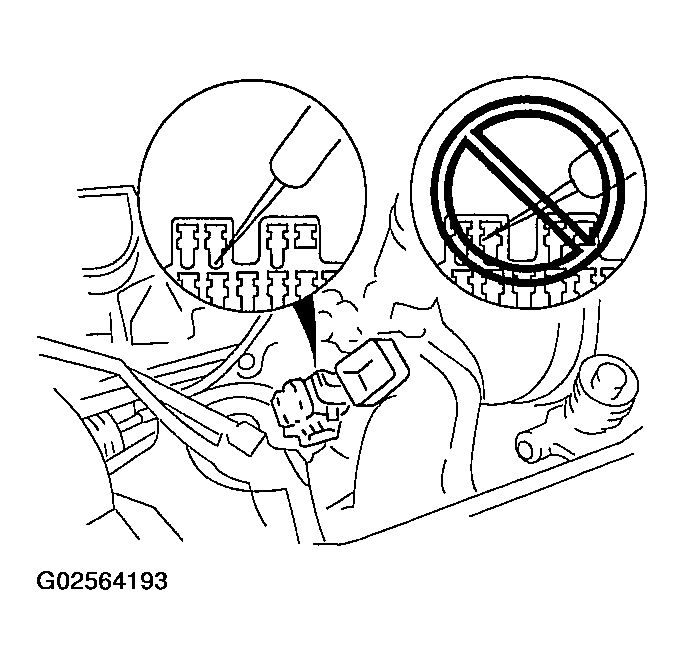

Fig 1: Inserting Jumper Wire Probe Into Data Link Connector Terminal
Courtesy of MAZDA MOTORS CORP.
Insert the probe into the terminal when connecting a jumper wire to the data link connector.
Courtesy of MAZDA MOTORS CORP.
