Evaluation Of Line Pressure Test

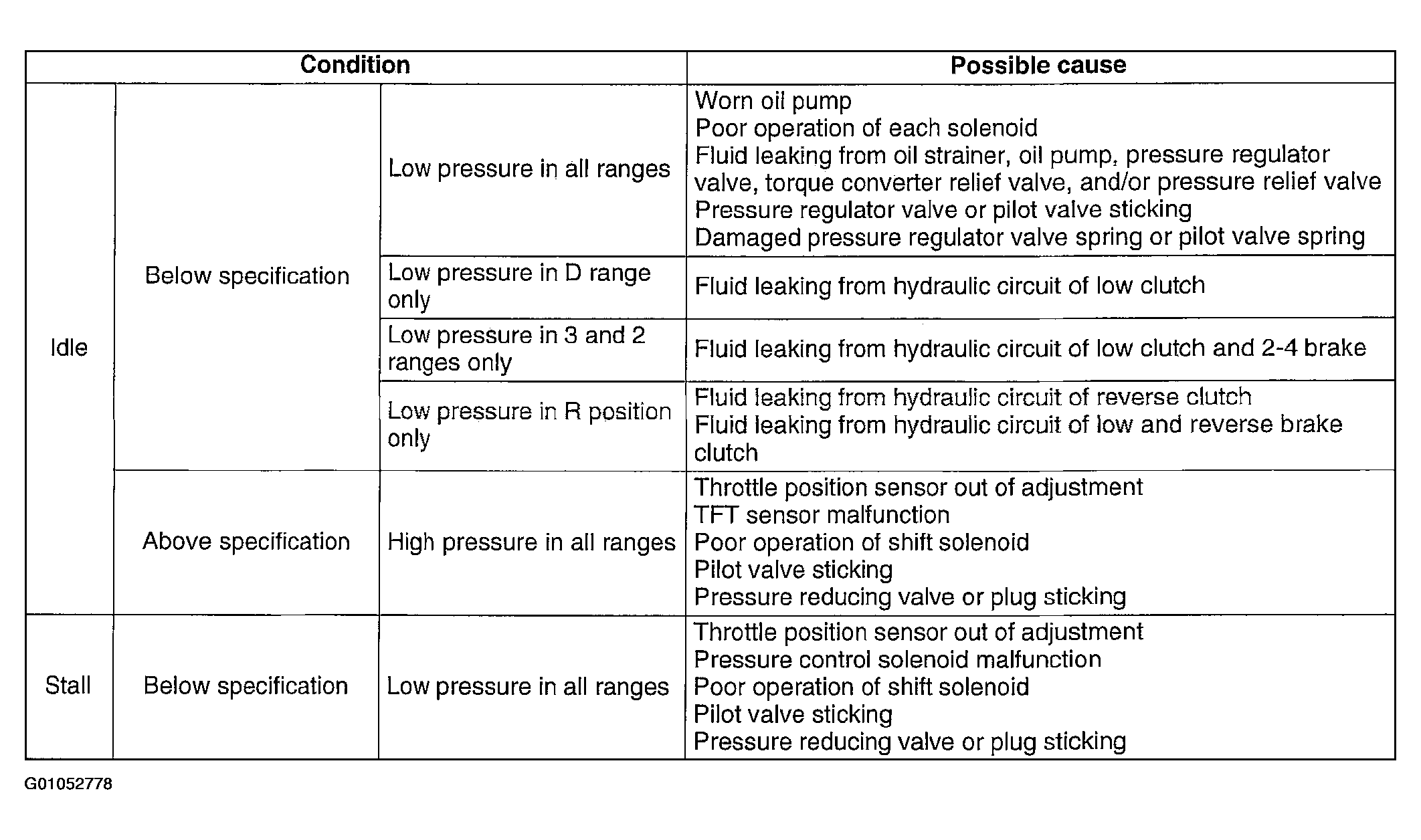

Fig 1: Evaluation Of Line Pressure Test
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
