Lower Module Removal/Installation: Notes

  1. Disconnect the negative battery cable.
  2. Remove the audio unit. (See AUDIO UNIT REMOVAL .)
  3. Remove in the order indicated in the table.
    REMOVAL ORDER OF LOWER MODULE

    Removal Order Component
    1 Cover (See Cover Removal Note .)
    2 Screw (See Screw Installation Note .)
    3 Lower module

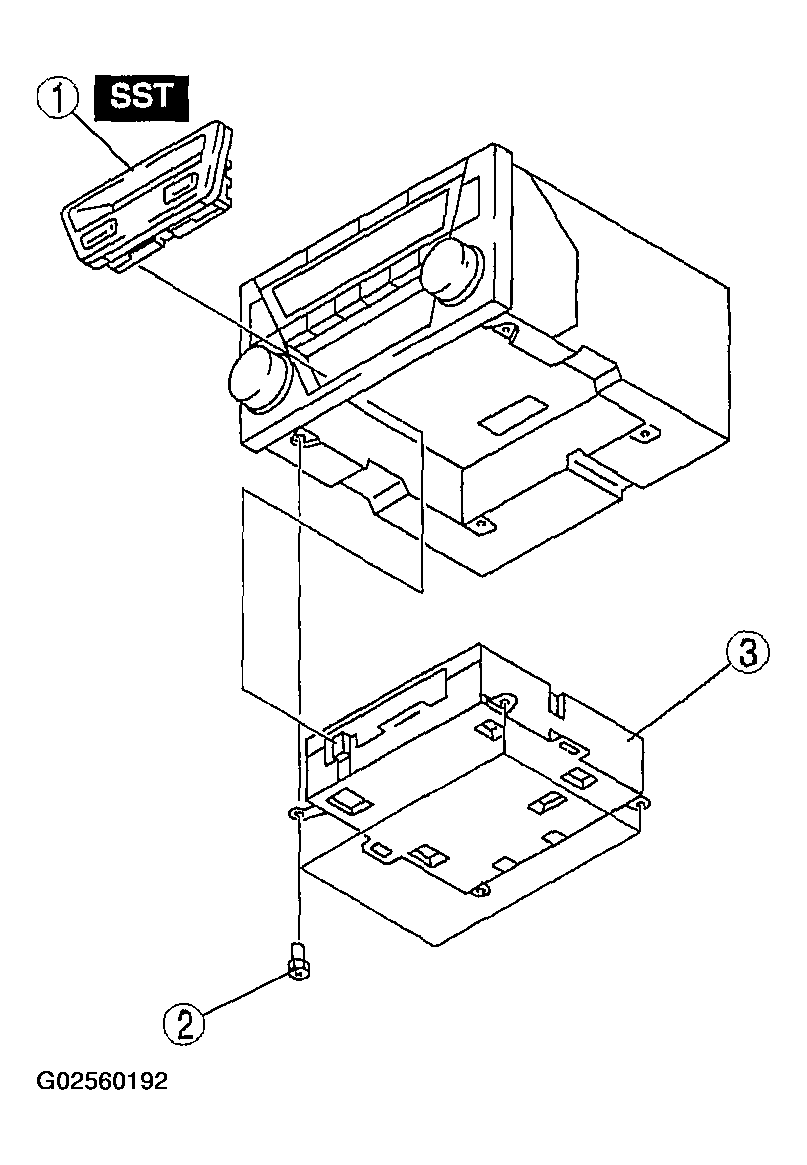

    Fig 1: Removing/Installing Lower Module
    G02560192Courtesy of MAZDA MOTORS CORP.
  4. Install in the order of removal.
