Combination Switch Connector End View
Combination Switch Connector End View

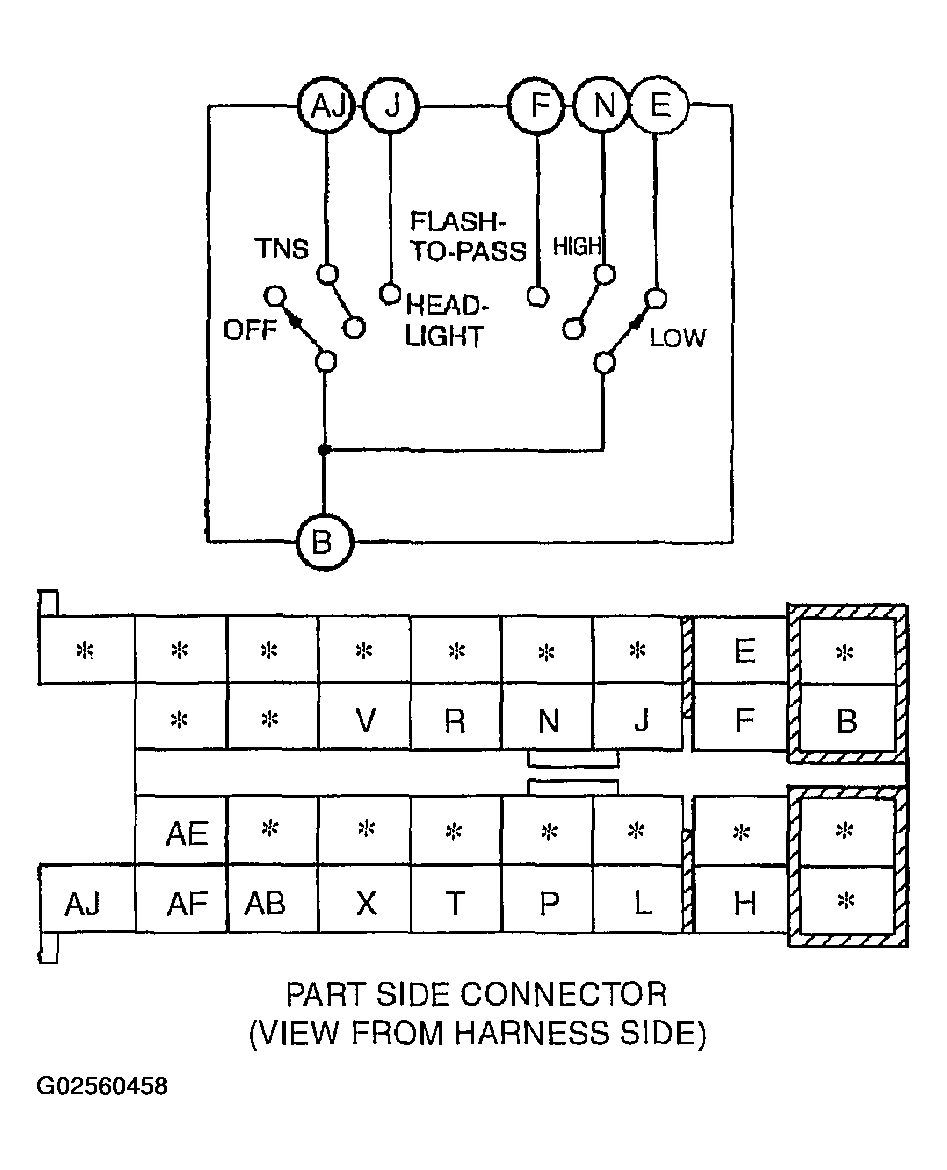

Fig 1: Combination Switch Connector End View
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
