Fuel Pump (FP) Disassembly/Assembly: Notes

Disassemble in the order indicated in the illustration.

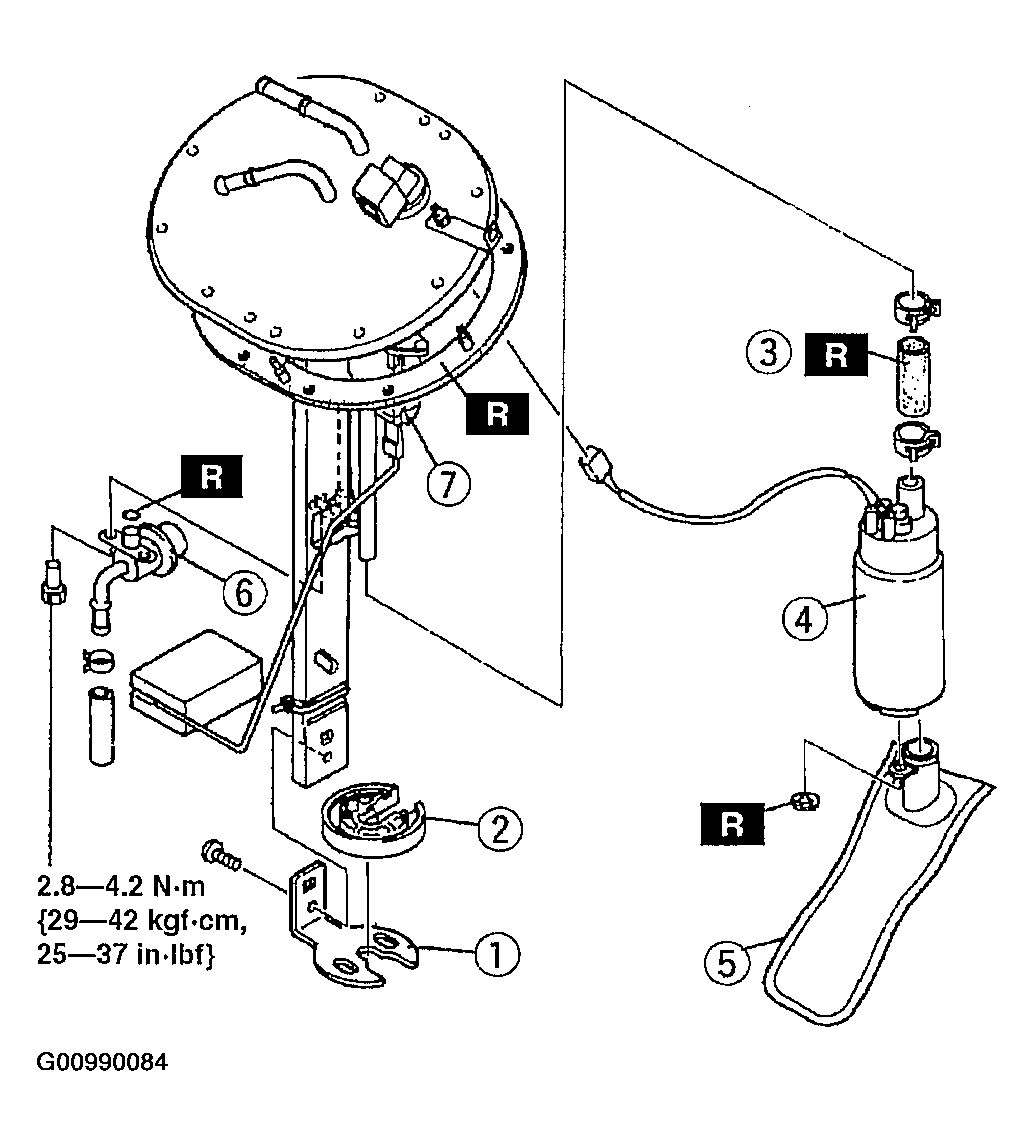

Fig 1: Removing Order Of Fuel Pump (FP) - [BP, BP With TC]
Courtesy of MAZDA MOTORS CORP.

Fig 2: Disassembling/Assembling Fuel Pump (FP) - [BP, BP With TC]
Courtesy of MAZDA MOTORS CORP.
Assemble in the reverse order of disassembly.
