Fuel System Location Index

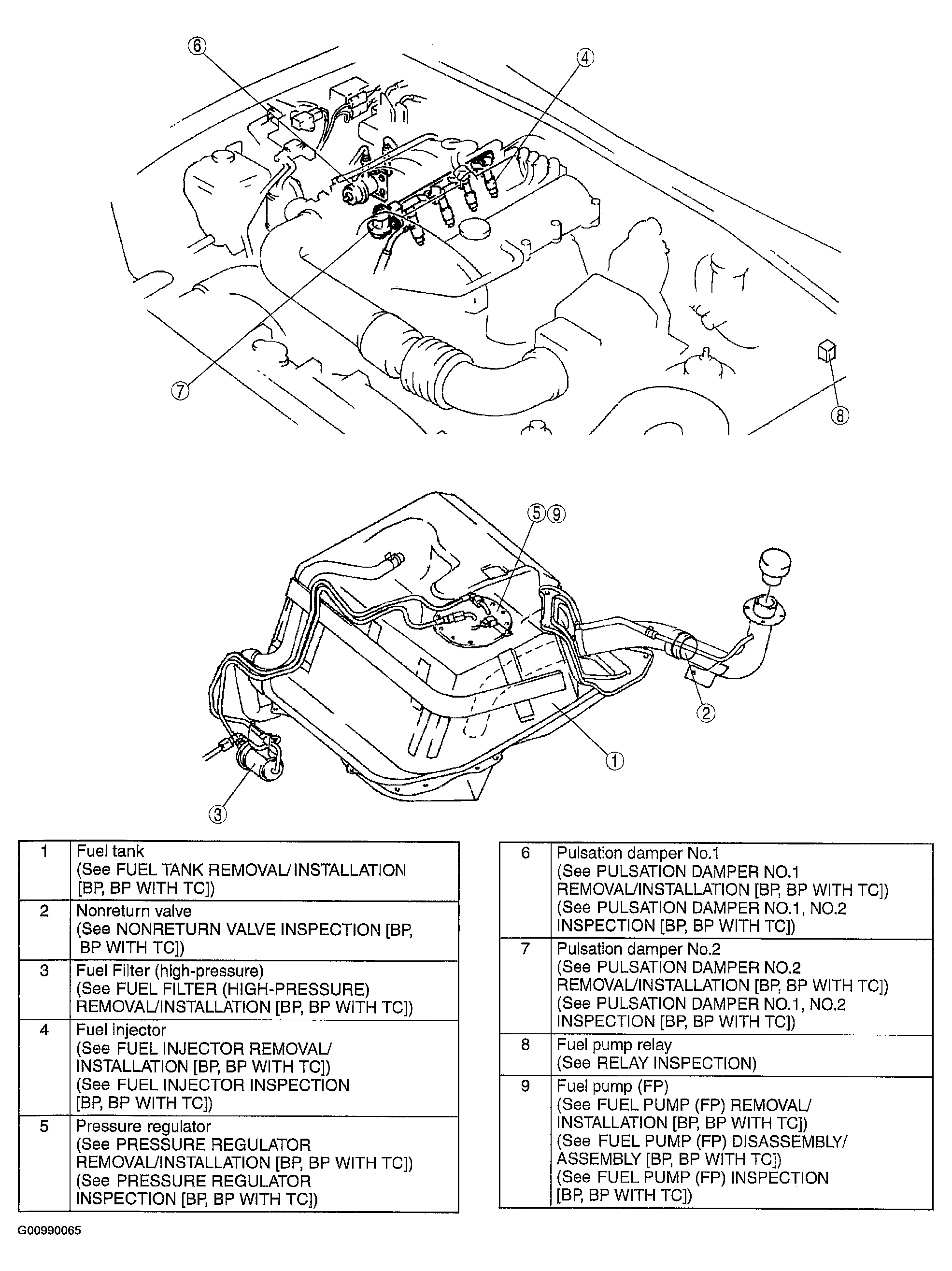

Fig 1: Locating Fuel System Components [BP, BP With TC]
G00990065Courtesy of MAZDA MOTORS CORP.
