NONRETURN Valve Inspection

Remove the nonreturn valve. See FUEL TANK REMOVAL/INSTALLATION .
Verify that the nonreturn valve operates under its own weight.
- If the valve does not operate, replace the nonreturn valve.

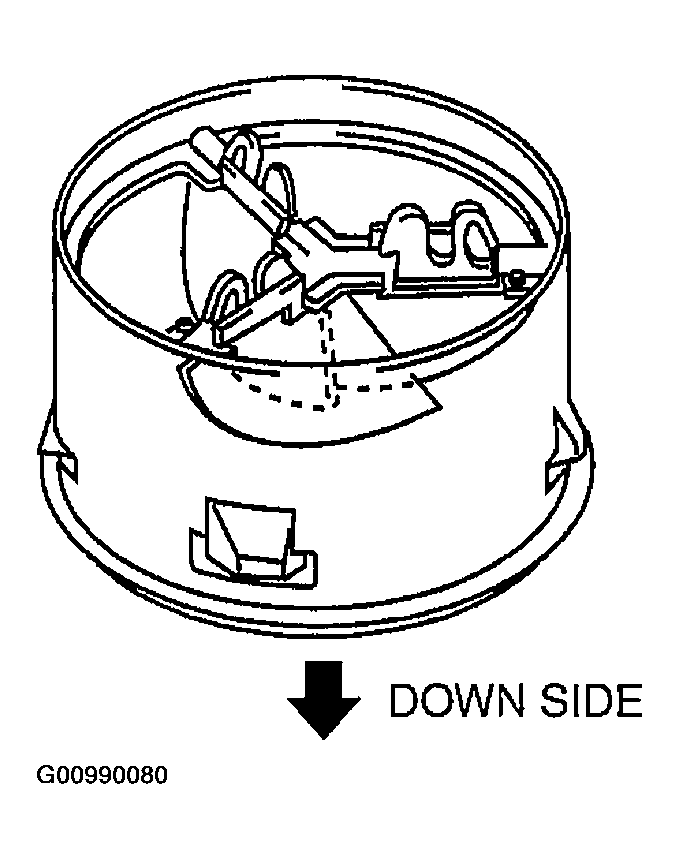

Fig 1: Inspecting Non-Return Valve [BP, BP With TC]
Courtesy of MAZDA MOTORS CORP.
