Control System Wiring Diagram [BP]
Control System Wiring Diagram [BP]

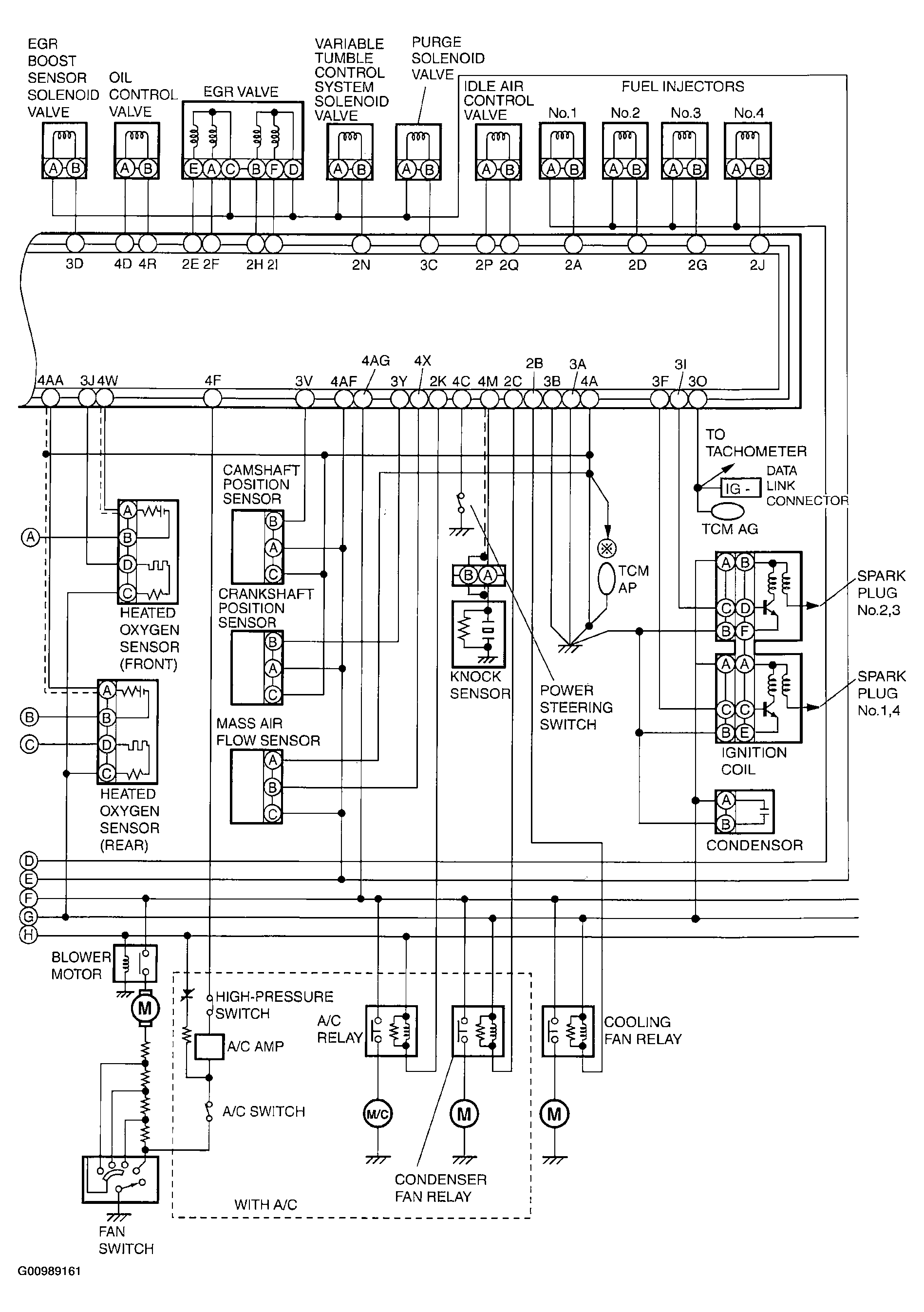

Fig 1: Control System Wiring Diagram - BP (1 Of 2)
Courtesy of MAZDA MOTORS CORP.

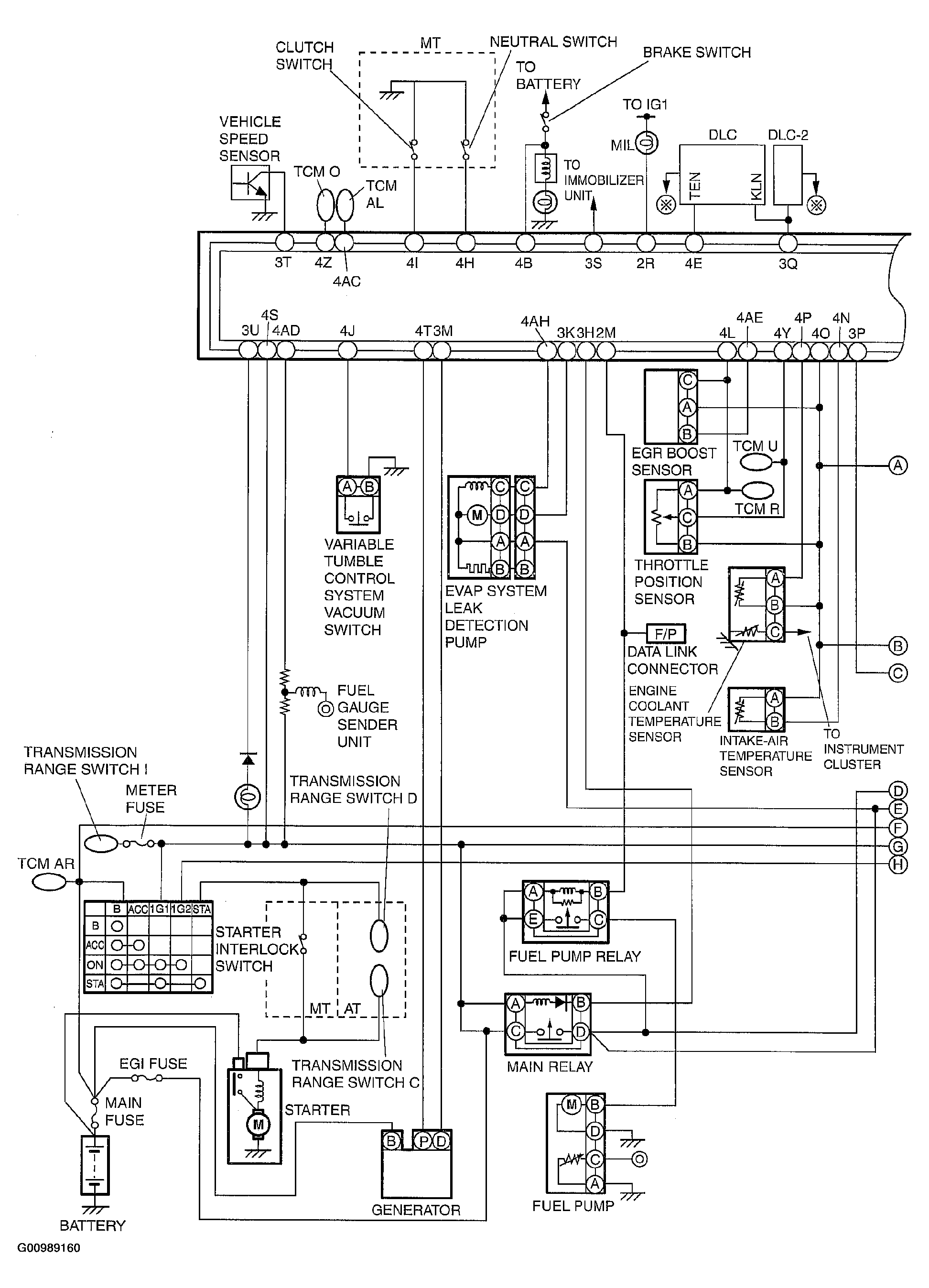

Fig 2: Control System Wiring Diagram - BP (2 Of 2)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
