DTC P0116: ECT Circuit Range/Performance Problem: Notes

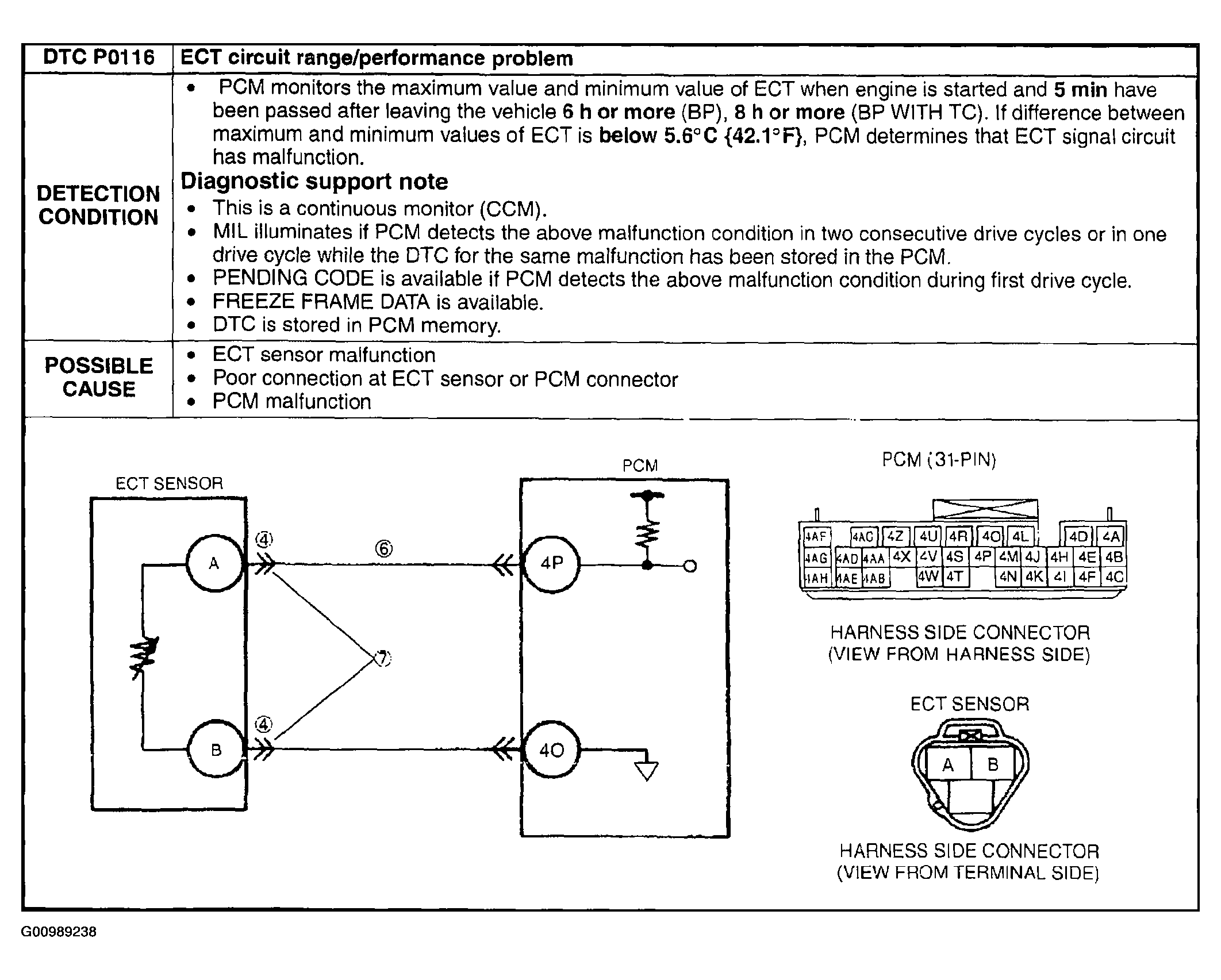

Fig 1: Possible Causes - DTC P0116 [BP, BP With TC]
G00989238Courtesy of MAZDA MOTORS CORP.
