DTC P0118: ECT Circuit High Input
›
Diagnostic Procedure
Diagnostic Procedure

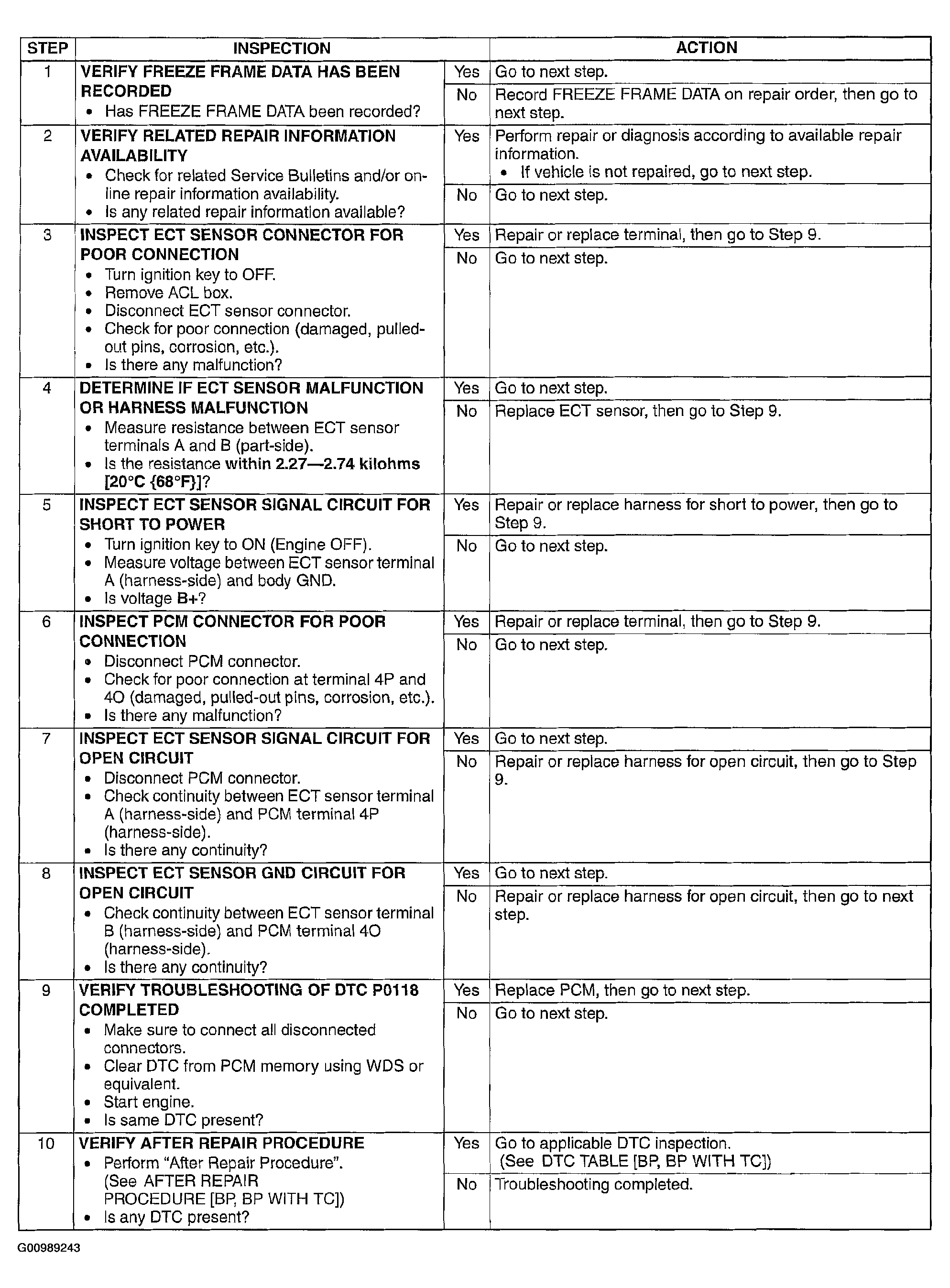

Fig 1: Diagnostic Procedure - DTC P0118 [BP, BP With TC]
Courtesy of MAZDA MOTORS CORP.
