On-Board Diagnostic (Engine Control System BP, BP With TC]
›
DTC P0122: TP Circuit Low Input
›
Diagnostic Procedure
Diagnostic Procedure

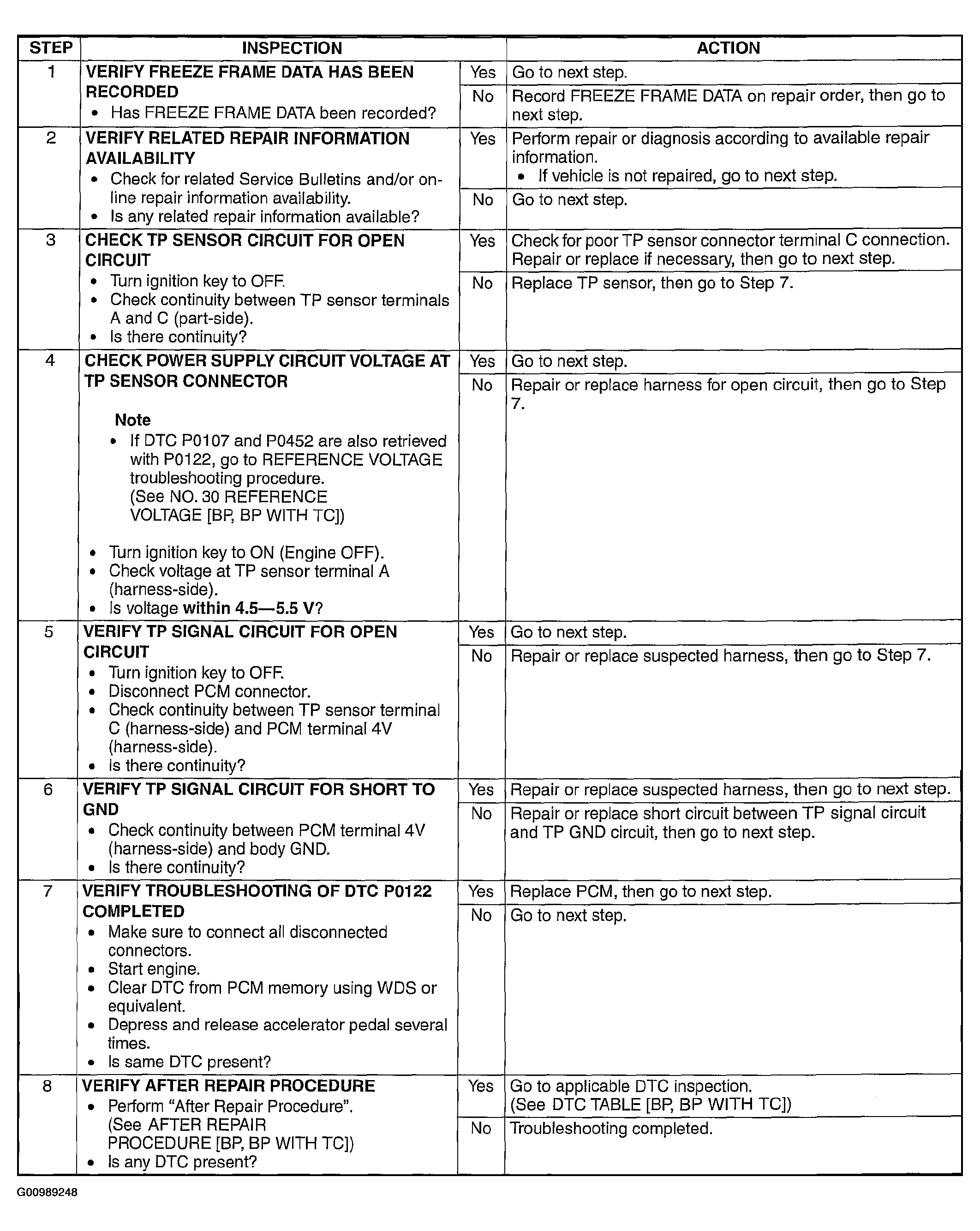

Fig 1: Diagnostic Procedure - DTC P0122 [BP, BP With TC]
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
