On-Board Diagnostic (Engine Control System BP, BP With TC]
›
DTC P0300: Random Misfire Detection
›
Diagnostic Procedure
Diagnostic Procedure

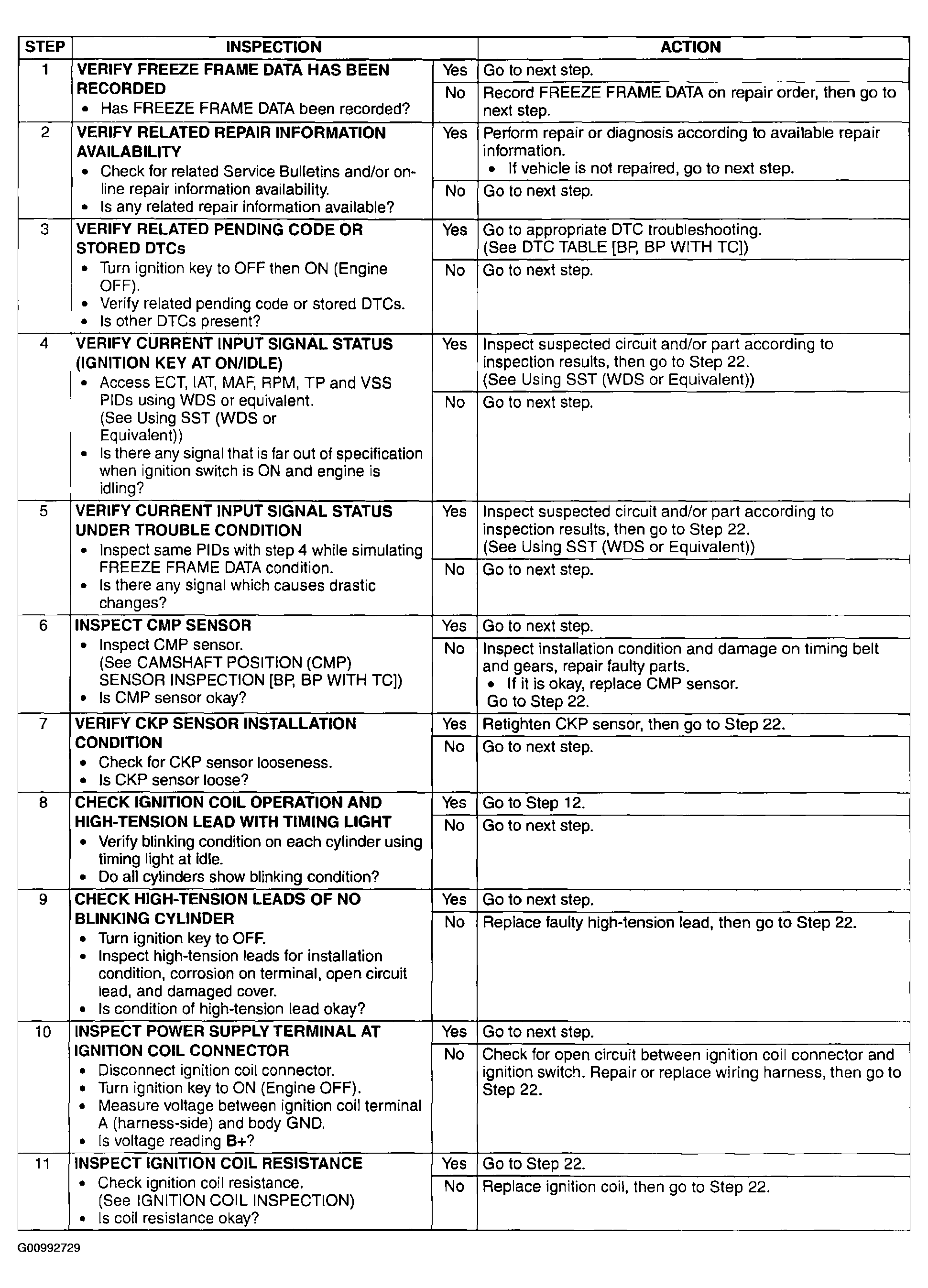

Fig 1: Diagnostic Procedure - DTC P0300 [BP, BP With TC] (Steps 1-11)
Courtesy of MAZDA MOTORS CORP.

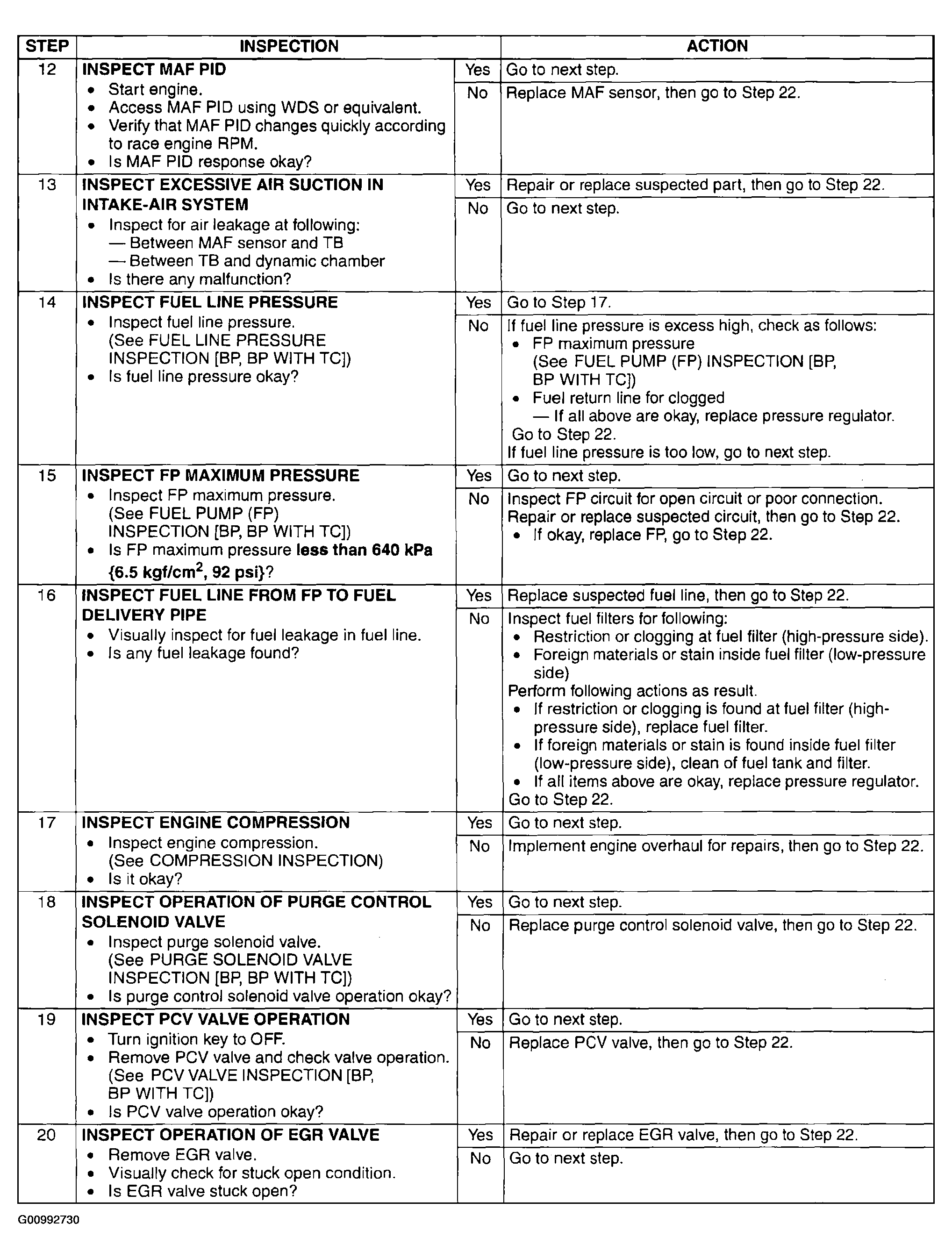

Fig 2: Diagnostic Procedure - DTC P0300 [BP, BP With TC] (Steps 12-20)
Courtesy of MAZDA MOTORS CORP.

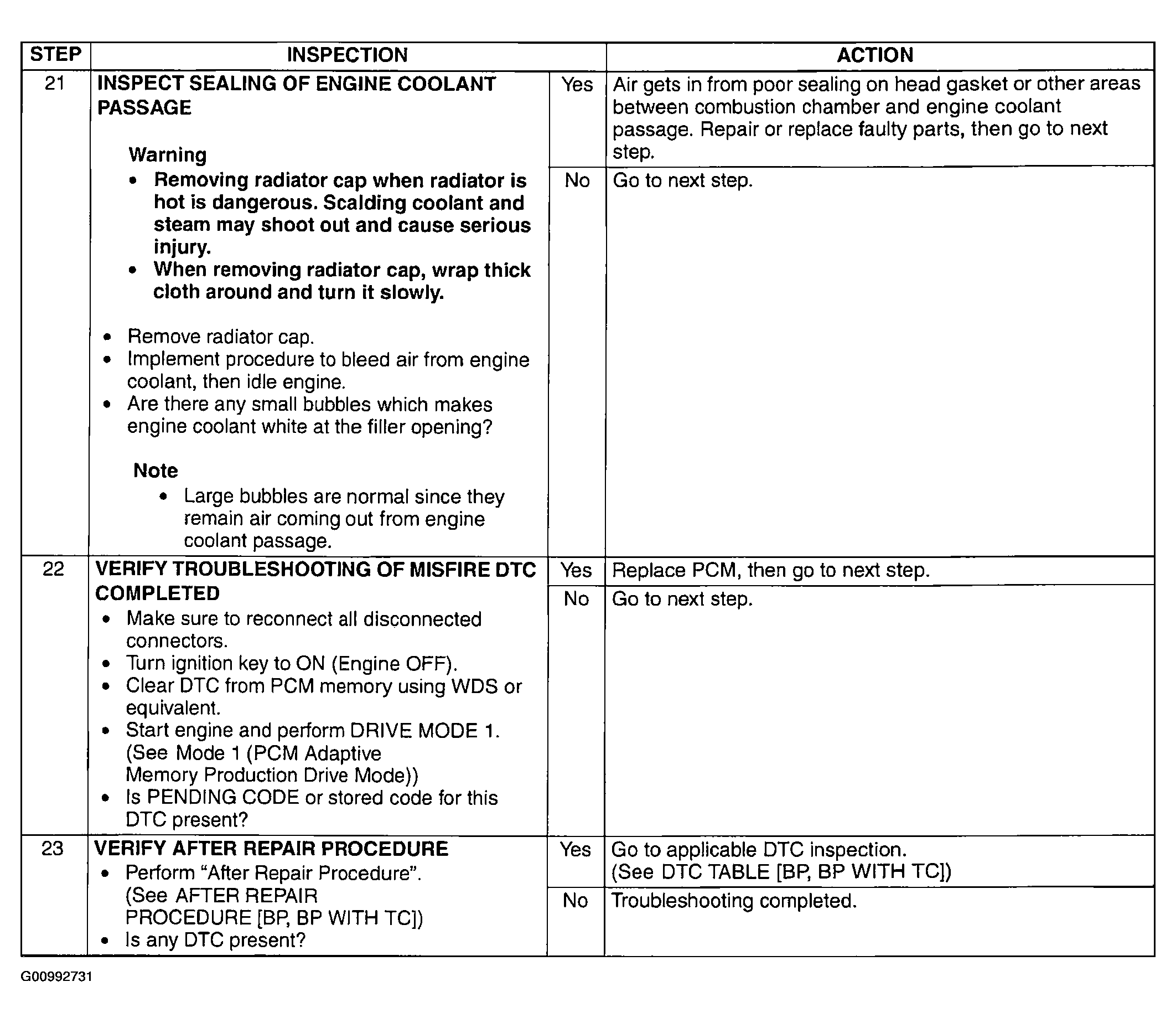

Fig 3: Diagnostic Procedure - DTC P0300 [BP, BP With TC] (Steps 21-23)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
