Home › Mazda › 2004 › MX-5 Miata Base, Automatic › Repair and Diagnosis › Engine Performance › System › On-Board Diagnostic (Engine Control System BP, BP With TC] › DTC P0335: CKP Sensor Circuit Malfunction › Notes

DTC P0335: CKP Sensor Circuit Malfunction: Notes

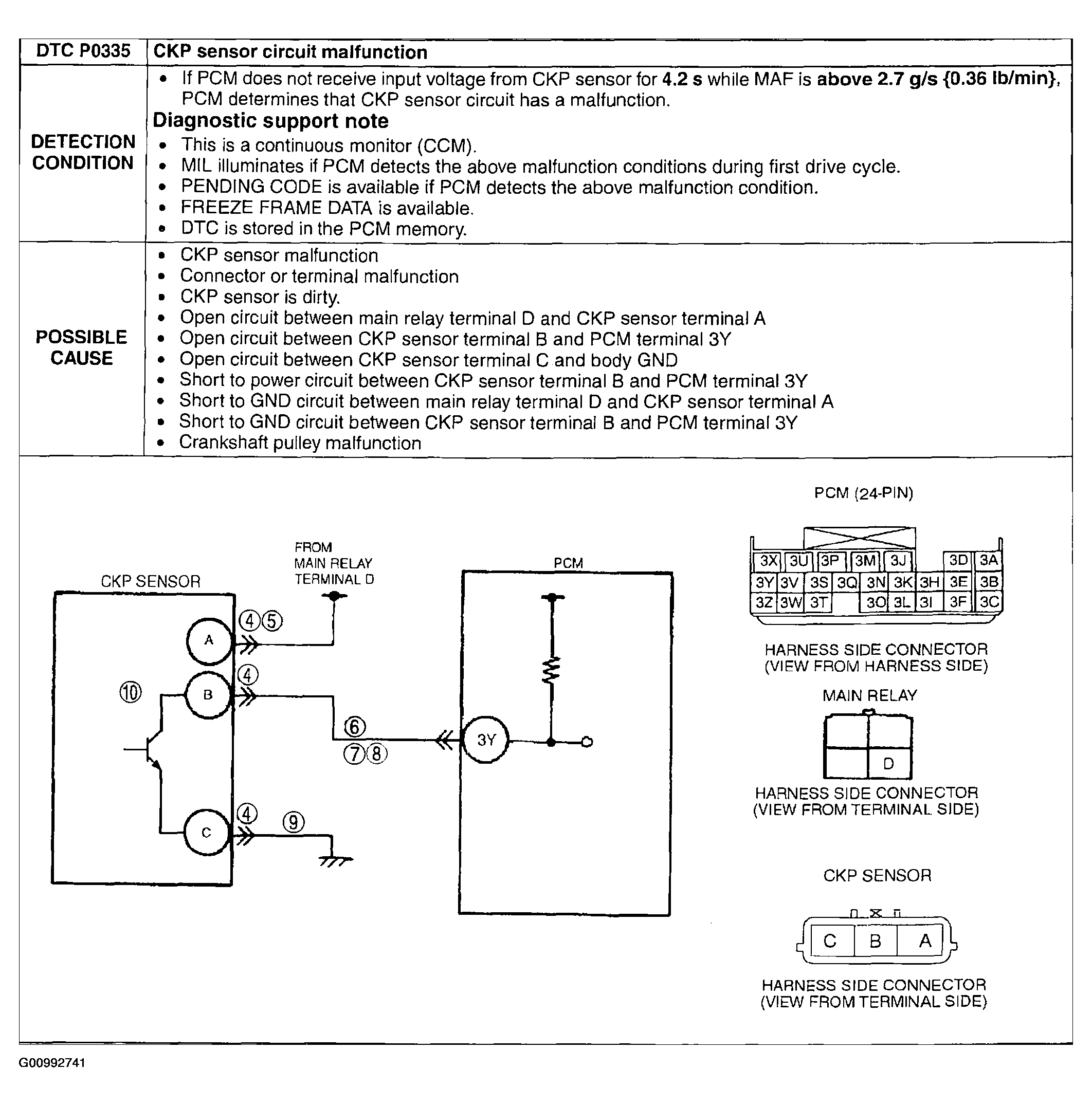

Fig 1: Possible Causes - DTC P0335 [BP, BP With TC]
G00992741Courtesy of MAZDA MOTORS CORP.
