DTC P0340: CMP Sensor Circuit Malfunction: Notes

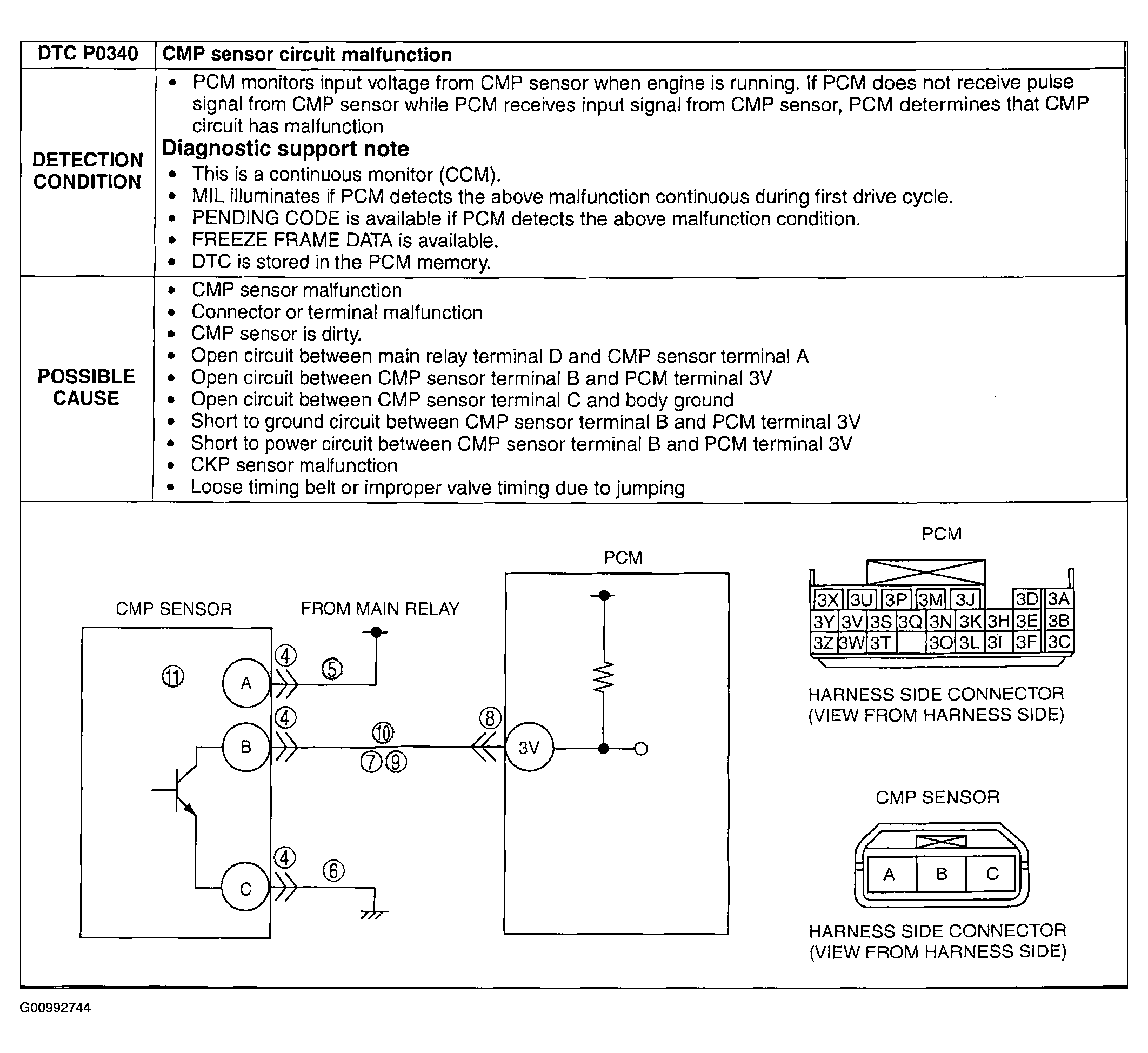

Fig 1: Possible Causes - DTC P0340 [BP, BP With TC]
G00992744Courtesy of MAZDA MOTORS CORP.
