Symptom Troubleshooting (Engine Control System BP, BP With TC]
›
No. 17 Cooling System Concerns-Overheating
›
Notes
No. 17 Cooling System Concerns-Overheating: Notes

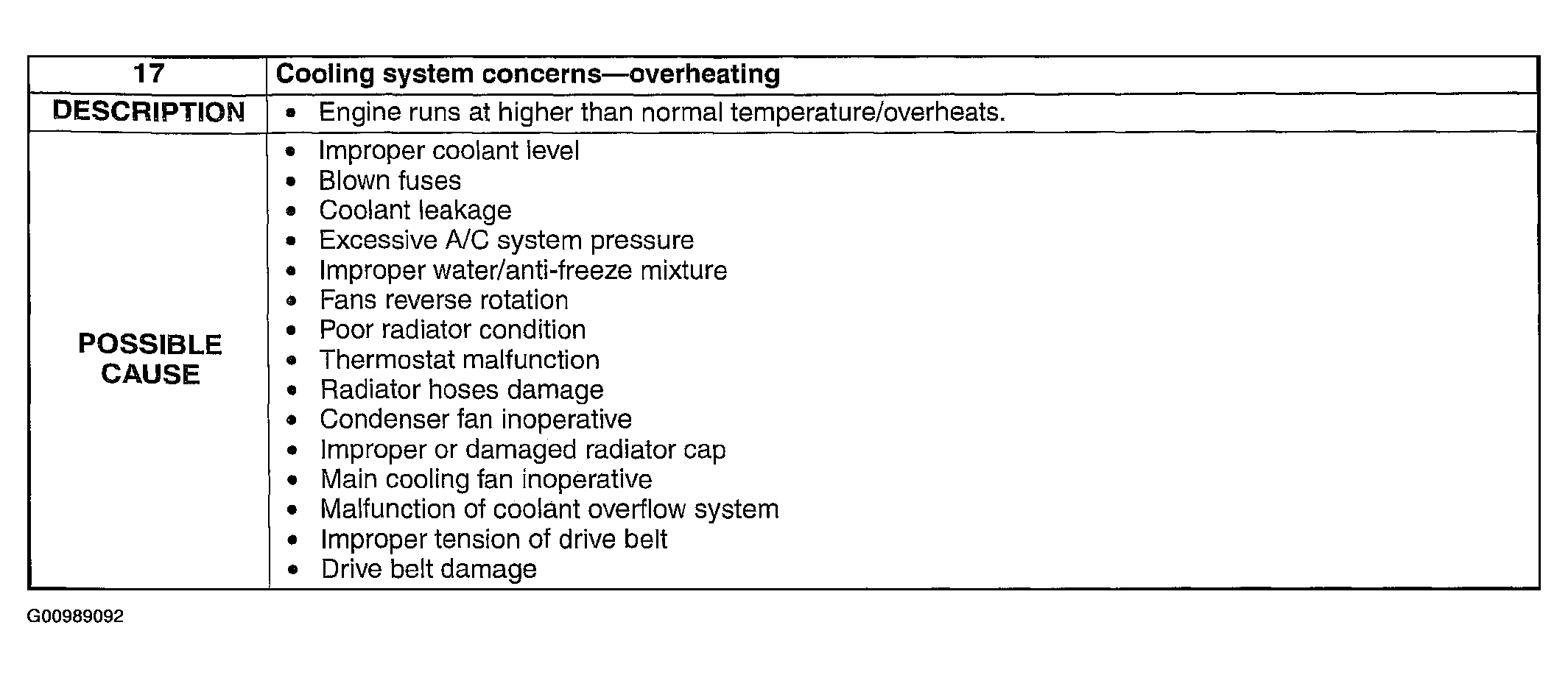

Fig 1: Possible Causes - No. 17 Cooling System Concerns-Overheating [BP, BP With TC]
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
