Selector Lever Disassembly/Assembly: Notes

  1. Disassemble in the order indicated in the table.
  2. Assemble in the reverse order of disassembly.

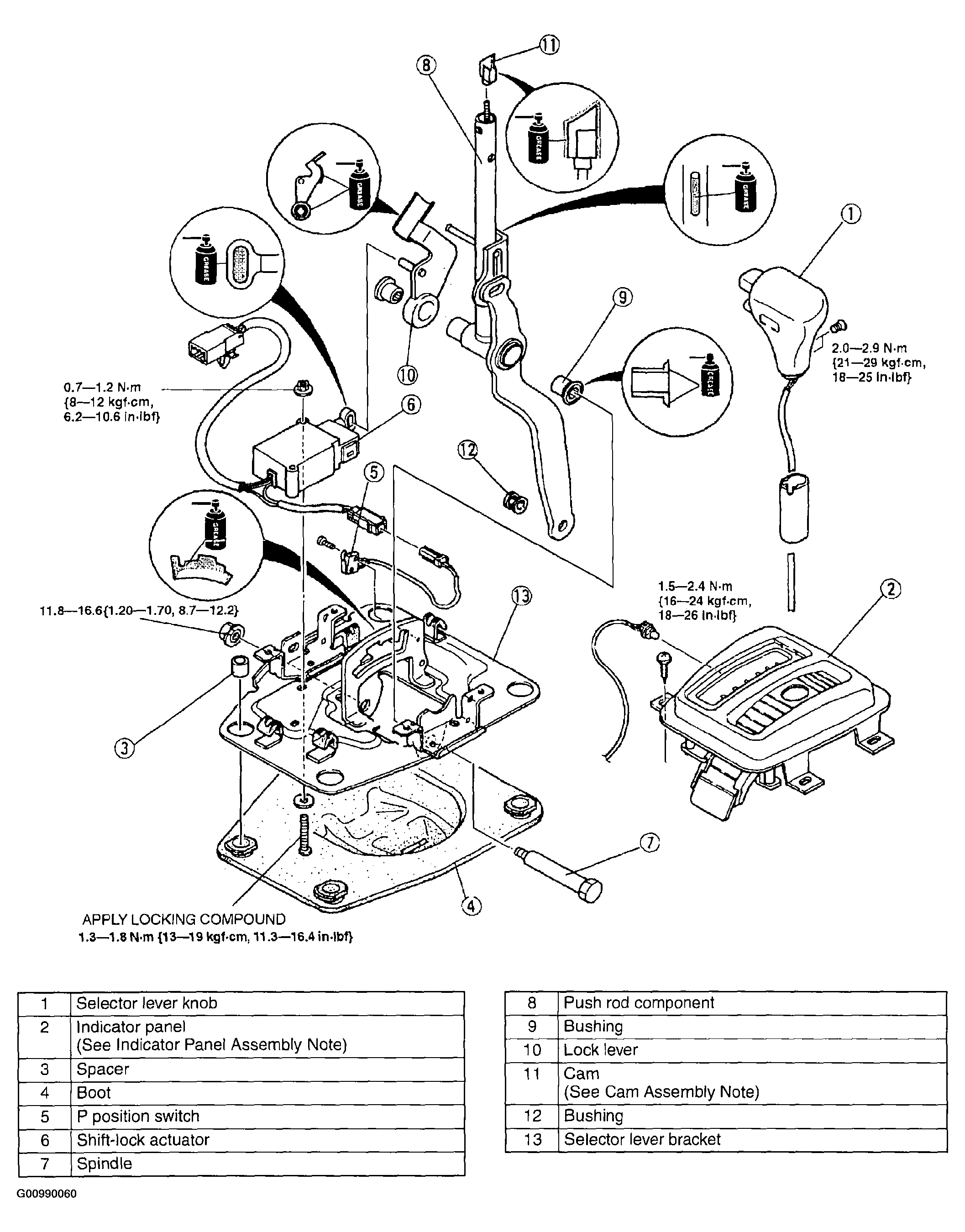

    Fig 1: Disassembling/Assembling Selector Lever
    G00990060Courtesy of MAZDA MOTORS CORP.
