Combination Switch Disassembly/Assembly: Notes

Disassemble in the order indicated in the table.

DISASSEMBLING ORDER OF COMBINATION SWITCH

Disassembling Order	Component
1	Cancel cam
2	Spring
3	Wiper unit (See Wiper Unit Assembly Note )
4	Wiper lever
5	Light unit
6	Light lever

Assemble in the reverse order of disassembly.

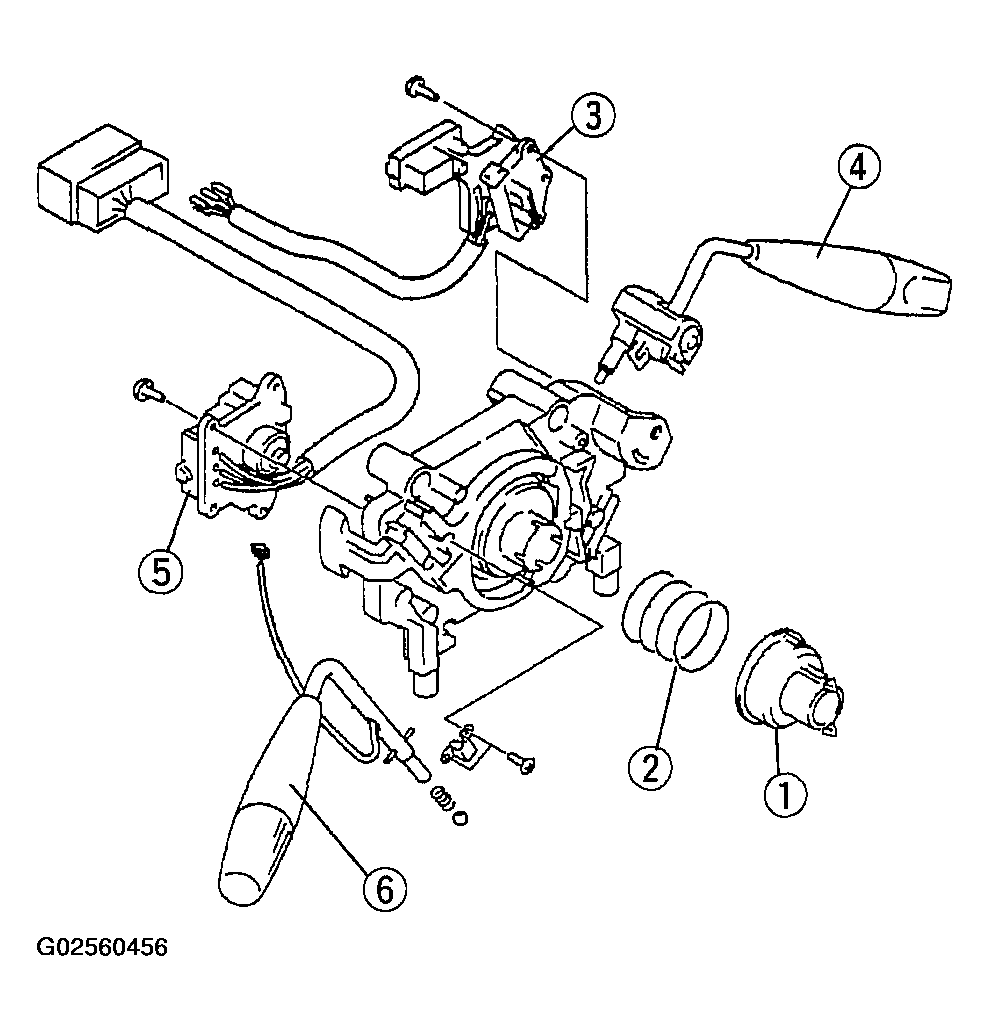

Fig 1: Disassembling/Assembling Combination Switch
Courtesy of MAZDA MOTORS CORP.
