Door Lock Control Module Connector End View

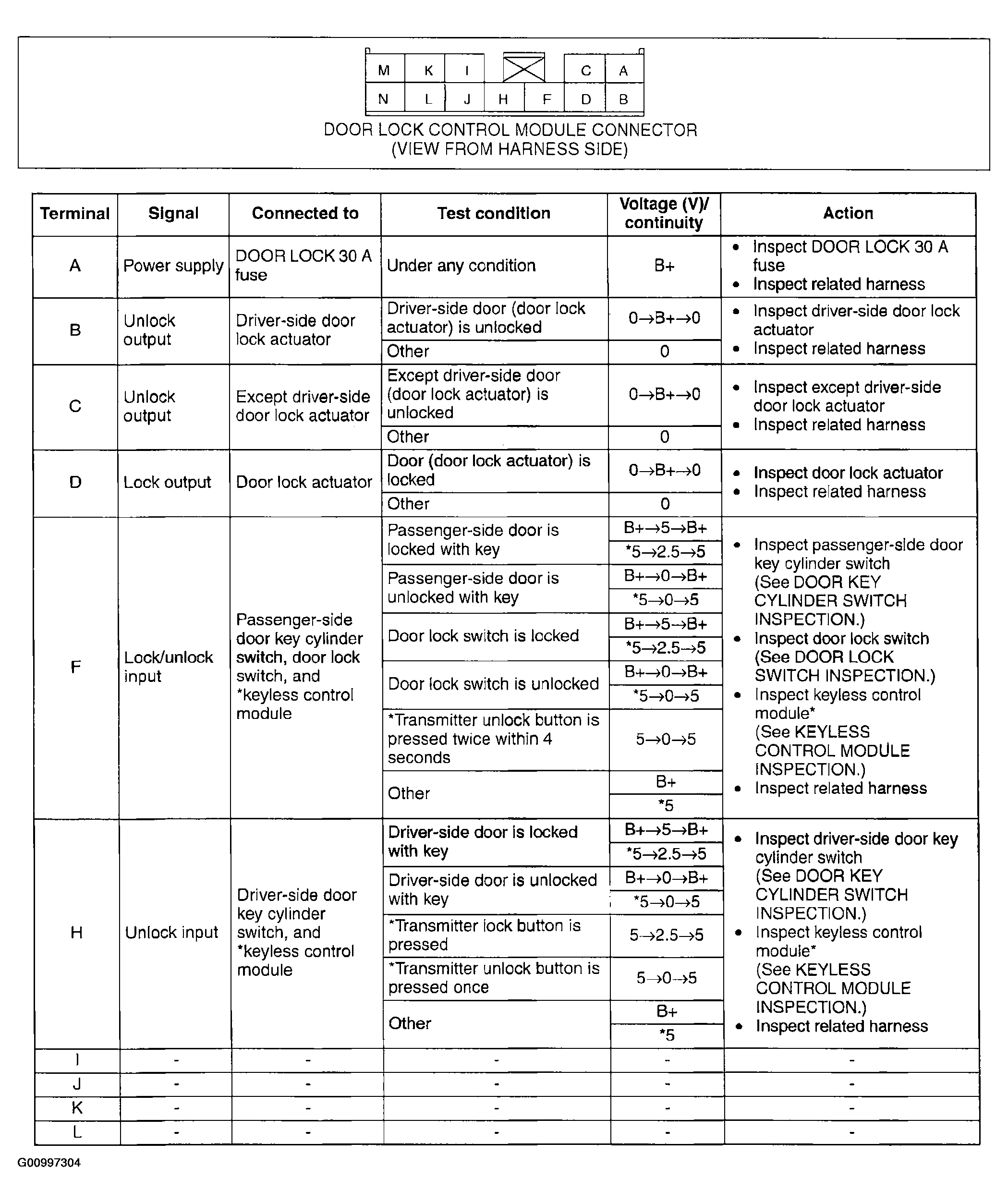

Fig 1: Door Lock Control Module Connector End View
G00997304Courtesy of MAZDA MOTORS CORP.
