Actuator Cable Installation

Install the grommet to the dash lower panel.

Fig 1: Installing Grommet To Dash Lower Panel
Courtesy of MAZDA MOTORS CORP.
Install the actuator cable to the accelerator pedal.

Fig 2: Installing Bush To Accelerator Pedal
Courtesy of MAZDA MOTORS CORP.
Slide the lock lever in the direction shown by the arrow to unlock the adjuster.

Fig 3: Identifying Lock Lever
Courtesy of MAZDA MOTORS CORP.
Turn the ratchet ring to release lock in the direction shown by the arrow.

Fig 4: Identifying Ratchet Ring
Courtesy of MAZDA MOTORS CORP.

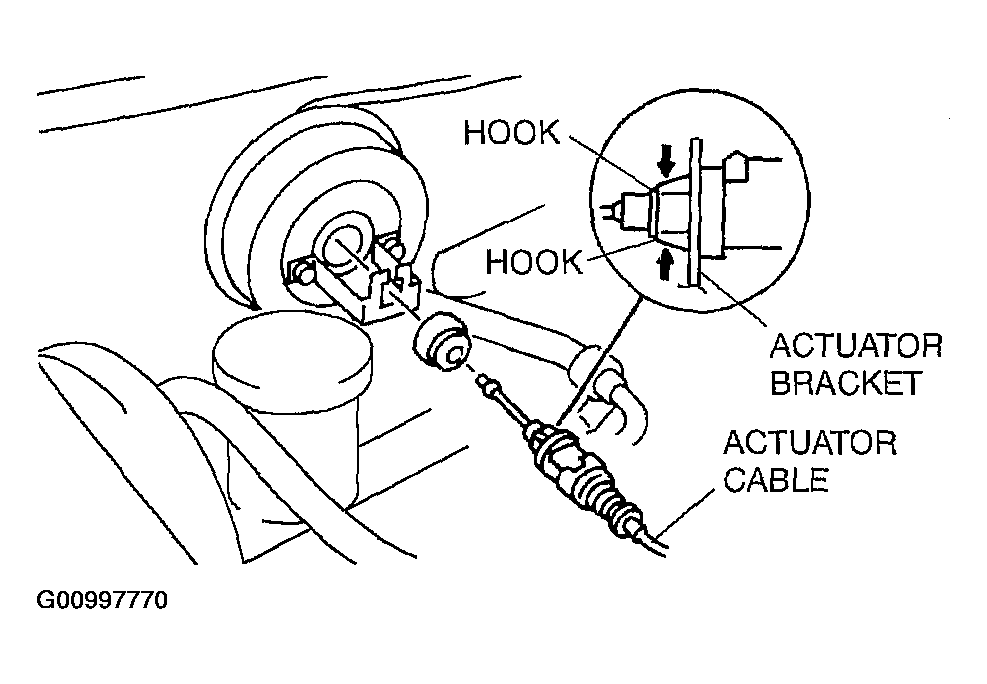

Insert the grommet into the actuator bracket.

Fig 5: Inserting Grommet Into Actuator Bracket
Courtesy of MAZDA MOTORS CORP.
To adjust the free play, push or pull the actuator cable directly behind the spring two times .

Fig 6: Adjusting Free Play Of Actuator Cable
Courtesy of MAZDA MOTORS CORP.
Turn the ratchet ring in the direction shown by the arrow to lock it.

Fig 7: Locking Ratchet Ring
Courtesy of MAZDA MOTORS CORP.
Slide the lock lever in the direction shown by the arrow to lock the adjuster.

Fig 8: Locking Adjuster
Courtesy of MAZDA MOTORS CORP.
