Power Antenna Removal/Installation: Notes

  1. Disconnect the negative battery cable.
  2. Remove the trunk side trim (LH). (See TRUNK SIDE TRIM REMOVAL/INSTALLATION .)
  3. Remove in the order indicated in the table.
    REMOVAL ORDER OF POWER ANTENNA

    Removal Order Component
    1 Rear antenna feeder
    2 Connector
    3 Drain hose
    4 Mounting nut (See Mounting Nut Removal Note )
    5 Spacer
    6 Nut
    7 Power antenna

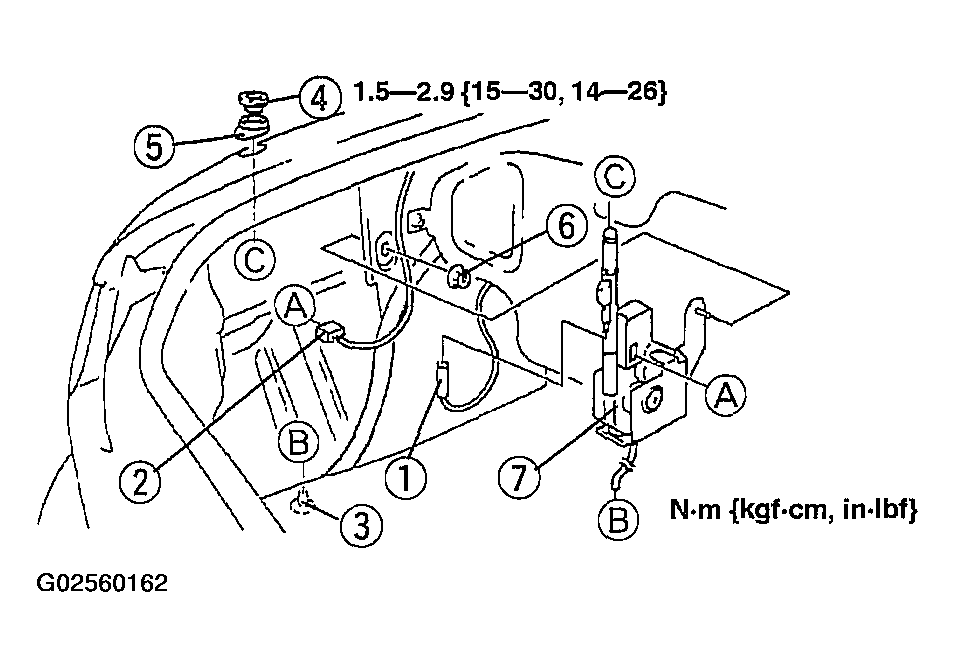

    Fig 1: Removing/Installing Power Antenna
    G02560162Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
