Coil Installation Note

  1. Install the hook 1 to the steering lock.
  2. Install the hook 2 to the steering lock.

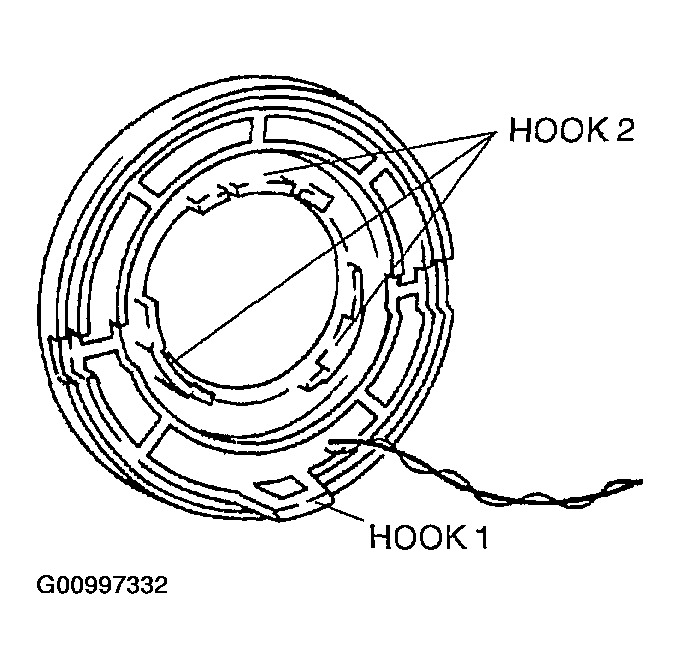

    Fig 1: Locating Steering Lock Hook
    G00997332Courtesy of MAZDA MOTORS CORP.
