Power Door Lock System Location Index

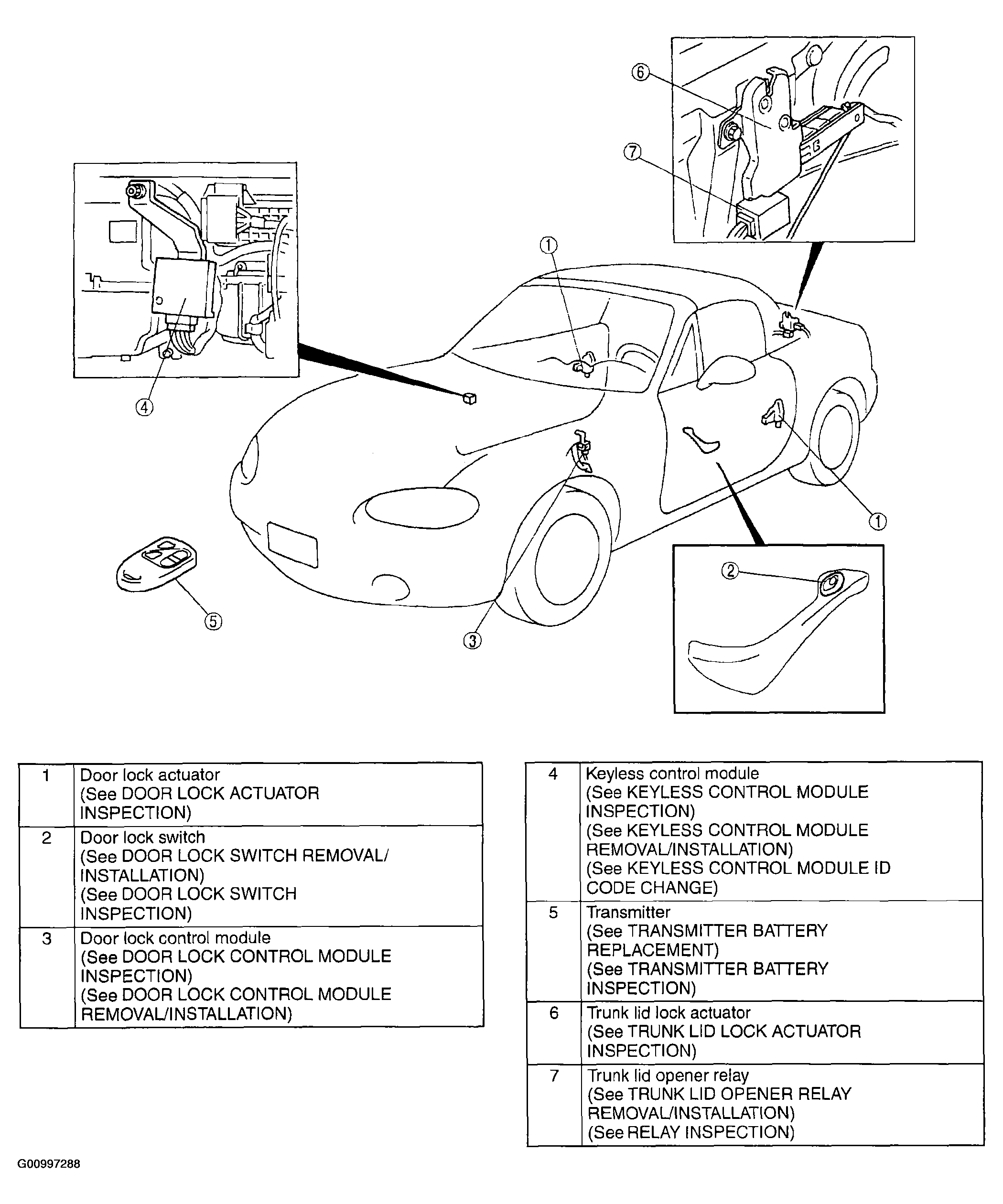

Fig 1: Power Door Lock System Location Index
G00997288Courtesy of MAZDA MOTORS CORP.
