Trunk Lid Opener Relay Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the trunk end trim panel.
  3. Remove the clip of the trunk lid opener relay using a flathead screwdriver to remove the trunk lid opener.
  4. Install in the reverse order of removal.

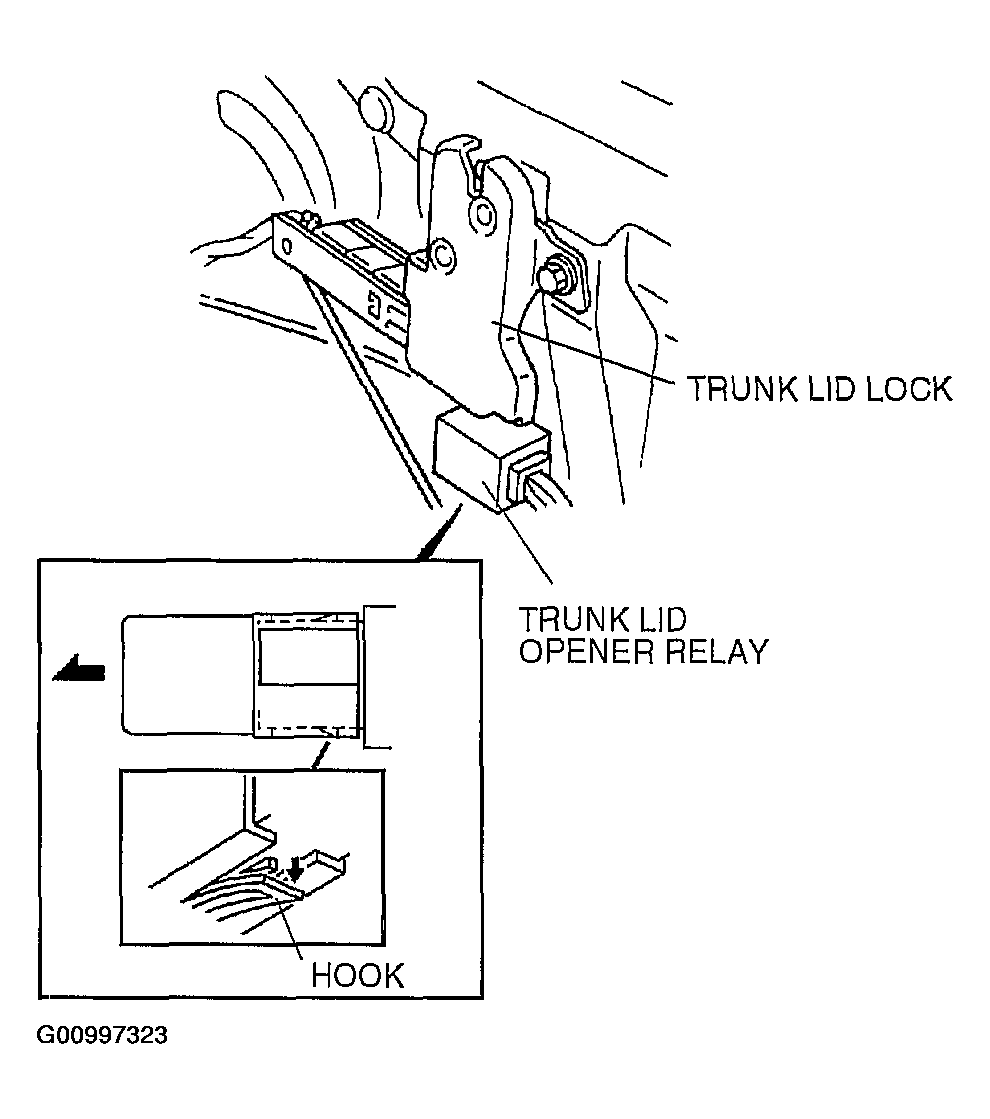

    Fig 1: Removing/Installing Trunk Lid Opener Relay
    G00997323Courtesy of MAZDA MOTORS CORP.
