Engine Control System
›
Control System Diagram [BP]
Control System Diagram [BP]

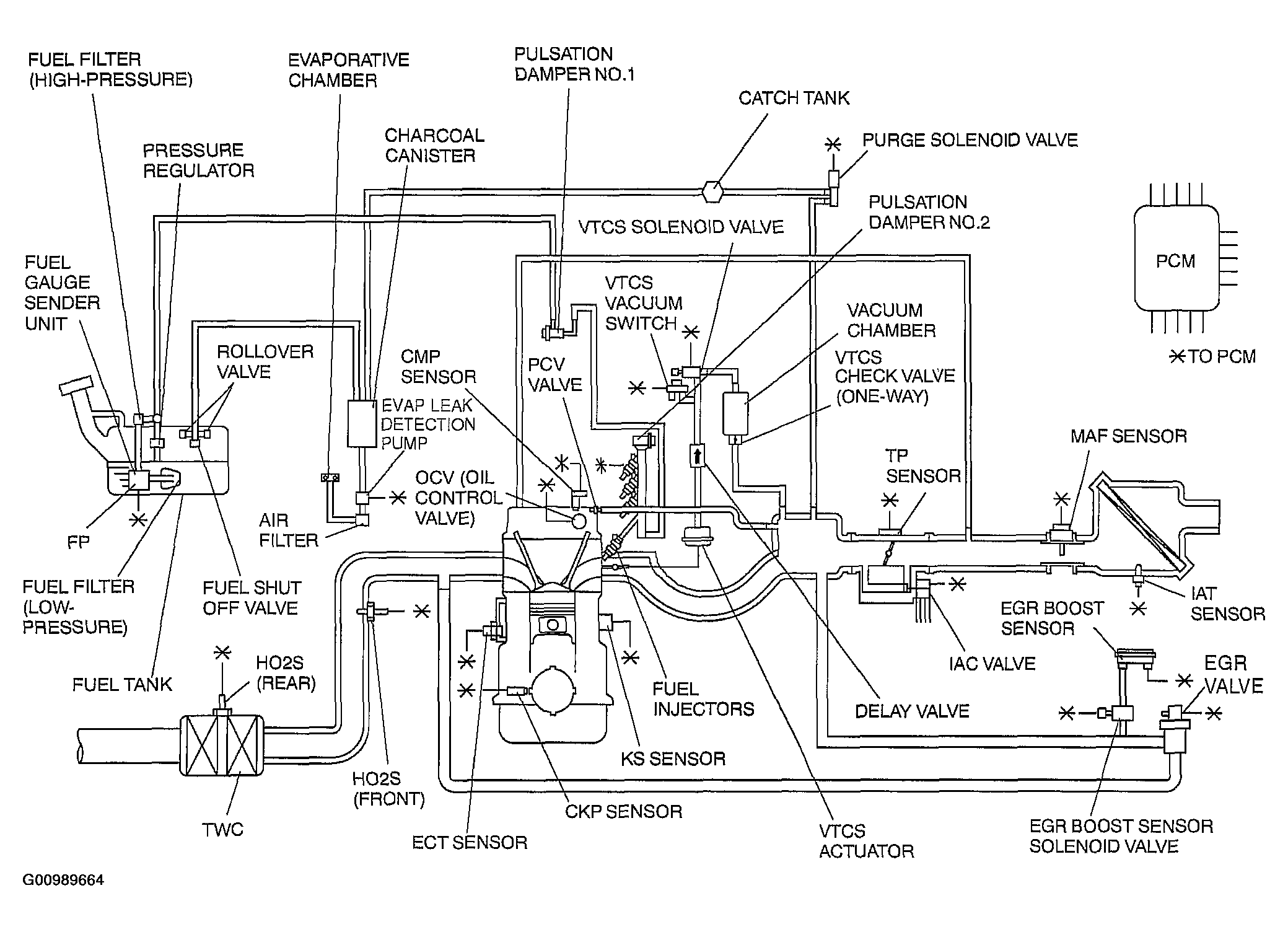

Fig 1: Identifying Control System Diagram [BP]
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
