Plate Removal/Installation

Remove the drive belt.
Remove the crankshaft pulley.
Remove the plate.

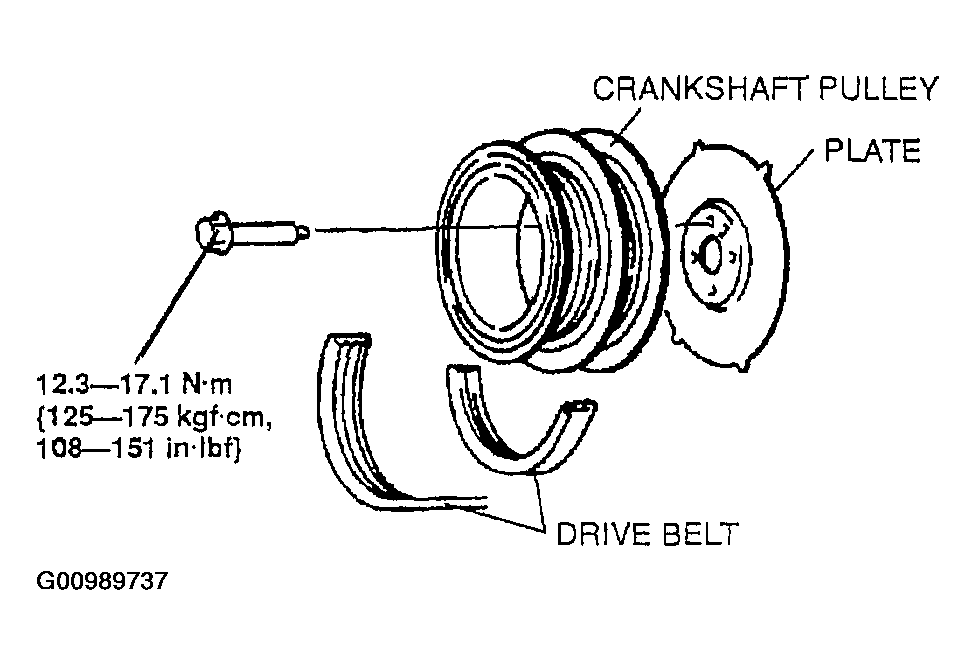

Fig 1: Removing/Installing Crankshaft pulley & Plate [BP, BP With TC]
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
NOTE:
- Adjust the drive belt when installing the drive belt. See DRIVE BELT ADJUSTMENT .
