DTC P0117: ECT Circuit Low Input: Notes

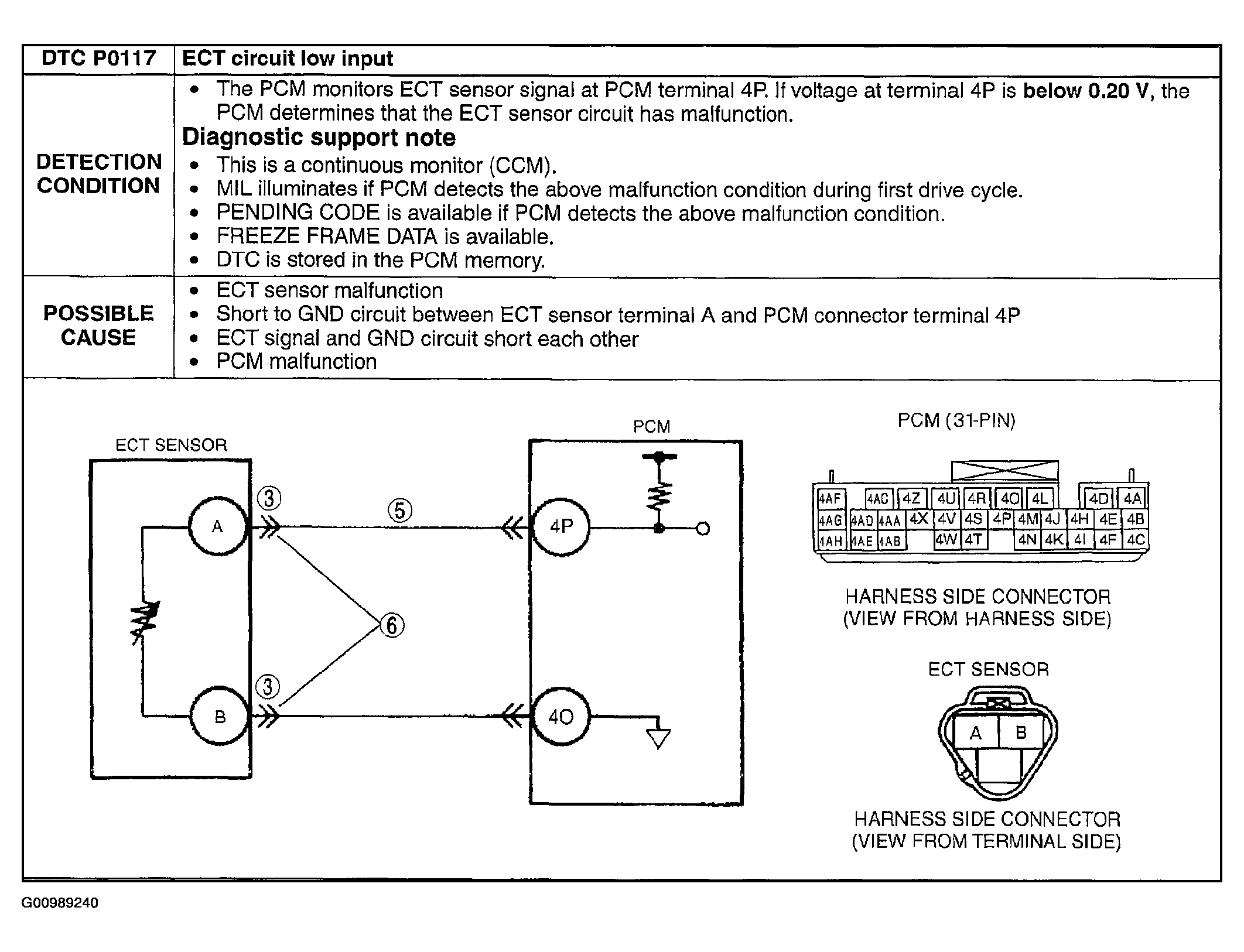

Fig 1: Possible Causes - DTC P0117 [BP, BP With TC]
G00989240Courtesy of MAZDA MOTORS CORP.
