DTC P2009: VTCS Solenoid Valve Circuit Low Input: Notes

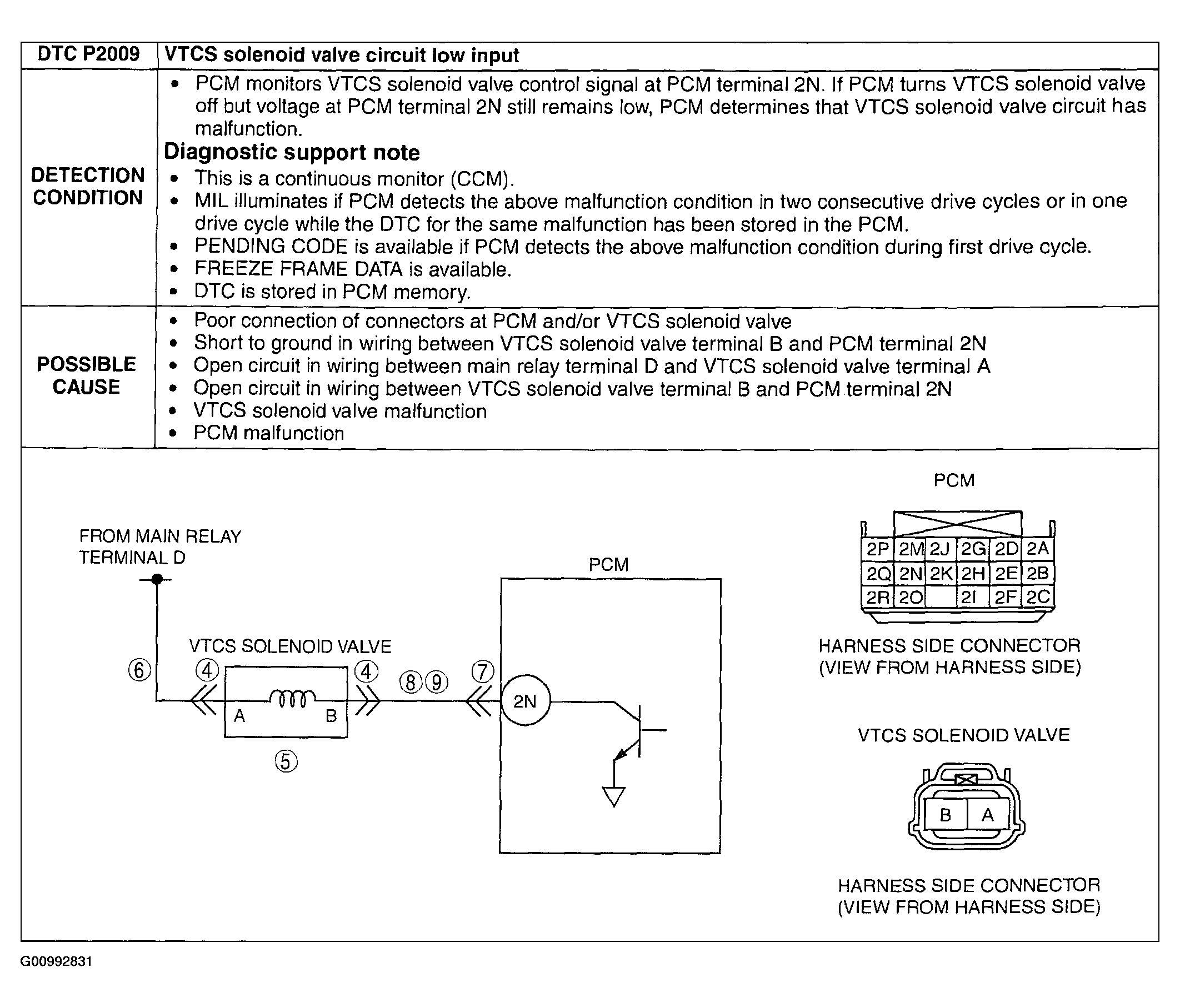

Fig 1: Possible Causes - DTC P2009 [BP, BP With TC]
G00992831Courtesy of MAZDA MOTORS CORP.
