DTC P2196: Rear Ho2S Signal Stuck Rich: Notes

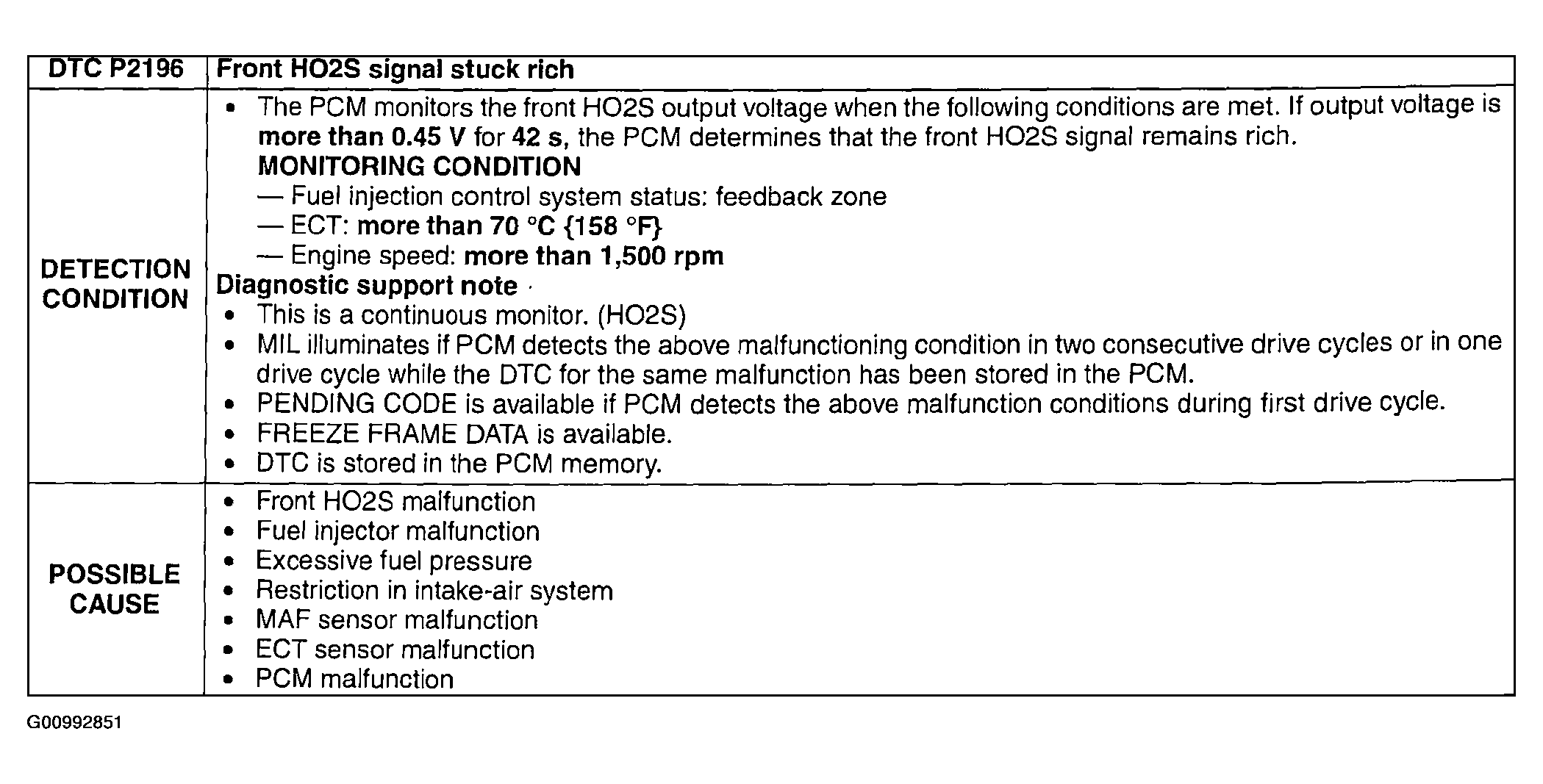

Fig 1: Possible Causes - DTC P2196 [BP, BP With TC]
G00992851Courtesy of MAZDA MOTORS CORP.
